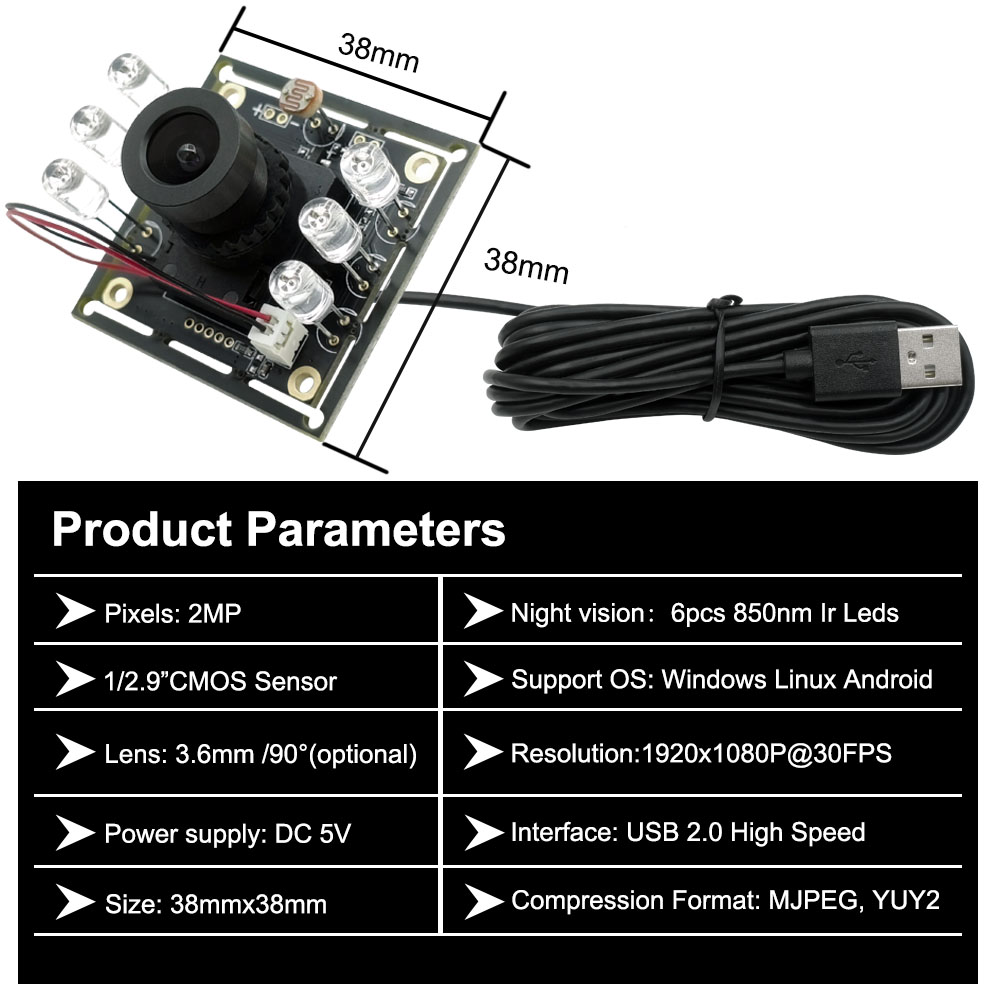

Technical Specifications
| Specification | Details |
|---|---|
| Sensor | 1/2.9″CMOS |
| Resolution | 2MP (1920×1080 @30fps) |
| Compression Format | MJPG/YUV2 |
| Interface | USB 2.0 |
| Operating Voltage | DC 5V |

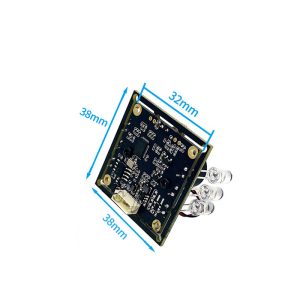

| Module size | 38mm×38mm |

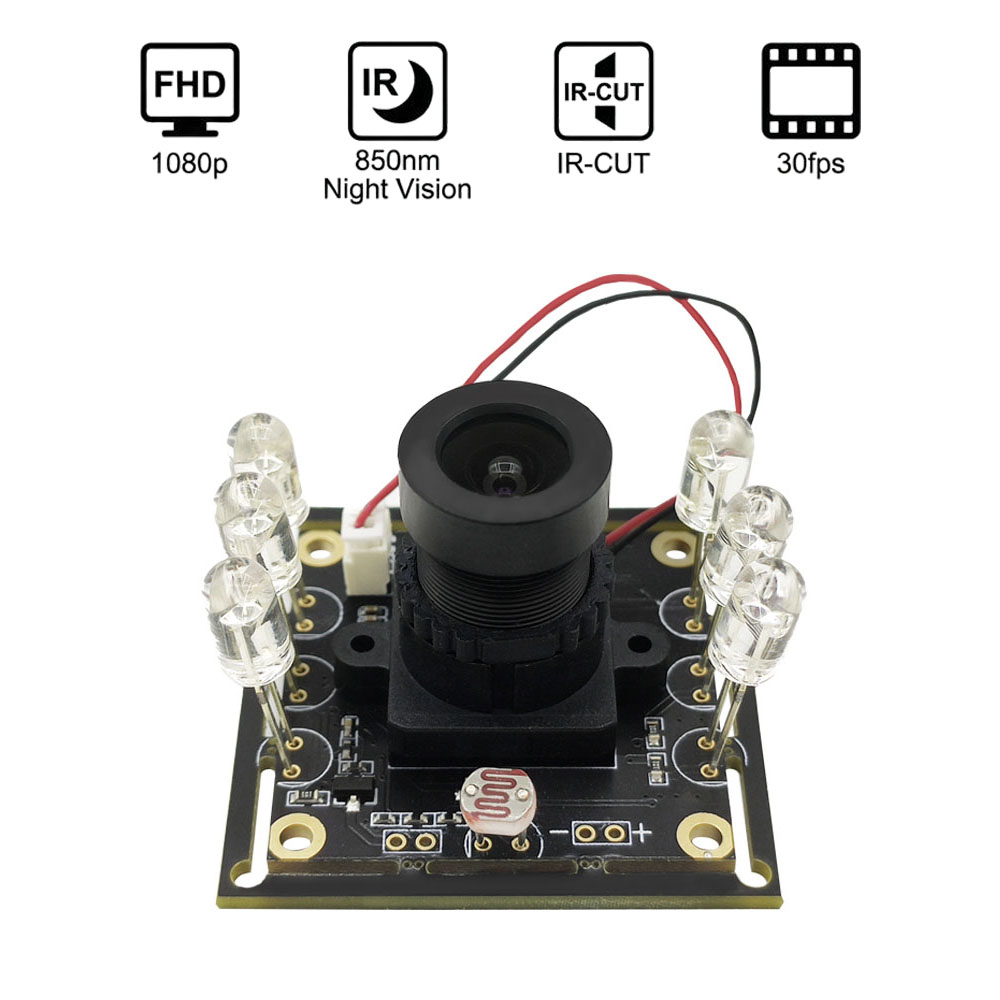

| Night Vision Capability | Supports infrared (IR) LED night vision, 850nm or 940nm optional |
| Operating Temperature | < 70°C |
| FOV | 90° |
| Supported OS | Windows/Mac/Linux/Android |
Product advantages
- High-definition and high-performance image acquisition: 2MP resolution ensures clear details, capturing even minute targets in industrial inspection or security monitoring. High frame rate (30fps) guarantees smooth video, suitable for machine vision and dynamic monitoring applications.

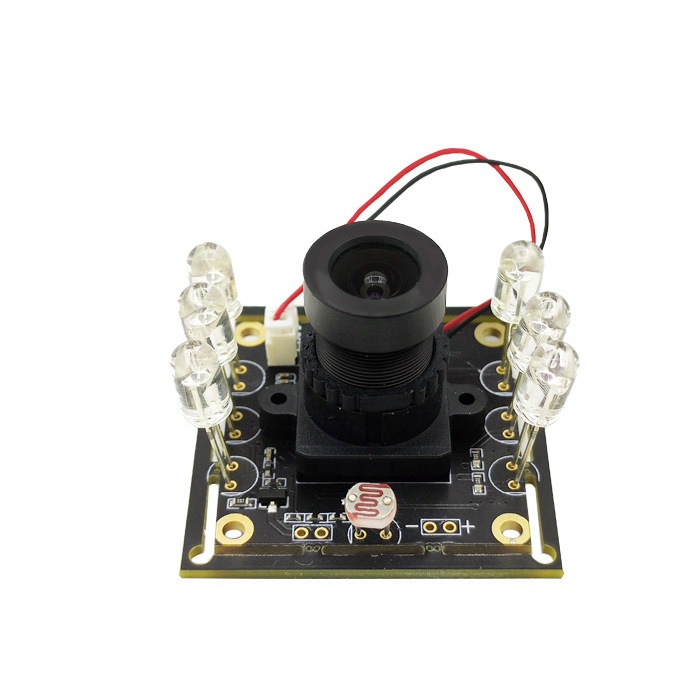

- Night vision and infrared technology: IR LED supports nighttime monitoring and low-light environment shooting. Automatic day/night switching ensures optimal image quality for bothday and night.

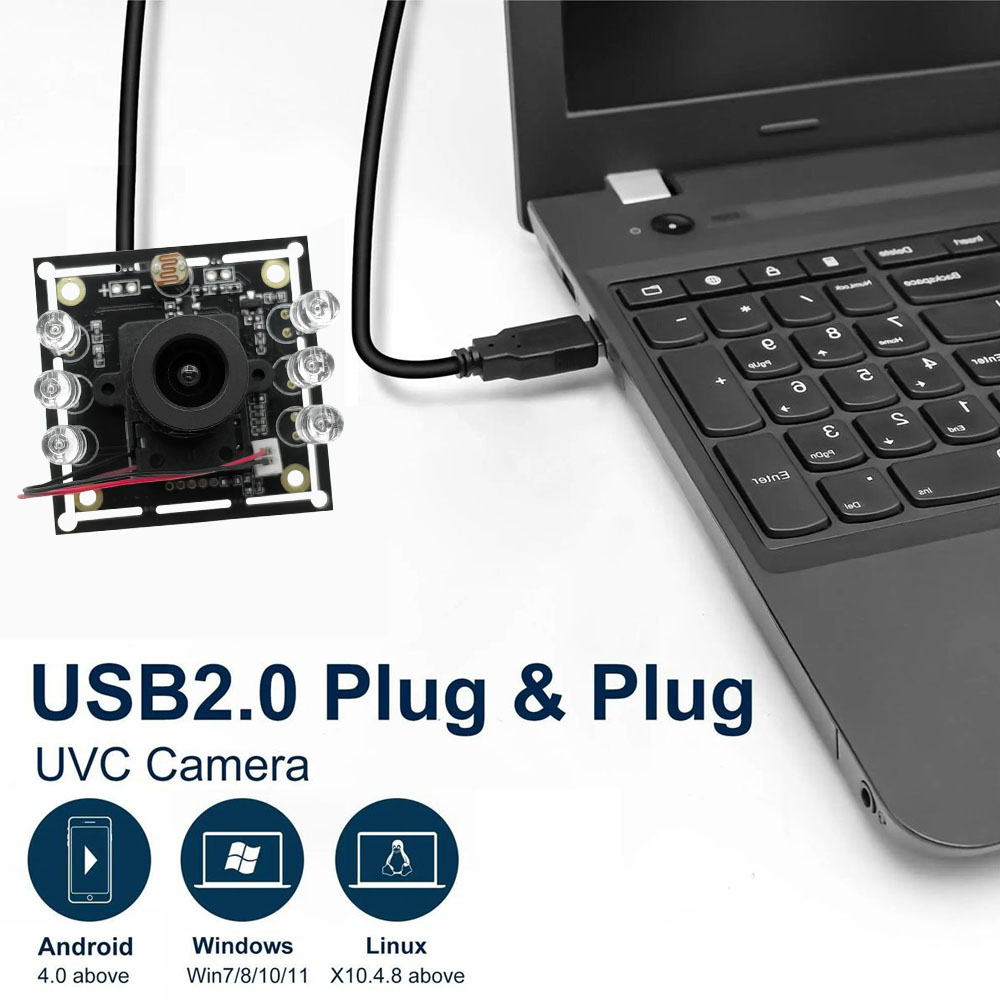

- Convenient USB interface: USB 2.0 plug-and-play, supports UVC standard, requiring no additional drivers. Improves development efficiency for B2B clients and reduces system integration time.
- Compact and durable: The small design facilitates embedding in various industrial equipment, robots, or security systems.
- Metal/industrial-grade housing enhances anti-interference capabilities and adapts to harsh industrial environments.
- Wide compatibility: Fully compatible with Windows, Linux, and Android systems, supporting multiple development platforms. Flexible to meet the integration needs of different B2B clients.
Customization Options
- We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.1. Lens customization: specific focal length, field of view angle, distortion control.2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.3. Cable and Interface: Customize cable length and interface type.4. Pixel customization: Different resolution and frame rate models are available.
Applications
- Machine Vision: Production line inspection, precision measurement, robotics
- Industrial Monitoring: Equipment status, clean room inspection, hazardous environments
- Smart Office: Video conferencing, medical imaging, education systems
- Specialized Uses: Vehicle monitoring, agricultural IoT, microscopy integration
