Technical Specifications
| Parameter | Value |
|---|---|

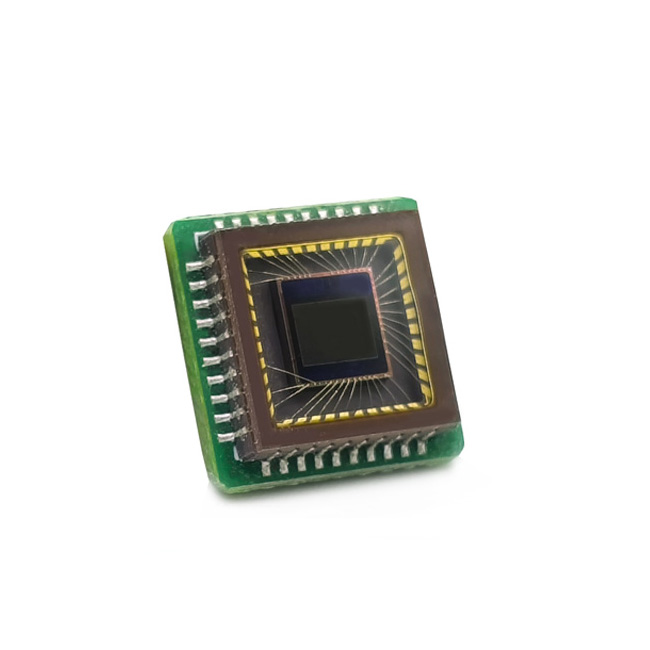

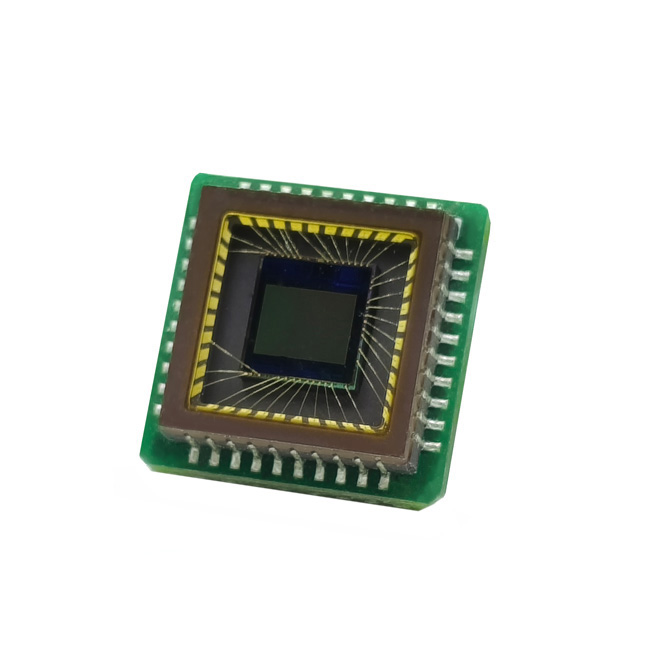

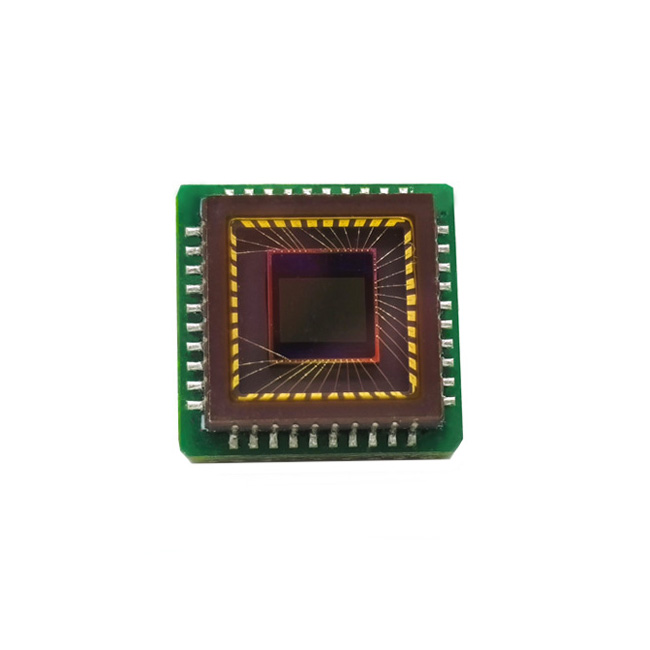

| Sensor | 1/4″ CMOS |
| Resolution | 0.3MP |
| Signal Type | CVBS |
| Frame Rate | 640×480 @ 50fps |
| Operating Voltage | DC 3.3V |
| Power Consumption | 0.25W |
| Dimensions | 12mm×12mm |
| Operating Temperature | <70°C |
| Model Number | HCC-M12 |
Product advantages
- 1/4 CMOS Image Sensor offering low noise and improved color reproduction.
- CVBS Composite Video Output Camera with BNC connector for plug-and-play integration.
- 3.3V Low-Power Camera Module (<0.25W) ideal for continuous operation.
- Analog CCTV Camera Module supported by most DVR and legacy CCTV systems.
Typical Applications
1: ATM,Kiosk,POS,TV box
2: Advertising cameras
3: Smart TV built-in camera
4: Construction Equipment
5: Banking equipment
6: body switch
7: Scanner
8: a mobile terminal device
9: Medical diagnostic image acquisition
10: fingerprints, palm prints image acquisition
11: video door camera
2: Advertising cameras
3: Smart TV built-in camera
4: Construction Equipment
5: Banking equipment
6: body switch
7: Scanner
8: a mobile terminal device
9: Medical diagnostic image acquisition
10: fingerprints, palm prints image acquisition
11: video door camera
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP，16MP).
