Technical Specifications
| Sensor | 1/4″CMOS |
|---|---|
| Pixel | 1MP |
| Compression format | MJPG/YUV2 |
| Frame rate | 1280X720p@30fps |
| Audio | none |
| Operating voltage | DC 5v |

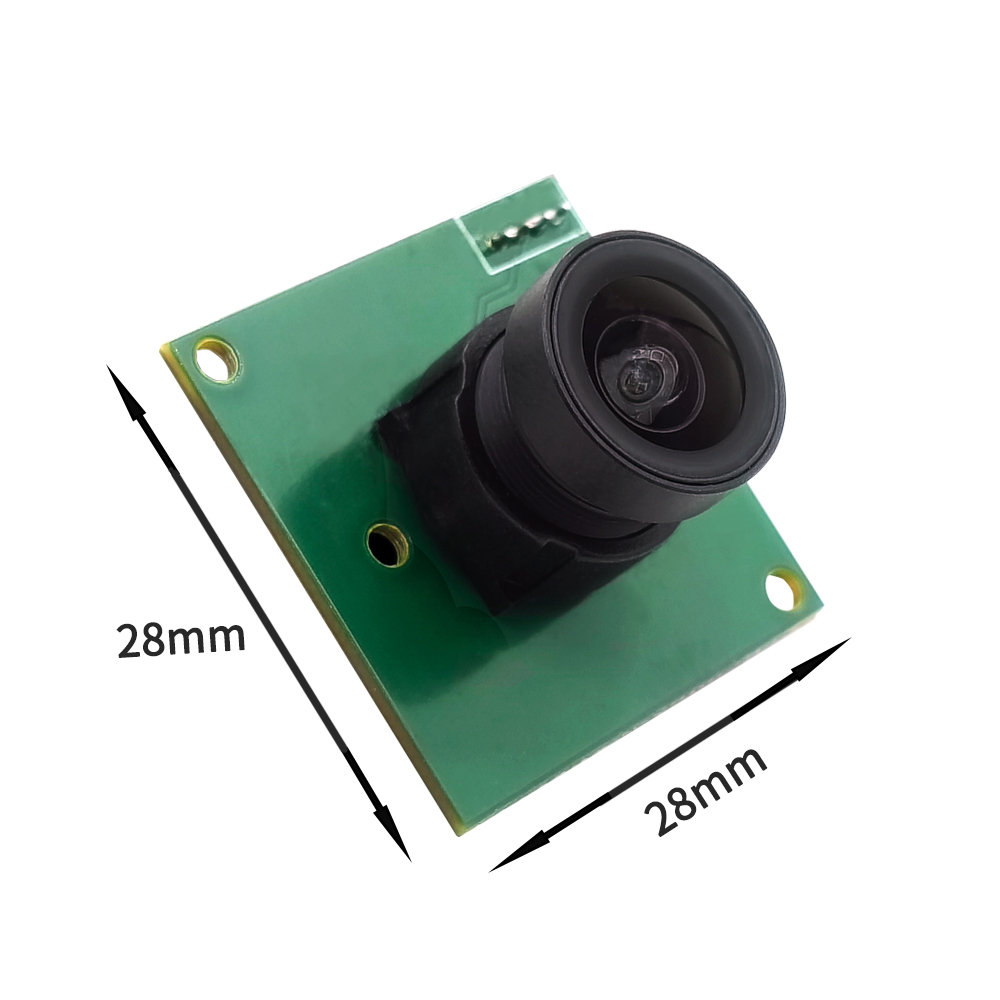

| Dimensions | 28x28mm |
| White balance | Automatic |
| Operating temperature | <70° |
| Power consumption | 0.25w |
| Model No | HC-MU1MPWJB2.8-28 |
| Interface type | USB 2.0 |
| USB cable length | Default 2m (customizable) |
| Lens | Distortionless 2.8mm |
| FOV | 100° |
| Supported OS | WinXP/Mac OS/Linux/Win7/Win8/Win10/Android |
Product Advantages
- 1280×720P High-Definition Resolution: Provides clear and sharp high-definition imaging for applications requiring real-time monitoring, process inspection, barcode reading, gesture recognition, or machine learning input.
- Distortion-Free Lens Design: The lens minimizes barrel distortion and edge curvature, ensuring accurate imaging for robot guidance, industrial metrology, and vision alignment systems.
- USB 2.0 Plug and Play: Stable data transfer, plug and play, requiring no drivers for most operating system environments. Compatible with Windows, Linux, and Android systems.
- Industrial-Grade Stability: Utilizes high-quality sensor components and PCB design, ensuring durability in factory automation, industrial robotics, medical device imaging, laboratory testing equipment, and 24/7 operating environments.
- OEM/ODM Project Customization Support: Lens options, field of view, cable length, housing, interface, frame rate, infrared filters, and firmware adjustments can all be customized to meet your project needs.
Customization Services
We support comprehensive customization services, including:
- Lens type and field of view (FOV)
- PCB size and layout
- Interface type (USB-A/USB-C/Micro USB)
- Cable length
- Shell size, shape, and material
- Sensor upgrade (2MP/3MP/4MP/5MP/8MP/12MP)
Applications
This module provides outstanding versatility and can be integrated into:
- Machine Vision Cameras
- Industrial Inspection Systems
- AI Vision Recognition Terminals
- Factory Automation Equipment
- Robotics and UAV Platforms
- Barcode & QR Code Scanners
- Face Recognition Devices
- Attendance & Access Control Terminals
- Medical Diagnostic Equipment
- Smart IoT Solutions
- Embedded Vision Systems
