| Specification | Detail |
|---|---|
| Sensor | 1/2.9″CMOS |
| Pixel | 2MP |
| Output Format | AHD 1080p |
| Frame rate | 1920X1080 25fps |
| Audio | none |
| Operating voltage | DC 3.3v |
| Product dimensions | 12mmx12mm |
| White balance | Automatic |
| Operating temperature | <70° |
| Power consumption | 0.25w |
| Model No | HCA-M122 |
| Interface type | BNC |

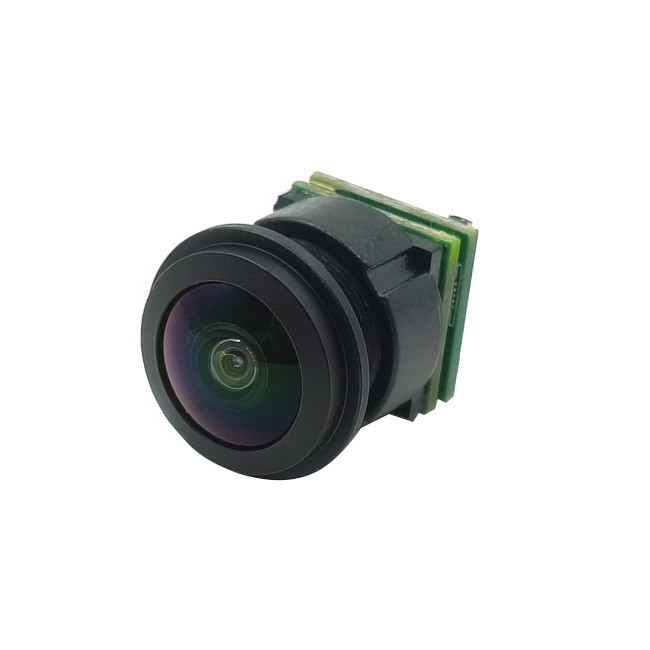

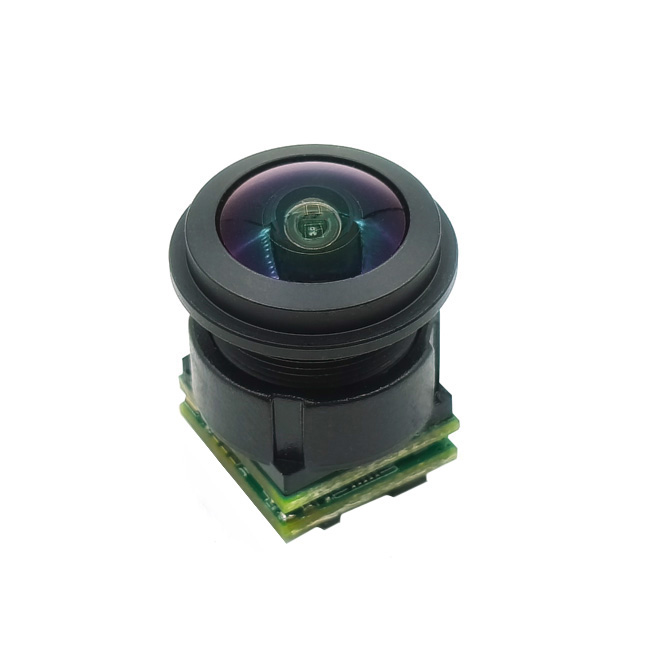

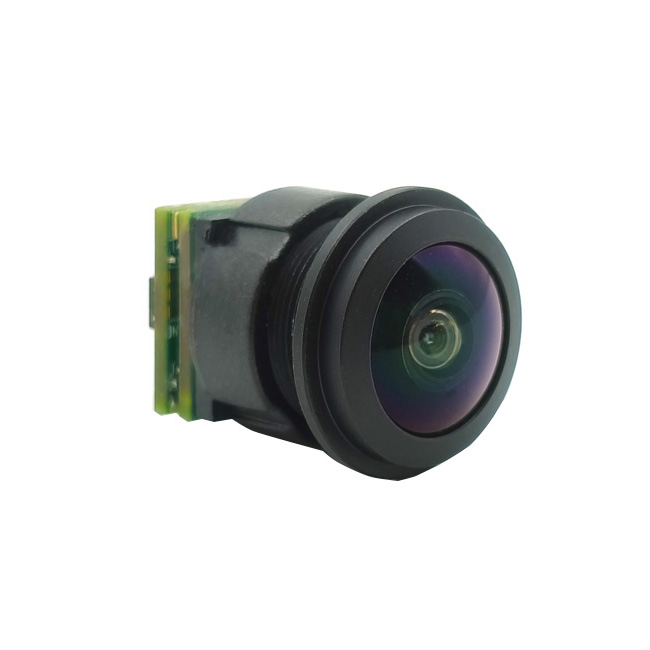

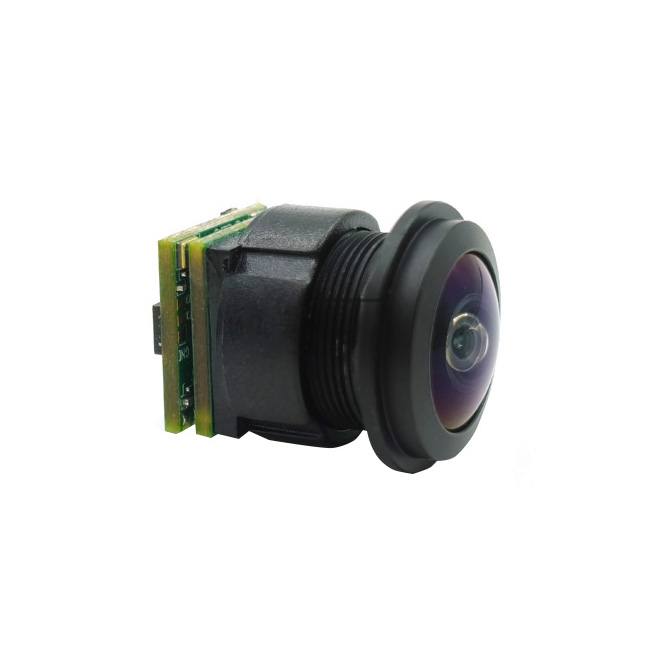

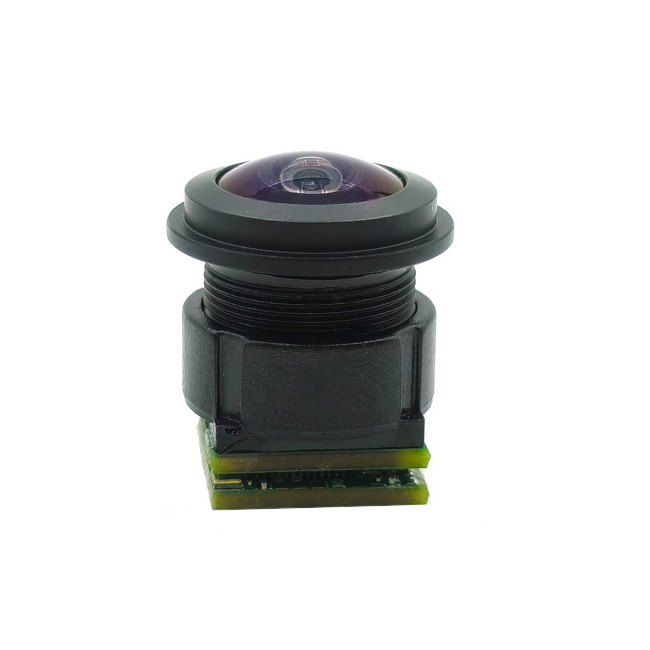

| Lens | EFL:1.96mm, F.ON:2.0, Distortion: <-17%, Element:2G4P+1IRF, Angle:D=160° H=149° V=90° |
| Standard | PAL/NTSC (Default PAL) |
● 2MP High-Resolution AHD Imaging: This module utilizes a 2MP CMOS image sensor optimized for industrial clarity, supporting Full HD 1080P output.
● Real-Time AHD Video Transmission: Employing an enhanced industrial image transmission chipset, this module provides low-latency analog HD output suitable for long-distance transmission in automated equipment.

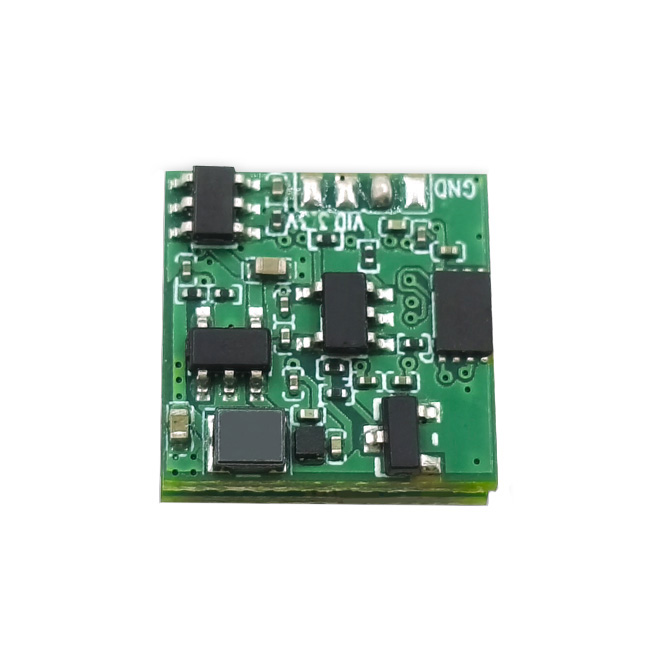

● Compact Board-Level Design: This ultra-compact camera board-level module can be easily integrated into robotic arms, industrial terminals, embedded systems, industrial controllers, and various smart devices.
● OEM/ODM Customization Ready: We support OEM AHD modules, lens/PCB customization, housing size, and software parameter adjustments to meet the specific industry requirements of industrial camera module integration.
● Ultra wide angle distortion free lens: equipped with a 1.96mm focal length industrial grade lens, providing a diagonal ultra wide viewing angle of up to 166°, capable of covering a wide range. The lens undergoes precise calibration to ensure a wide field of view while effectively controlling edge distortion, ensuring the authenticity and reliability of the image.
● Standard BNC interface, stable transmission: using the standard BNC interface to output AHD analog high-definition signals, with strong compatibility, stable transmission, and no delay. It can directly connect to DVR or display devices that support AHD format, and the system integration is simple and fast.
Industrial security equipment: embedded into access control systems, intercom indoor units, smart doorbells, and elevator floor displays as their visual acquisition units.
Vehicle monitoring system: integrated into the reversing camera and in car monitoring systems of buses, taxis, and construction vehicles, thanks to its small size and wide-angle characteristics.
Smart home terminal: As the “eyes” of smart cat eyes, smart door locks, household robots and other devices, it realizes video calling and motion detection functions.
Specialized equipment vision module: used for medical endoscopes, pipeline inspection equipment, unmanned aerial vehicle image transmission and other professional equipment with strict limitations on volume and weight.
Security product OEM/ODM: provides core modules for surveillance camera manufacturers to quickly develop various forms of finished cameras (such as bullet heads, dome cameras, etc.).
Our core advantage lies in flexible customization options:
- Interface types can be customized.
- Cable length can be customized according to requirements.
- Lens options: Wide-angle, standard, telephoto, panoramic lenses.
- OEM/ODM support: Custom housings, resolutions, packaging.
- Bulk order support: Competitive pricing for volume purchases.
Applications
Ideal for various machine vision and monitoring applications including:
- Machine Vision and AI Systems:Ideal for barcode recognition, object detection, robotics platforms, and small AI boxes.
- Kiosk and Self-Service Terminals:Used in ATM machines, smart access control, vending machines, ticketing systems.
- Medical equipment and hospital systems
- Industrial automation and robotics
- Security surveillance systems
- Flame monitoring in power plants
- Law enforcement equipment
