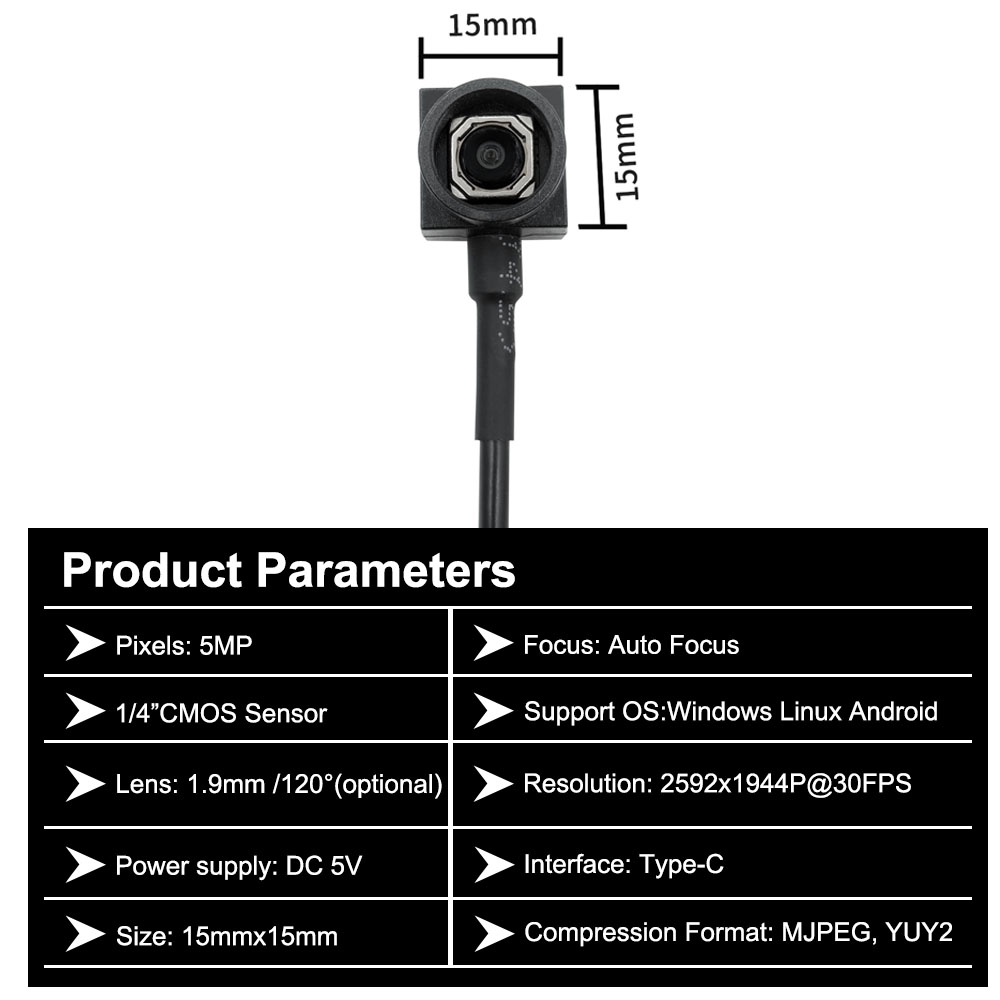

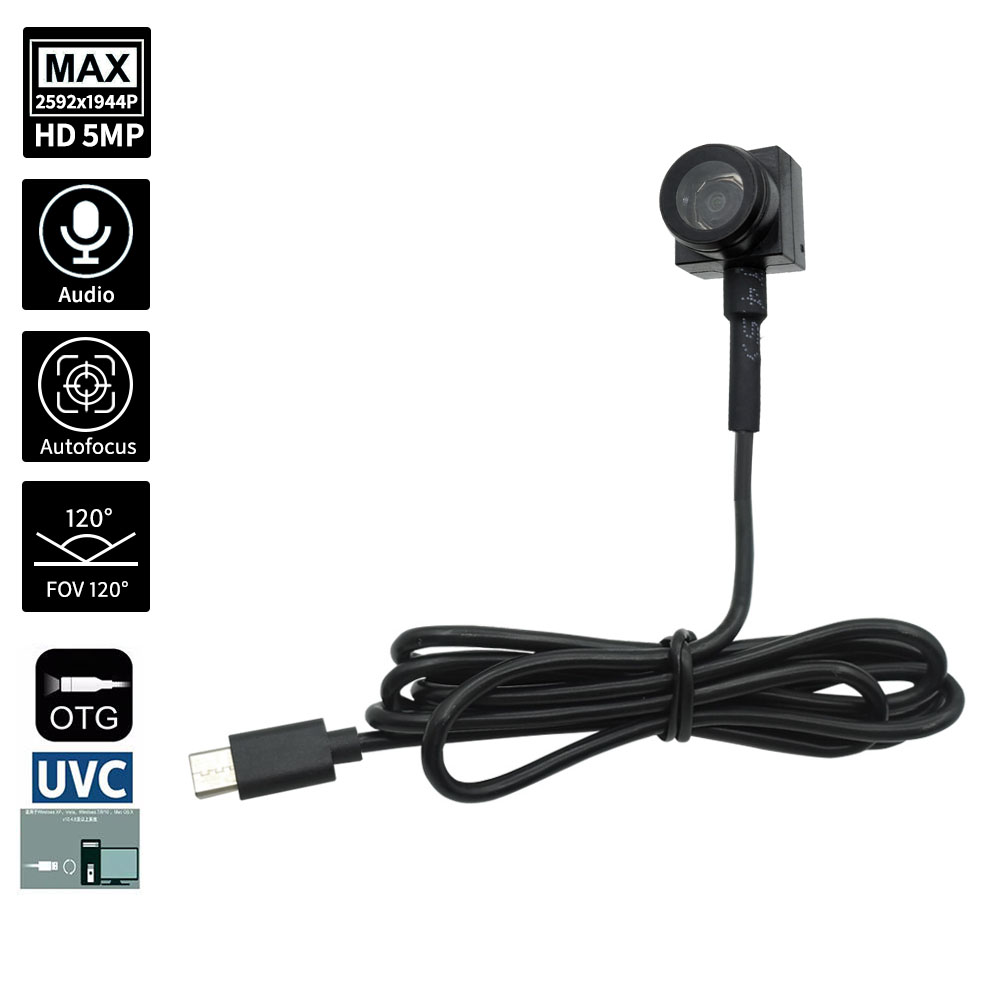

| Parameter | Specification |
|---|---|
| Sensor | 1/4″CMOS |
| Pixel | 5MP |
| Compression Format | MJPG/YUV2 |
| Frame Rate | 2560×1440 @ 30fps |
| Audio | Support |
| Working Voltage | DC 5V |
| Product Size | 15mmX15mm |

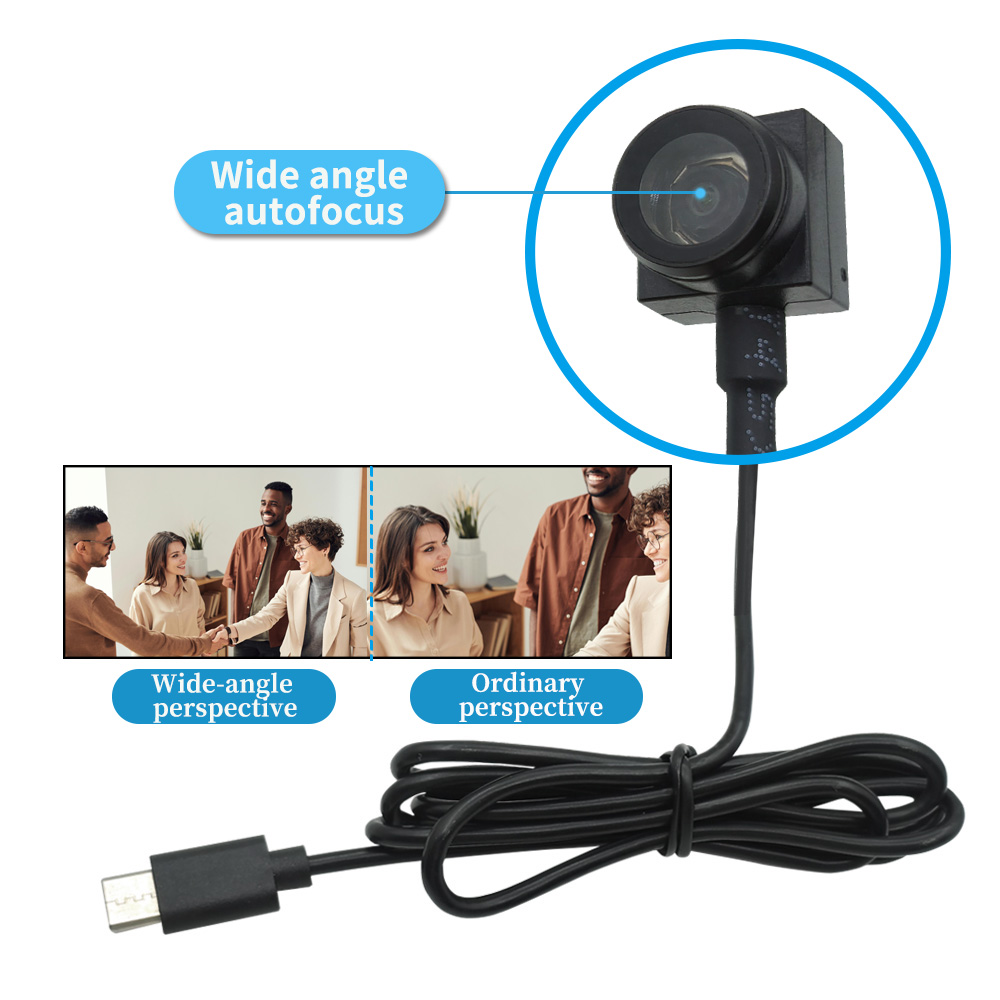

| Lens | 120° |
| Working Temperature | <70°C |
| Focus | Auto Focus Lens |

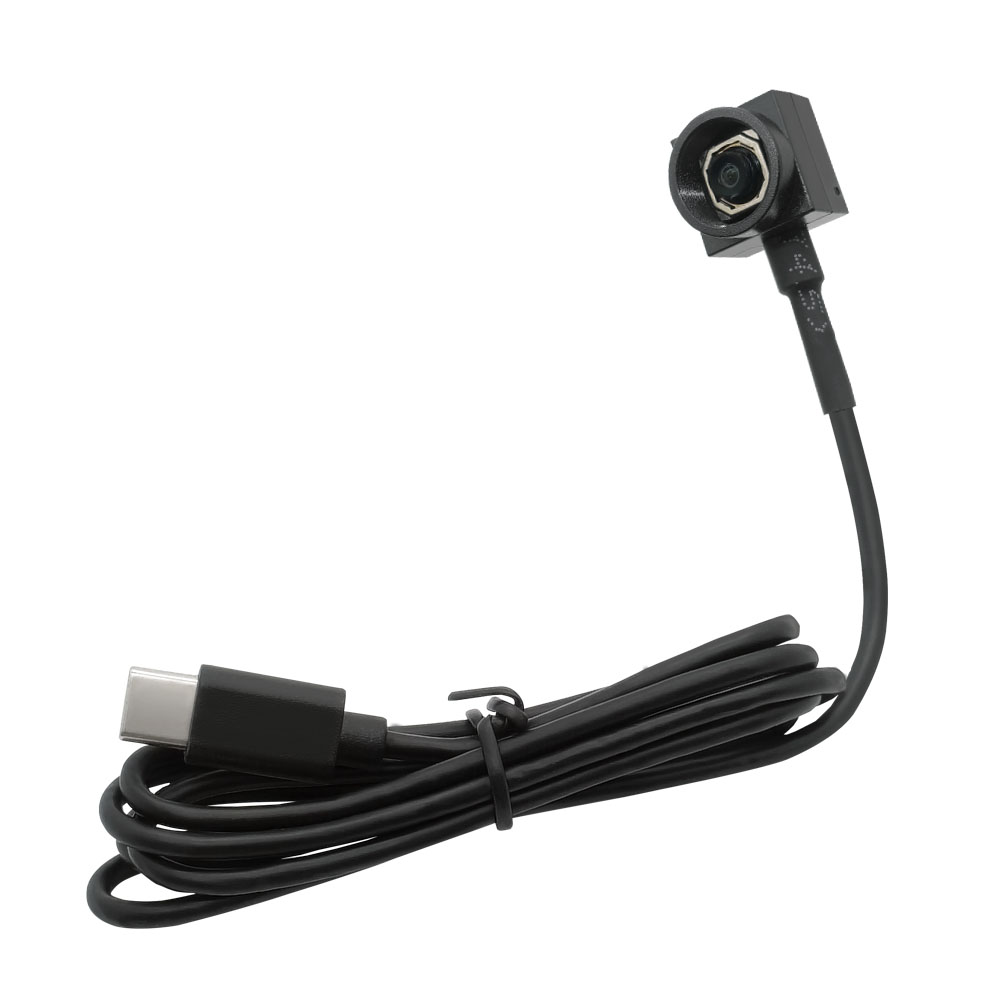

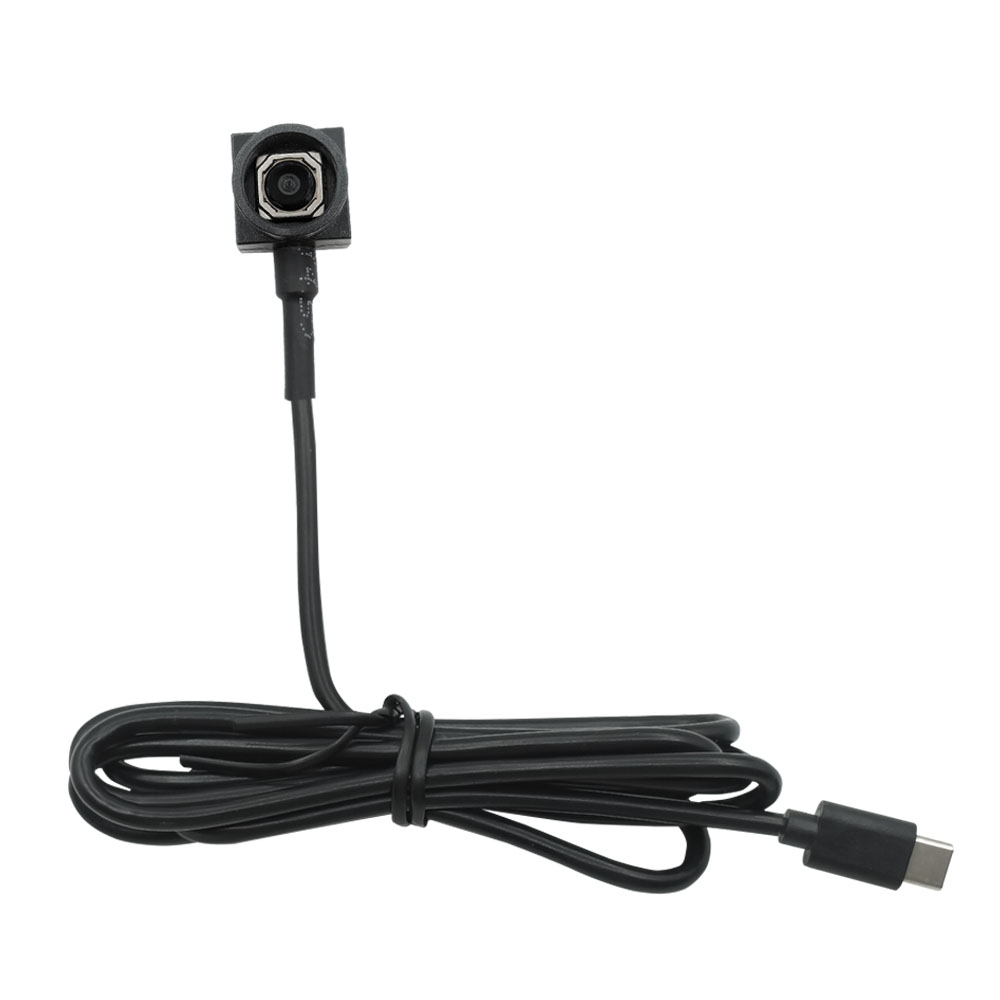

| Interface Type | Type-C |
| Model Number | HC-T5MPAFGJ-15 |
| Compatibility | Windows/Mac OS/Linux/Android |
Main Features
Professional grade 5MP CMOS sensor: using high-quality CMOS sensors, optimized for low noise and high-definition imaging. It provides a resolution of 2560 × 1440, meeting the needs of applications such as OCR scanning, face detection, barcode reading, ID recognition, and high detail document capture.
Fast and accurate autofocus system: Compared to traditional fixed focus designs, the built-in autofocus (AF) camera module can immediately capture clear images, maintaining clarity even at different distances.

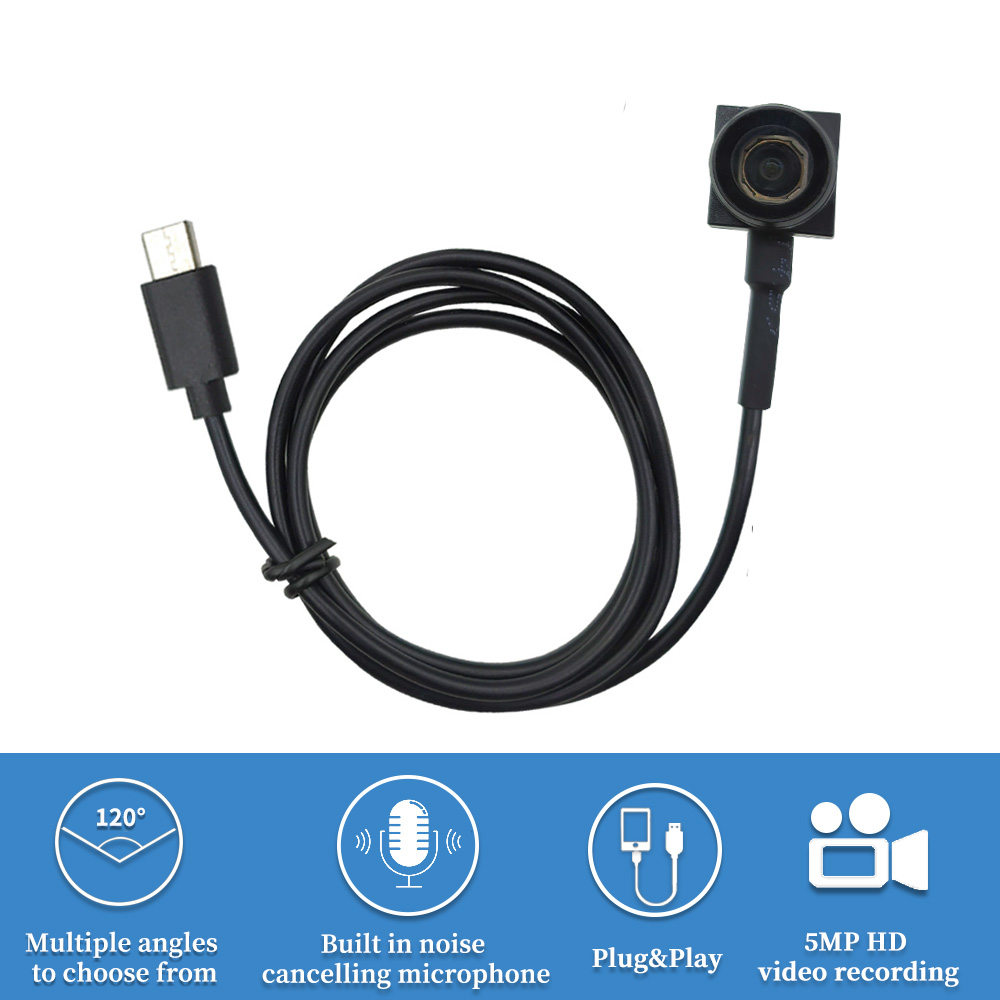

USB Type-C Plug and Play Interface: The USB Type-C camera interface ensures stable connection, convenient reversible plugging, and easier integration. Compatible with Windows, Linux, macOS, and Android systems.

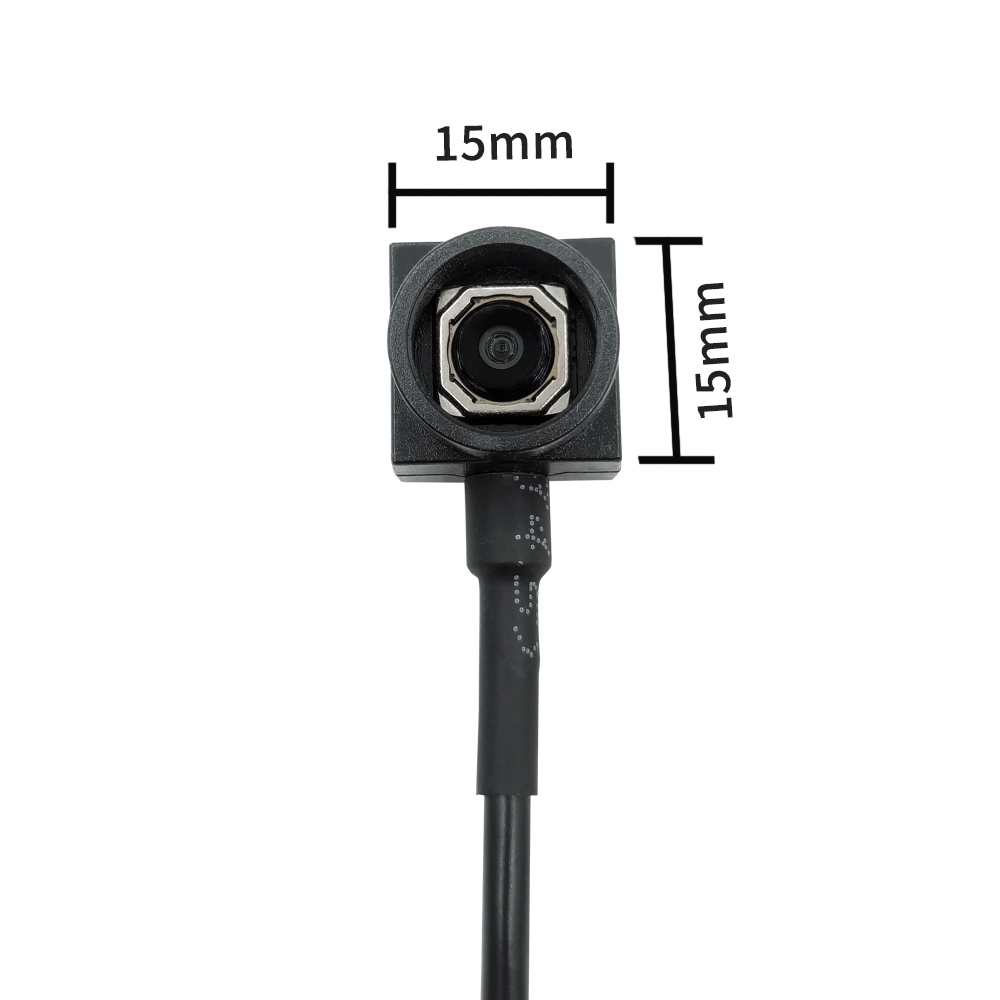

Ultra compact 15 × 15mm circuit board size: This mini camera module can be easily integrated into a very small hardware space.
Eye contact technology for natural video communication.
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Cable length: Custom cable length (can be customized to 1.5m/2.0m).
3. Pixel customization: Provides different resolution and frame rate models (such as 640*480, 1280*720, 1920*1080, 2560*1440).
4.Customization Services: USB camera module, AHD camera module, CVBS camera module, wired webcam module, wireless wifi camera module, etc.
5. Product size is 6mmX6mm, 12mmX12mm, 23mmX23mm, 28mmX28mm, 32mmX32mm, 38mmX38mm, etc.At the same time, the size can be extremely small, Our AHD / USB / CVBS camera module without storage and transmission is extremely small and the smallest of its kind on the market.
ATM cameras (cash withdrawal monitoring, identity verification)
Document scanning cameras (OCR terminals, ID and passport scanners)
Self-service kiosk camera modules for hotels, ticketing, and check-in
Facial recognition access control systems
Smart POS terminals and AI payment terminals
Vending machines with identity verification capabilities
IoT edge computing devices
Medical document capture and sample label scanning
Barcode/QR code scanning devices
Retail self-checkout systems
