| Parameter | Value |
|---|---|
| Sensor | 1/6″ CMOS |
| Resolution | 0.3MP |
| Data Storage Options | DVR |
| Frame Rate | 640×480 @ 50fps |
| Operating Voltage | DC 3.3V |
| Dimensions | 6x6mm/5x5mm |
| View angle | 70 Degrees |
| Operating Temperature | <70°C |
| Video Output | RCA Port |
Low light and environmental adaptability: This module has excellent low light performance, with a minimum light intensity of 0.01 Lux, and can still maintain visible imaging in low light environments. The module design considers environmental adaptability and can operate stably within a working temperature range of -20 ℃ to+70 ℃, suitable for various application environments.
Low power consumption and power management: Designed with a DC 3.3V low-voltage power supply, with a power consumption of less than 0.25W, it is very suitable for battery powered or low-power application scenarios.

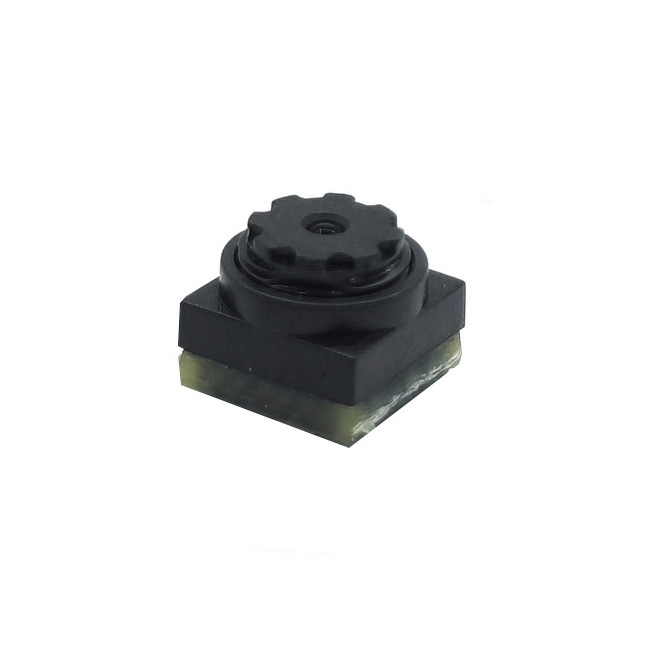

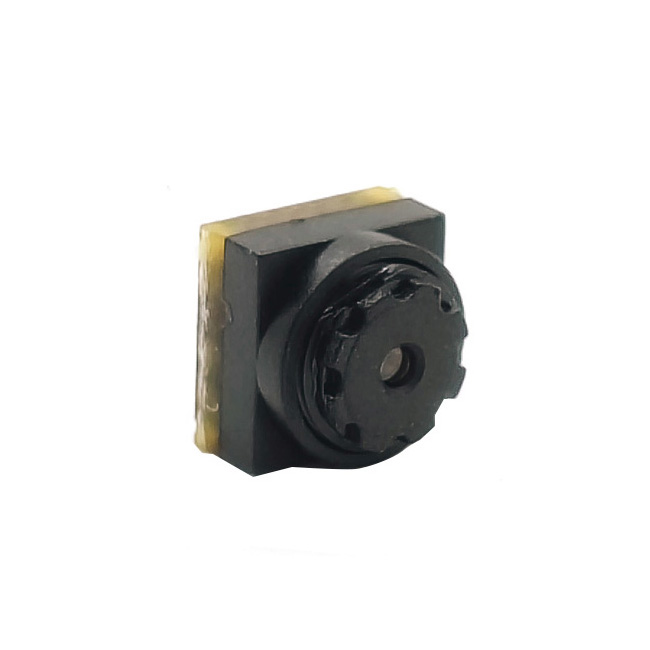

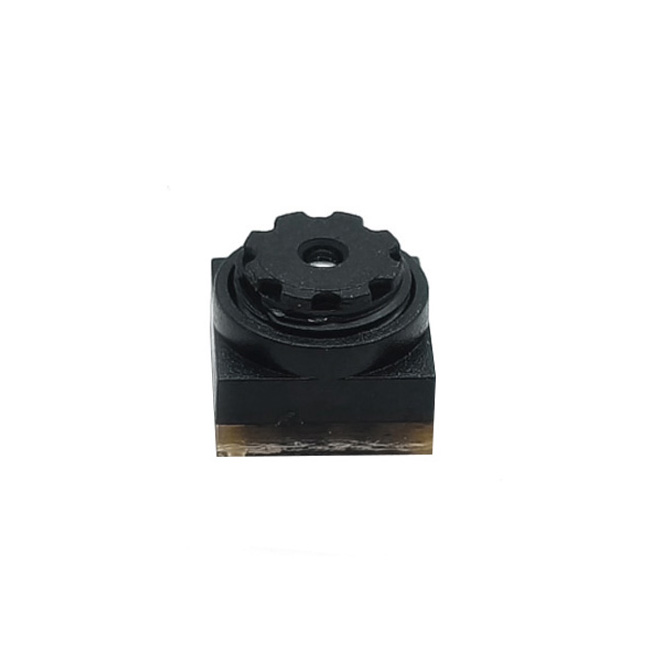

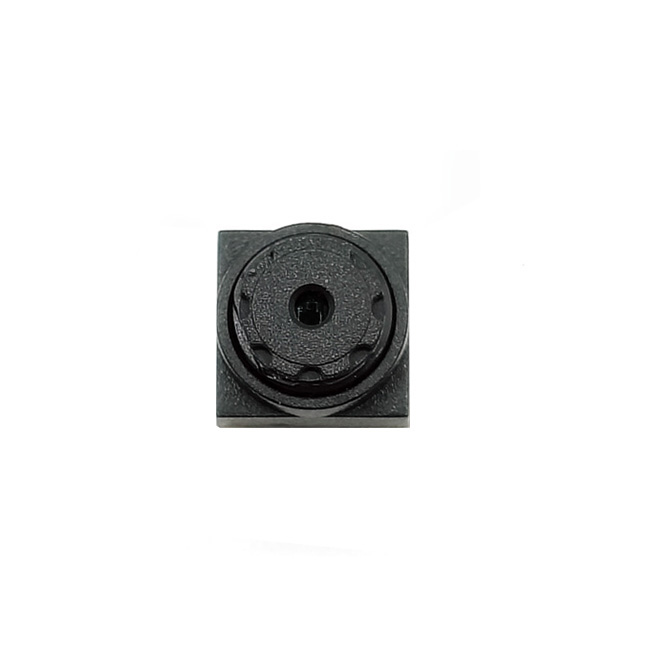

Compact structure and easy integration: The ultra mini size of 6×6mm is the core advantage of this module, making it easy to integrate into devices with extremely limited space.
Analog video output: The module provides CVBS analog output, compatible with most traditional analog video systems, and can be directly connected to displays or recording devices without complex digital conversion. This output method has the characteristics of stable signal and extremely low delay, making it very suitable for application scenarios that require real-time monitoring.
Common application areas include:
Industrial inspection systems and factory automation
Robotics and miniature robot vision modules
UAV and drone monitoring systems requiring analog FPV video
Smart home devices and consumer electronics
ATM and access control systems for identity verification
Medical diagnostic tools and portable imaging devices
Smart retail equipment and POS terminals
Law enforcement recording tools and covert surveillance systems
Elevator monitoring, vending machines, and kiosk equipment
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP,16MP).
