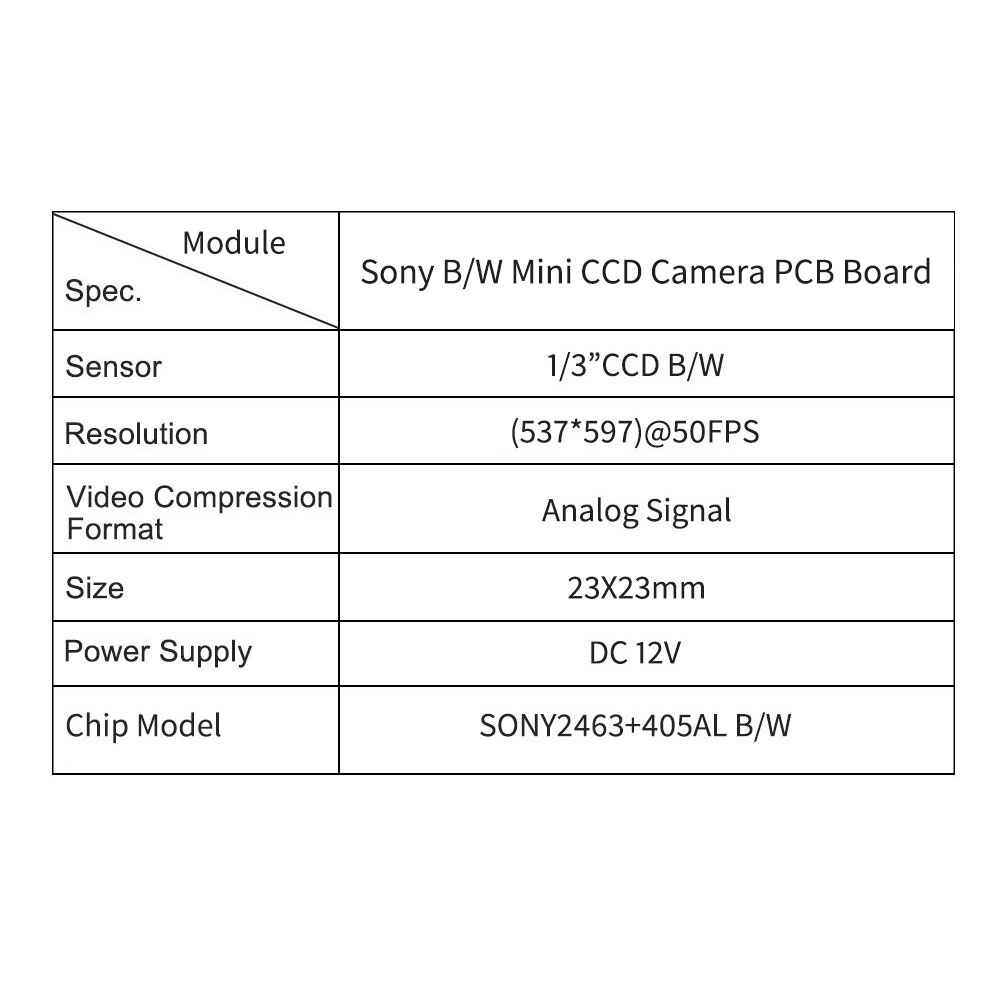

| Parameter | Value |
|---|---|

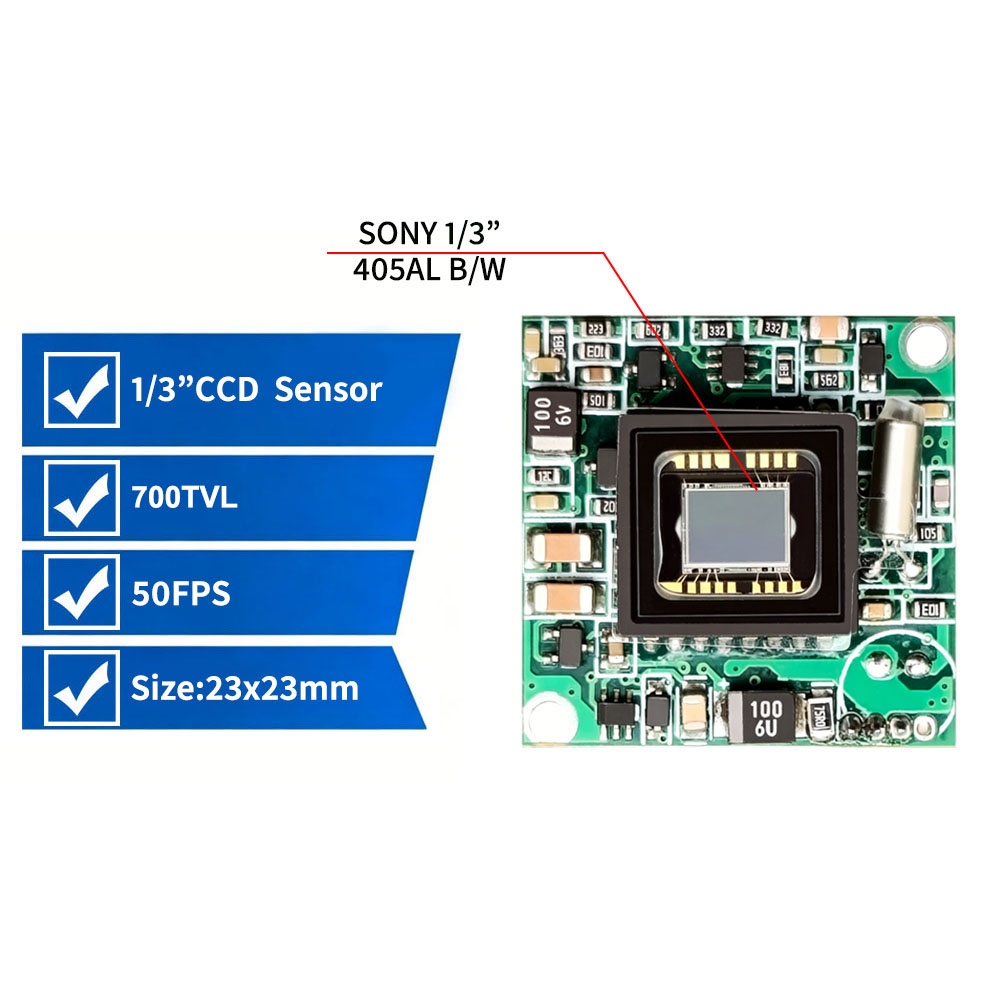

| Sensor | 1/3″ CCD |
| Resolution | 0.3MP |
| Signal Type | CVBS |
| Frame Rate | 537×597 @ 50fps |
| Operating Voltage | DC 12v |
| Dimensions | 23mm×23mm |
| Operating Temperature | <70°C |
| Power Consumption | 0.25w |

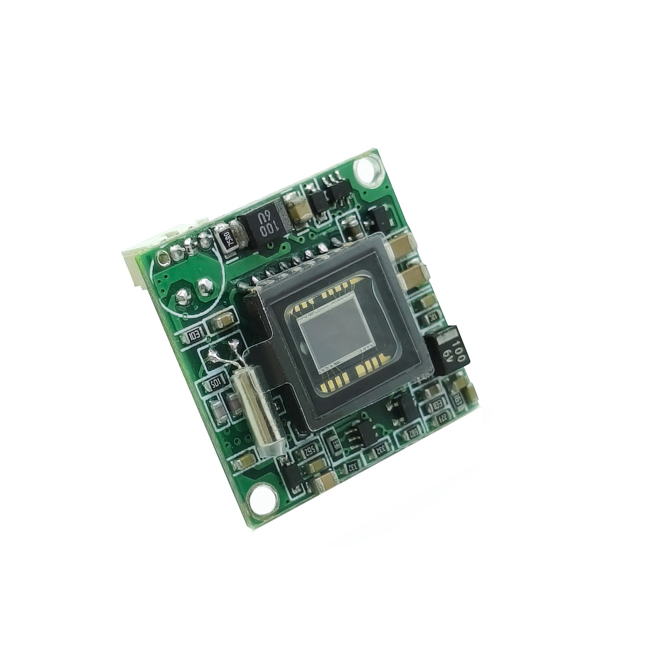

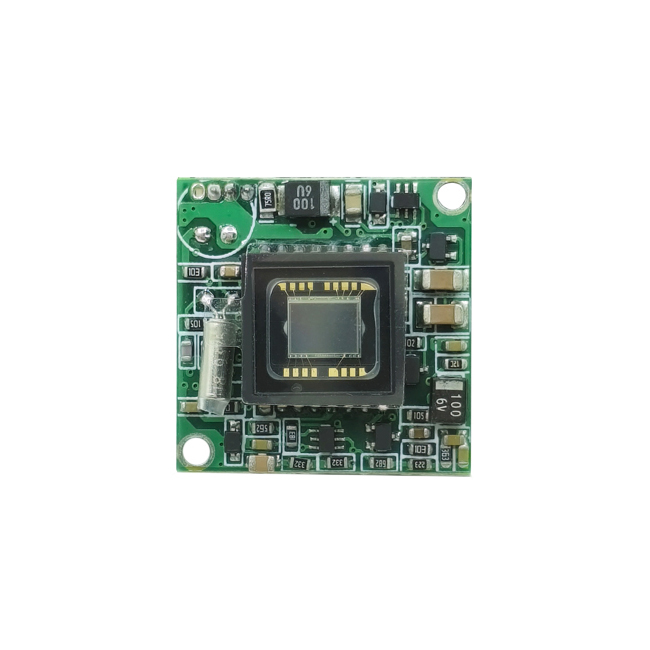

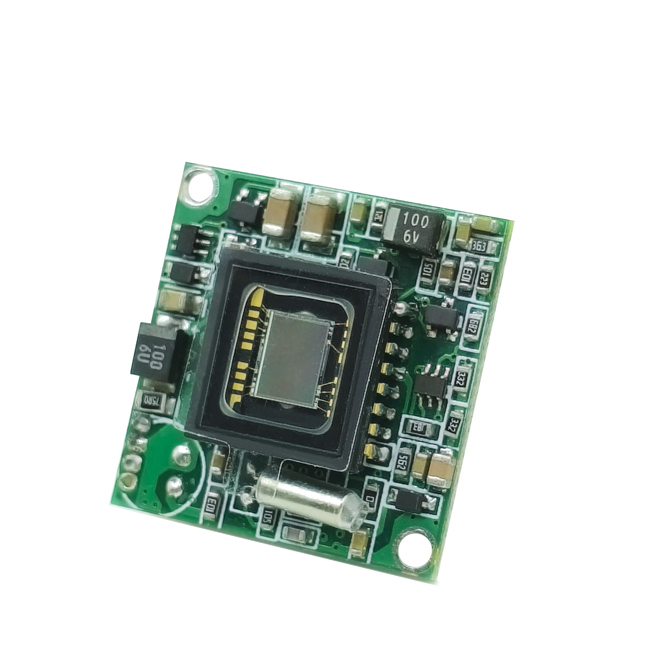

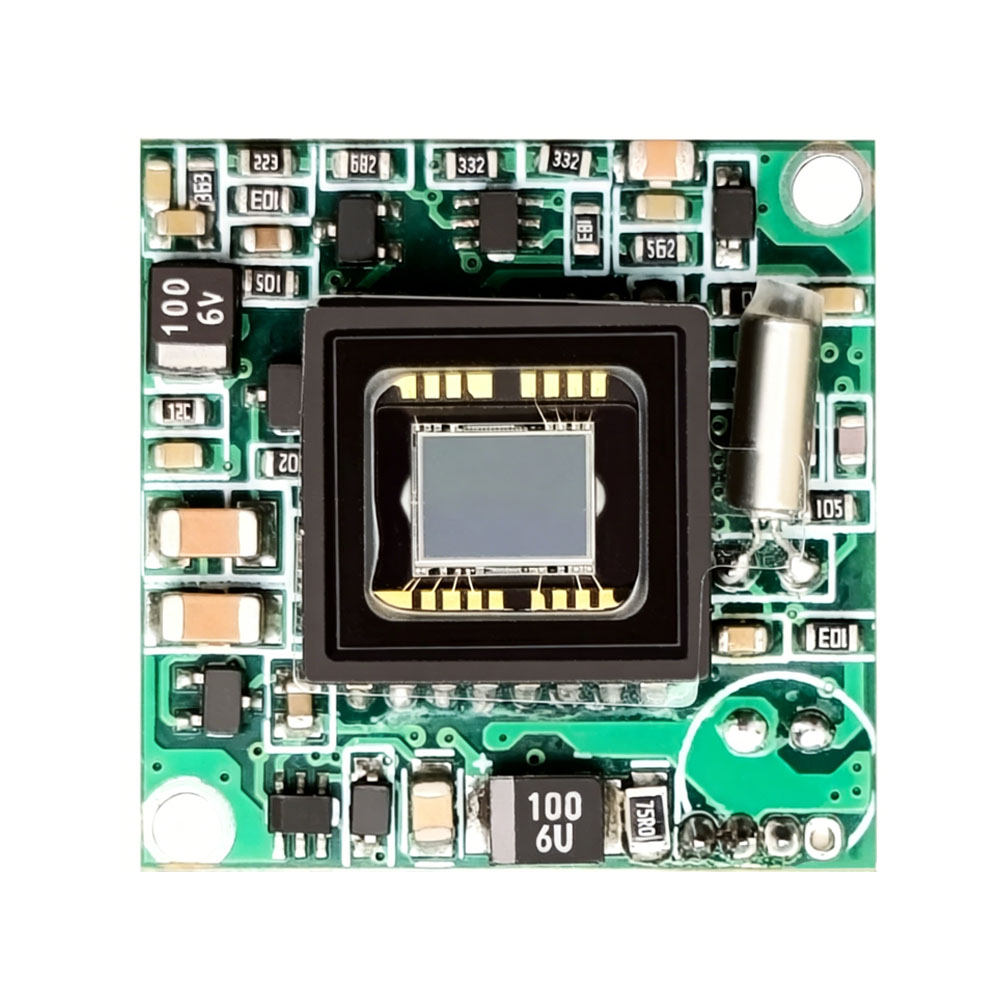

High-Resolution 700TVL Image Performance:The module uses a pure monochrome CCD imaging sensor, producing high-contrast images with superior detail clarity. The 700TVL resolution ensures precise edge capture, making it suitable for defect detection, measurement, and optical inspection tasks.
Stable CCD Sensor for Industrial Vision:Compared with common CMOS modules, CCD technology provides:
Higher signal-to-noise ratio
Stronger low-light performance
Better grayscale accuracy
Superior imaging stability in harsh environments,This makes it ideal for applications requiring consistent imaging quality even under variable lighting.
Ultra-Compact 23×23 mm Design Perfect for:
Embedded industrial instruments
Automated production lines
Microscope and endoscope modules
Traffic monitoring systems
Robotics and intelligent device
Standard Analog CVBS Output (BNC)
The module outputs standard CVBS analog video, ensuring plug-and-play compatibility with existing industrial monitors, DVR systems, and analog visual inspection equipment.
Low Power Consumption and High Reliability:Operating on DC 12V with only 0.25W, this module enables safe integration into small devices without adding heat load or power stress.
Machine Vision and Automation:Used in automated defect detection, measurement systems, robotic visual positioning, and production quality control.
Security and CCTV System Integration:A professional-grade camera module that enhances monitoring accuracy in banking, warehousing, retail, and traffic control systems.
Medical and Laboratory Equipment
The high-contrast monochrome output is suitable for:
Microscopes
Endoscopes
Biological imaging instruments
Lab inspection systems
High detail clarity allows deployment in plate recognition, traffic monitoring, and urban management devices.
Embedded Devices and OEM Projects:The build supports OEM/ODM customers needing:
Custom lens options
Brand labeling
Image tuning services
Lens type and field of view (FOV)
PCB size and layout
Interface type
Cable length
Shell size, shape, and material
Sensor upgrade (2MP/3MP/4MP/5MP/8MP/12MP/16MP)
