| Parameter | Value |
|---|---|

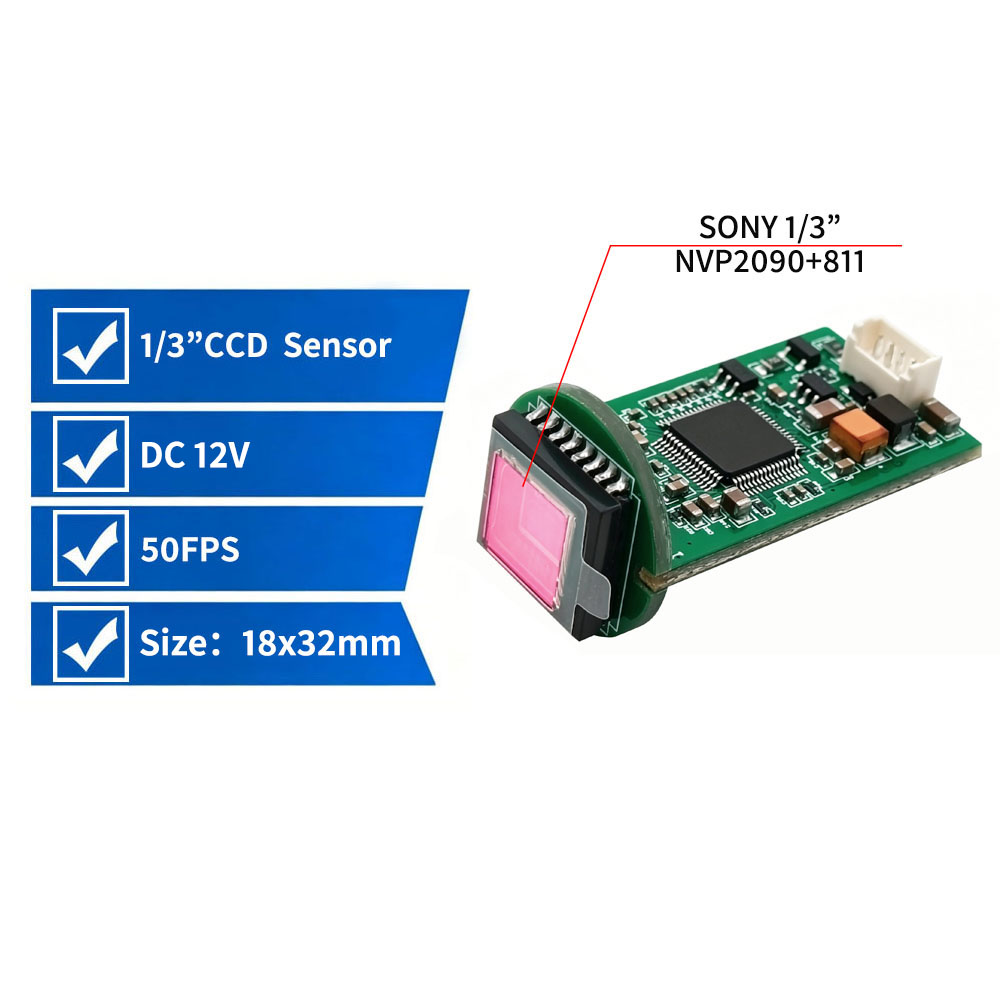

| Sensor Type | 1/3” CCD image sensor |
| Pixel | 0.7MP |
| Signal | CVBS |
| Frame rate | 1020X596 50fps |
| Audio | none |
| Gain Control | OSD adjustable + Auto Gain |
| Operating voltage | DC 12v |

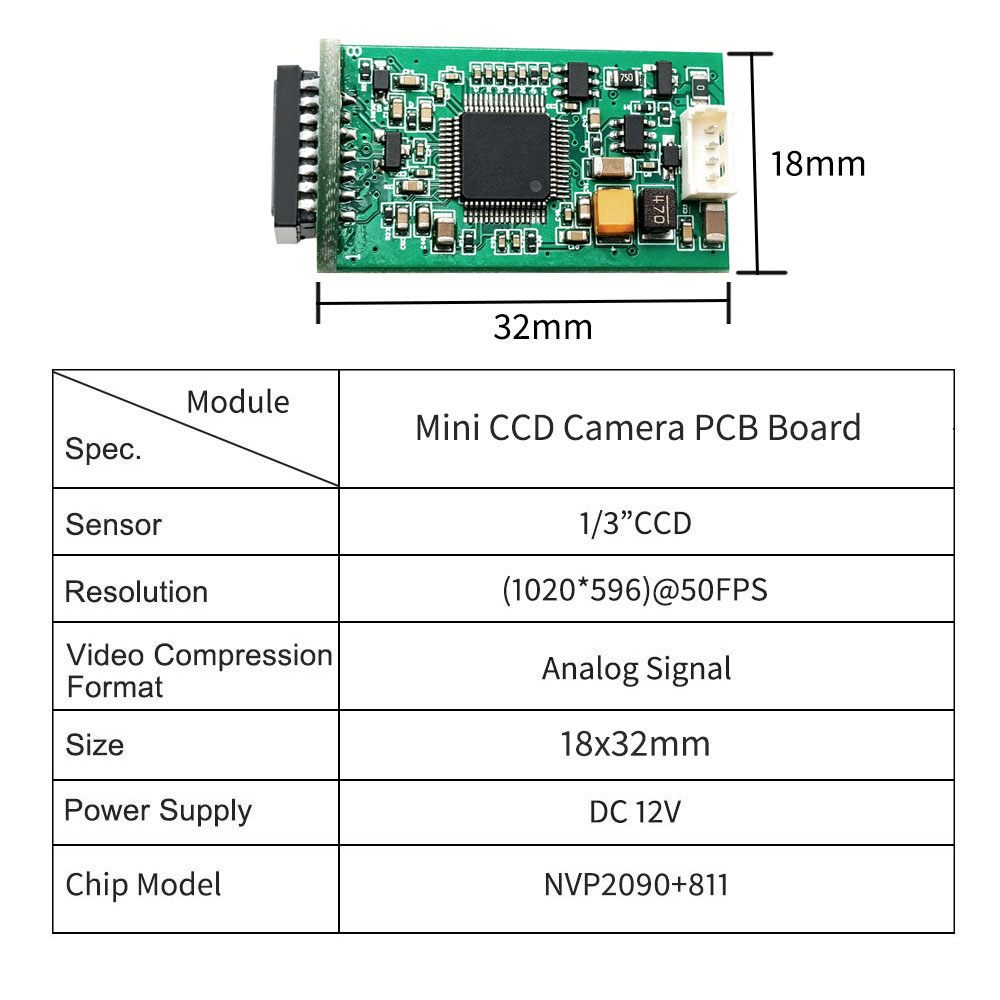

| Dimensions | 18mm×36.5mm |
| White balance | Automatic |
| Operating temperature | <70°C |
| Power consumption | 0.25w |
| Model No | HCC-M18D |
| Interface type | BNC |
| Lens | customizable |
| Video format | PAL/NTSC (Default PAL) |
High-Sensitivity CCD Sensor for Accurate Imaging:This module uses a high-performance CCD sensor to deliver clean and stable video output with improved signal-to-noise ratio, outperforming many CMOS sensors in low-light environments.
OSD Auto Gain Control:With built-in OSD (On-Screen Display) control, users can adjust gain, brightness, exposure, and white balance with ease. The auto gain control maintains stable image brightness in rapidly changing lighting conditions.
Standard CVBS Analog Video Output (BNC Interface):Analog CVBS output ensures long-distance transmission with minimal latency, making it ideal for factory monitoring, inspection stations, and embedded safety systems.

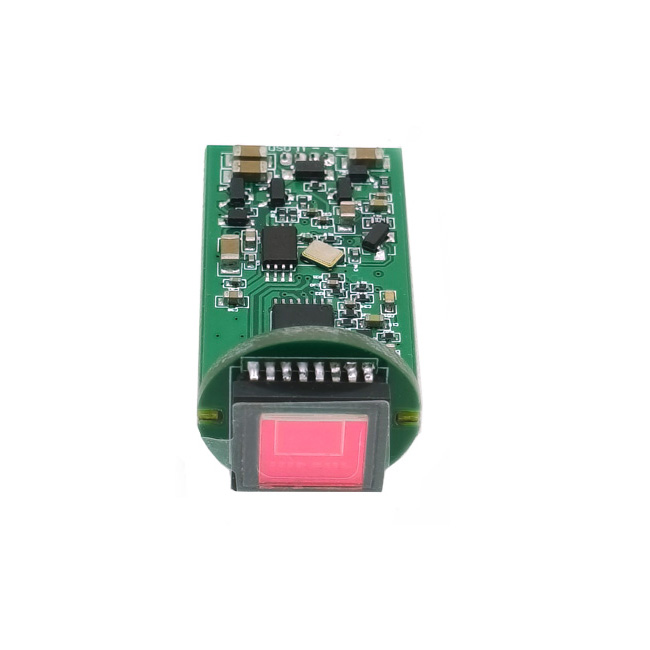

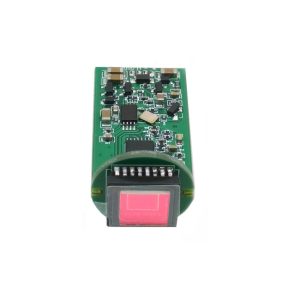

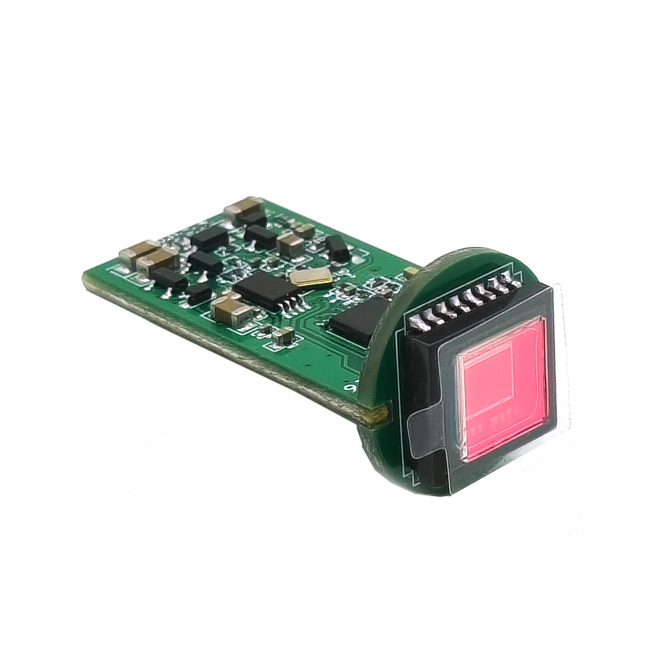

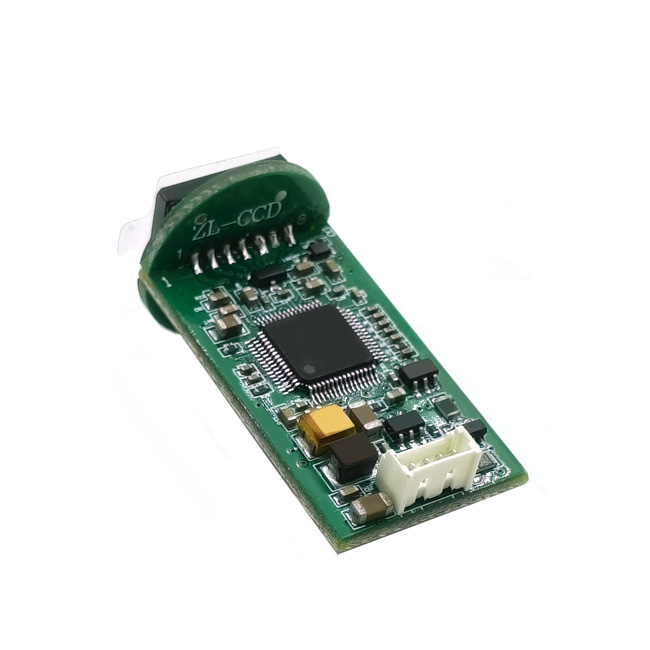

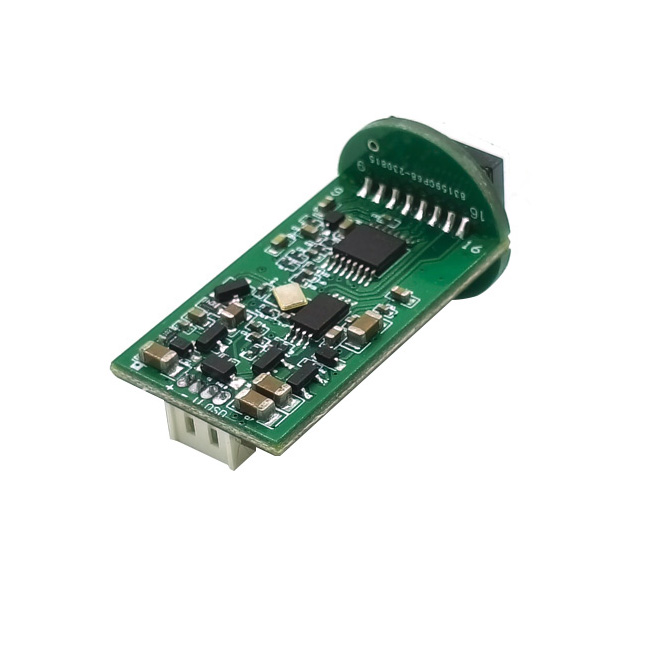

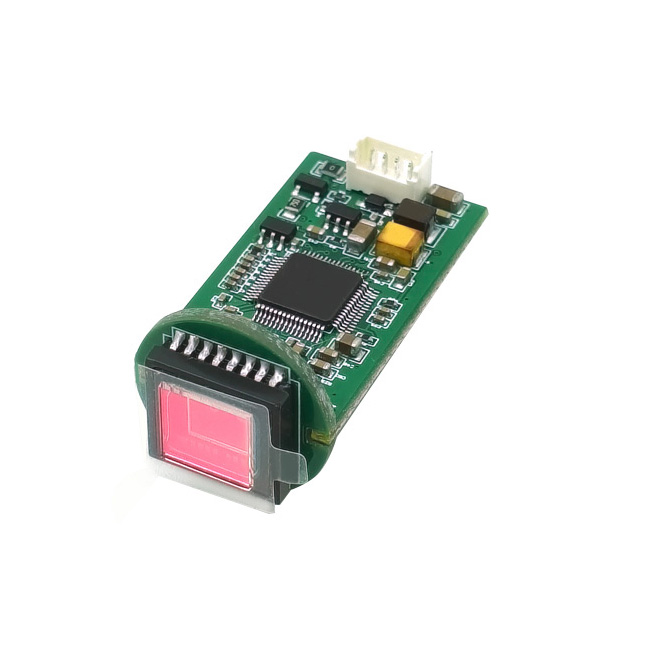

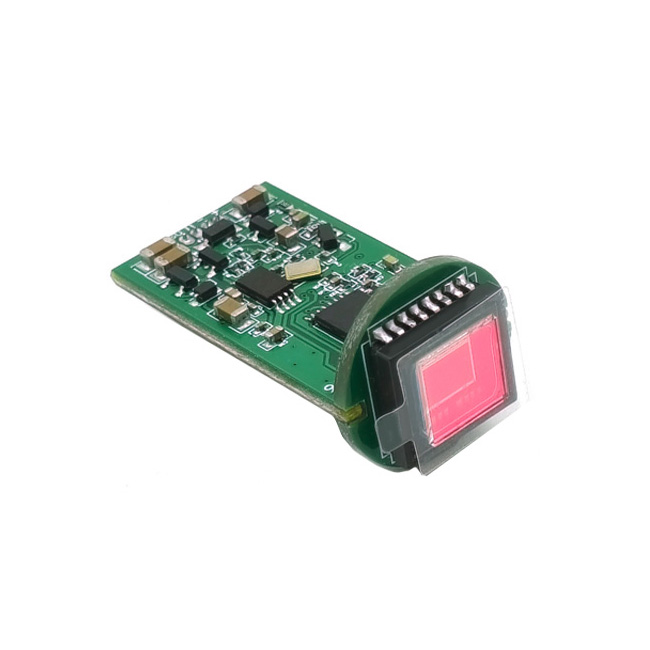

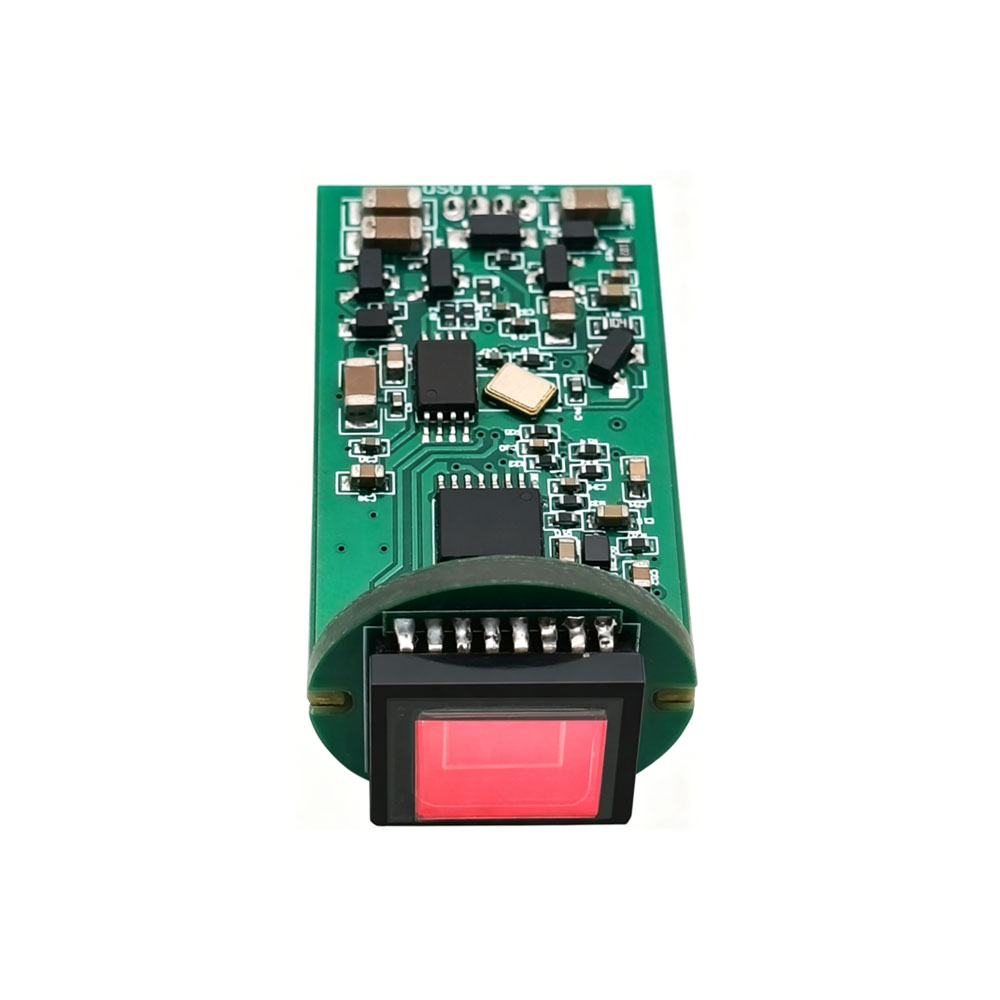

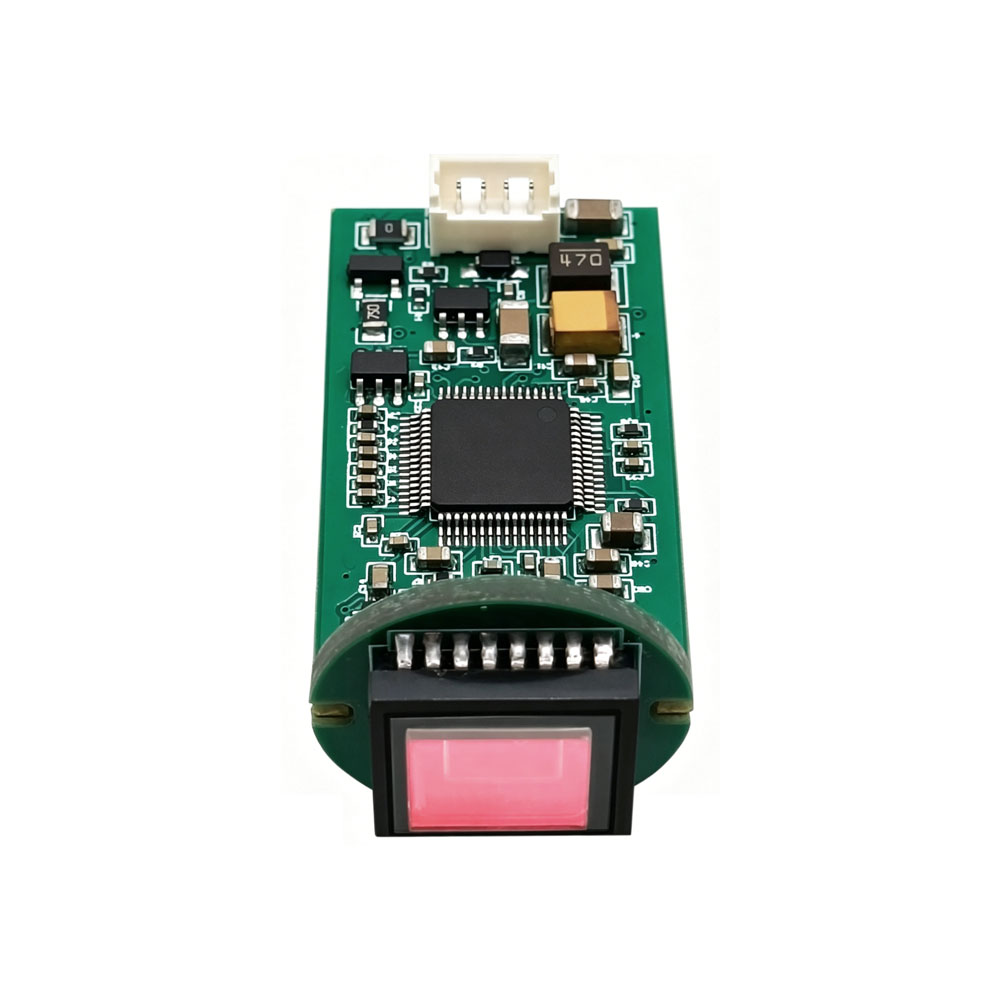

Compact, low-power T-type PCB design:The mini 18mm×36.5 mm board fits easily into space-restricted industrial devices, robotic arms, portable instruments, and embedded machine vision housings.
Industrial Machine Vision Systems:Ideal for product inspection, quality control, defect detection, and assembly line monitoring.
Embedded Security and Monitoring:Used in ATM machines, factory monitoring stations, facility surveillance, and equipment safety monitoring.
Automation and Robotics:Suitable for robot guidance, automation positioning, equipment feedback control, and robotic system imaging.
OEM / Custom Devices:Fits perfectly in instruments such as medical analyzers, measurement systems, visual inspection tools, and custom industrial equipment.
We support comprehensive customization services, including:
Lens type and field of view (FOV)
PCB size and layout
Interface type
Cable length
Shell size, shape, and material
Sensor upgrade (2MP/3MP/4MP/5MP/8MP/12MP)
