Technical Specifications
| Specification | Details |
|---|---|
| Sensor | 1/3.2″ |
| Pixel | 8MP |
| Compression format | MJPG/YUV2 |
| Frame rate | 3264×2488 @15fps |
| Audio | Support |
| Working voltage | DC 5V |
| Product size | 12mm×12mm |
| White balance | Automatic |
| Working temperature | <70°C |
| Power consumption | 0.25W |
| Model | HC-MU8MPAF-12 |
| Interface type | USB 2.0 |
| USB cable length | Default 2m(customizable) |
| Lens specifications | F.NO: 2±5%, Focal length: 3.57, Distortion: <1.5%, Component: 5E+IR |
| FOV | 75° |
| Supported OS | Winds/Mac OS/Linux/Android |
Product functions and features
- Wide compatibility: Works with Windows, Android, Mac OS, and Linux systems.
- Professional imaging: 8MP HD CMOS sensor supporting 3264×2488@15fps resolution with quick autofocus.
- Built-in microphone: Enables natural communication during video calls.

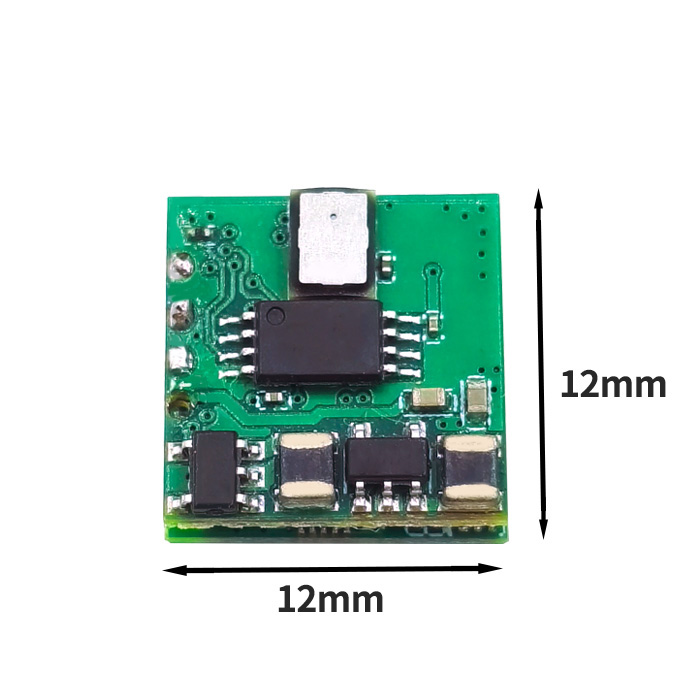

- Compact design: 12×12mm mini size for easy integration into industrial equipment.
- Eye Contact technology: Creates more natural eye contact during video calls for realistic communication.
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available.
Product application scenarios
This module, with its high performance, small size, and plug and play features, is the visual core of the next generation of smart devices and is widely used in:
Intelligent video conferencing system: embedded in conference tablets, video conferencing strips, laptops, achieving 4K high-definition picture quality, automatic focusing to ensure clear facial features of speakers, and eye contact function to make remote communication more immersive.
AI facial recognition and access control: applied to smart door locks, attendance machines, and access control systems, high resolution improves recognition accuracy, and automatic focusing adapts to users of different heights.
Embedded machine vision: integrated into automation equipment, microscopes, drones, medical instruments, for industrial automation tasks such as size measurement, defect detection, positioning guidance, etc.
Advanced security monitoring: As a concealed high-definition monitoring module, embedded in smart home devices such as smart speakers and televisions, it provides inconspicuous high-definition security monitoring.
Interactive retail and advertising: embedded with digital signage and interactive advertising machines to achieve customer facial attribute analysis, attention detection, and precise advertising push.
Online Education and Live Streaming: Providing compact audio and video solutions for high-quality online education platforms and live streaming equipment, enhancing the quality of teaching and interaction.
Intelligent video conferencing system: embedded in conference tablets, video conferencing strips, laptops, achieving 4K high-definition picture quality, automatic focusing to ensure clear facial features of speakers, and eye contact function to make remote communication more immersive.
AI facial recognition and access control: applied to smart door locks, attendance machines, and access control systems, high resolution improves recognition accuracy, and automatic focusing adapts to users of different heights.
Embedded machine vision: integrated into automation equipment, microscopes, drones, medical instruments, for industrial automation tasks such as size measurement, defect detection, positioning guidance, etc.
Advanced security monitoring: As a concealed high-definition monitoring module, embedded in smart home devices such as smart speakers and televisions, it provides inconspicuous high-definition security monitoring.
Interactive retail and advertising: embedded with digital signage and interactive advertising machines to achieve customer facial attribute analysis, attention detection, and precise advertising push.
Online Education and Live Streaming: Providing compact audio and video solutions for high-quality online education platforms and live streaming equipment, enhancing the quality of teaching and interaction.
Why choose our USB camera module?
- OEM/ODM customization capability: meets the customization needs of different industries, supports large-scale procurement and brand branding.
- Industrial grade reliability: ensuring stability during long-term operation.
- Global certification and customer case studies: enhancing customer trust and improving procurement decision-making efficiency.
- Flexible procurement and samples: Sample procurement (1-50 pcs) supports rapid testing and reduces development risks.Bulk purchases can enjoy price tiered discounts and support long-term cooperation.
- Fast delivery and global logistics: supporting fast shipping and global logistics distribution, helping enterprises shorten product development cycles.
