Technical Specifications
| Sensor | 1/4″CMOS |
|---|---|
| Resolution | 0.3MP (640×480 @50fps) |
| Signal Type | CVBS |
| Operating Voltage | DC 12V |
| Lens Specifications | F/ON: 2.4 | Viewing Angle: 175° |
| Operating Temperature | Up to 70°C |
| Interface | BNC |

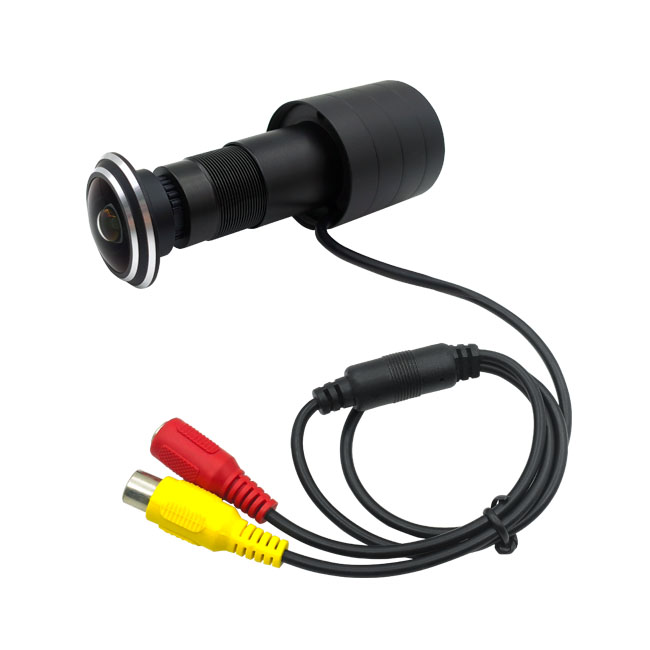

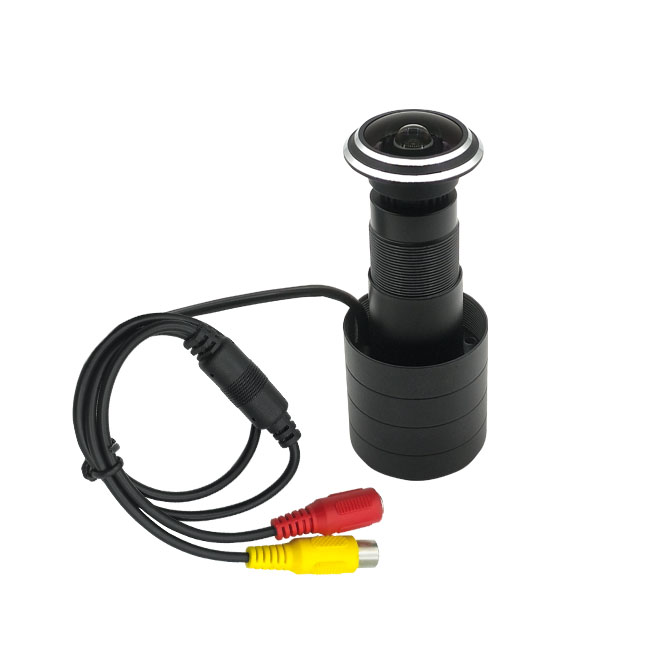

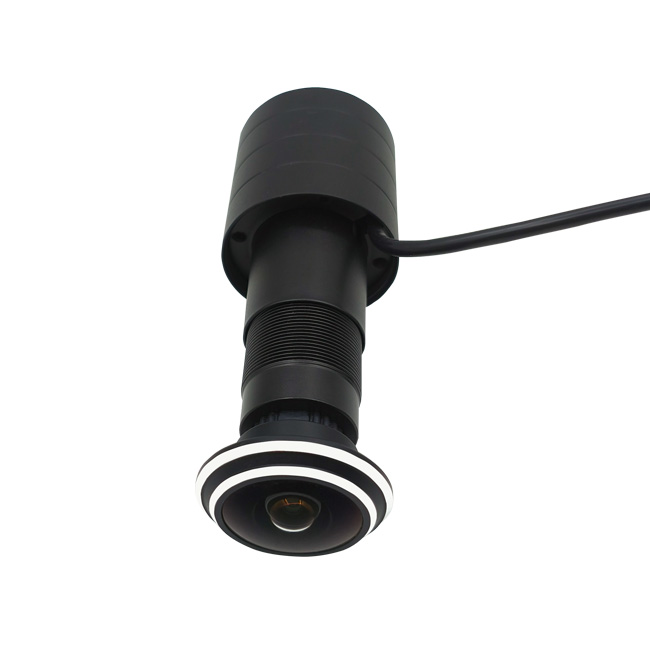

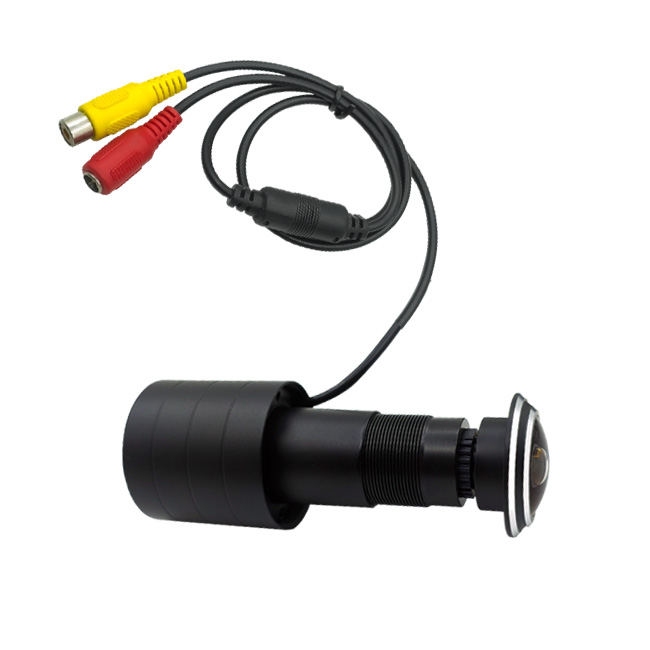

Key Features
- High definition imaging: 700 TV line resolution, providing clearer images than standard analog cameras.
- Ultra wide viewing angle: 1.7mm focal length lens, achieving a 175 ° wide field of view and covering a large area in front of the door.
- Durable and sturdy: Designed with an all metal casing, it is corrosion-resistant, resistant to damage, and has a longer service life.
- Adjustable length: The telescopic structure design (35-90mm) can flexibly adapt to anti-theft doors of various thicknesses.
- Standard BNC interface: compatible with the vast majority of DVR recorders, easy to install.
- Professional concealment: Mini fisheye shape, no different from ordinary cat eyes when viewed from outside, not eye-catching.
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP,16MP).
