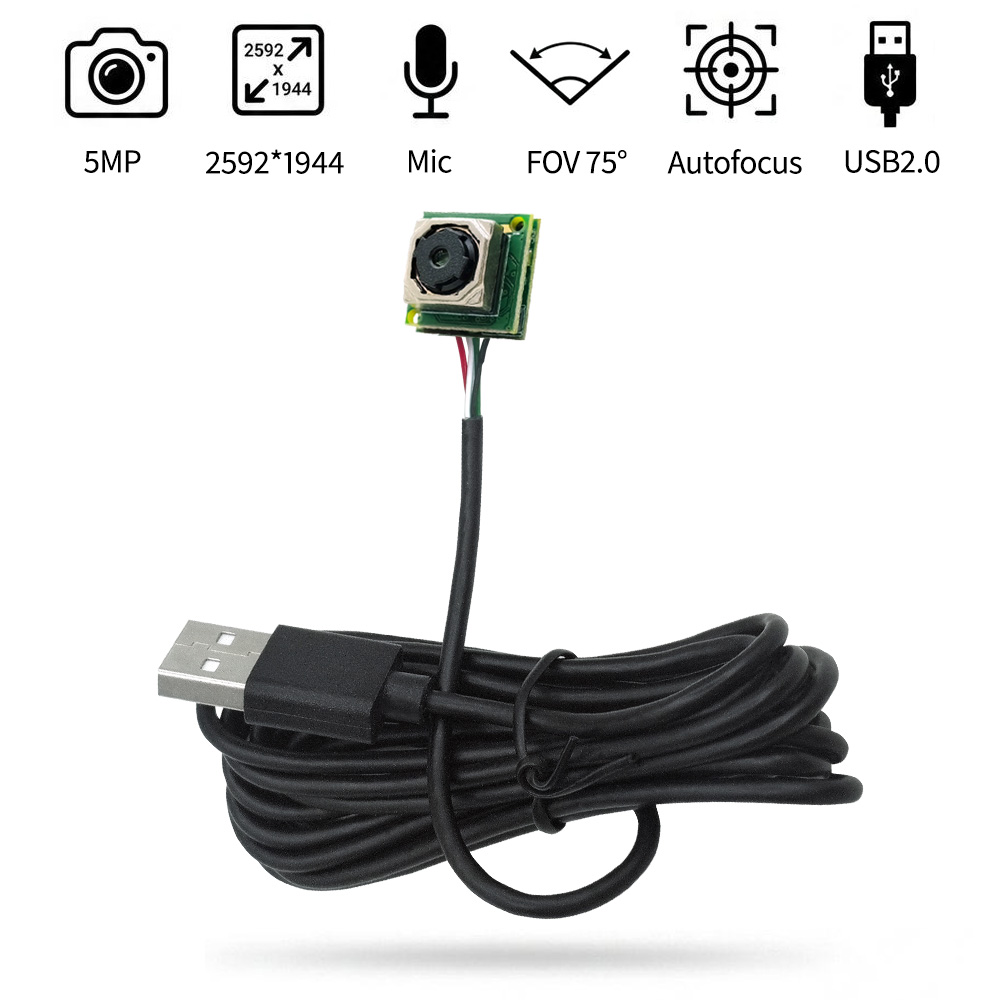

5MP UVC Camera Autofocus Mini USB Camera Module
5MP UVC Camera Autofocus Mini USB Camera Module - Image 2
5MP UVC Camera Autofocus Mini USB Camera Module - Image 3
5MP UVC Camera Autofocus Mini USB Camera Module - Image 4
5MP UVC Camera Autofocus Mini USB Camera Module - Image 5

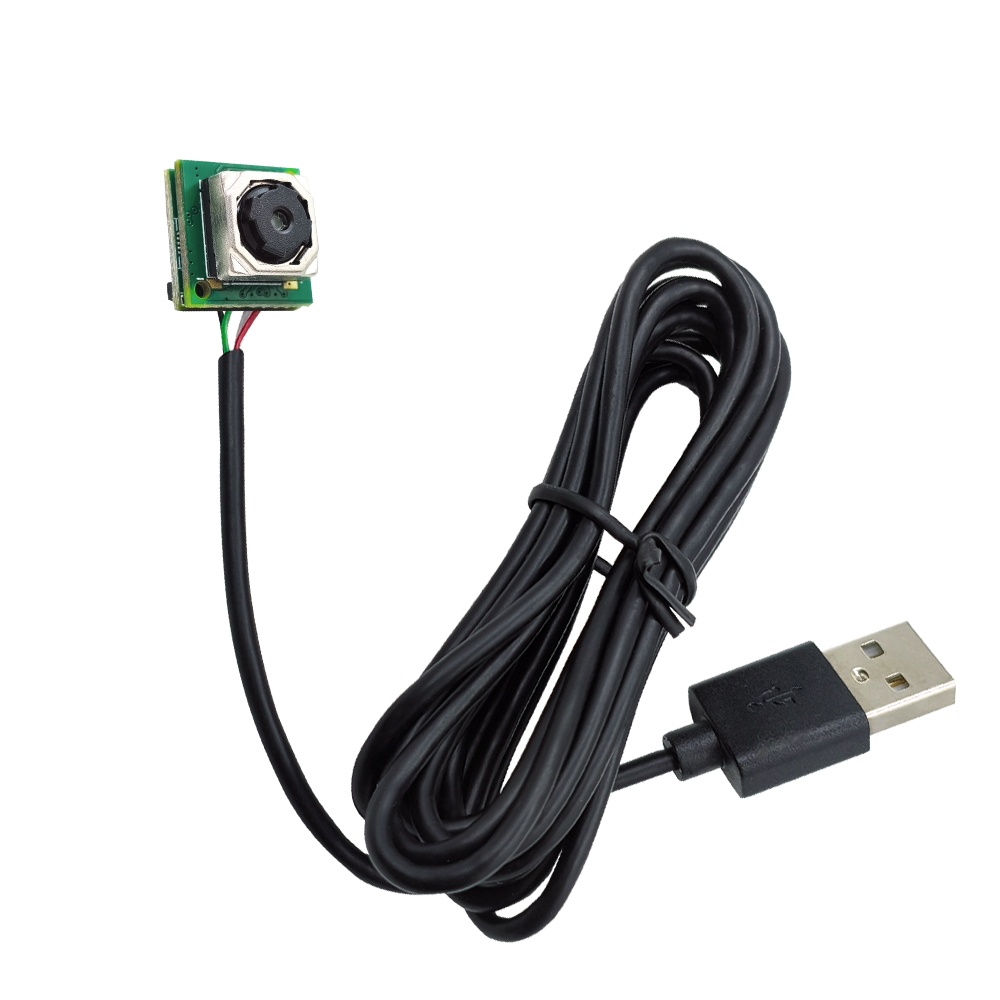

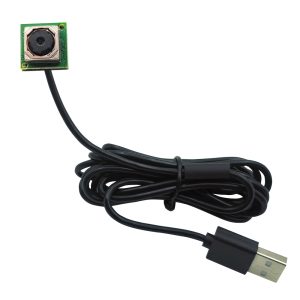

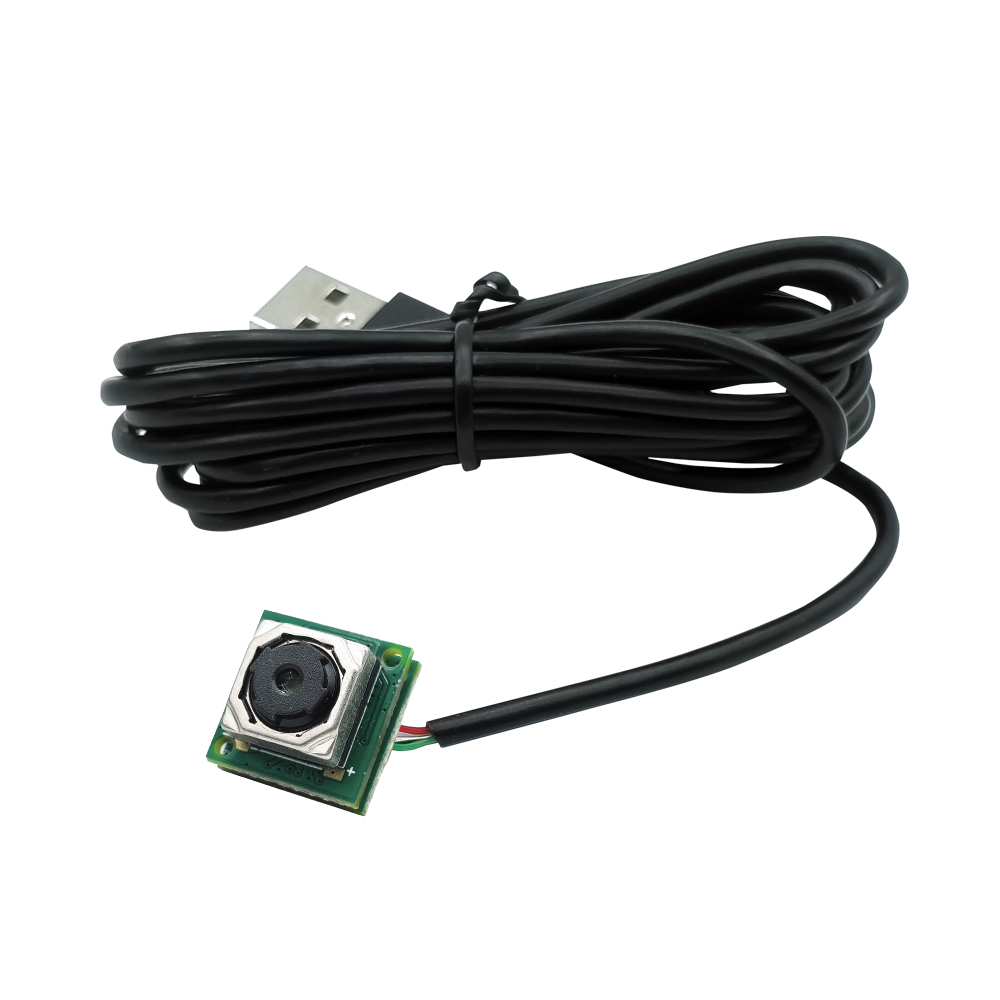

5MP UVC Camera Autofocus Mini USB Camera Module

$26.69

This USB camera module features a high-resolution 5MP CMOS sensor, a high-speed micro USB interface, and UVC plug-and-play compatibility. With its compact PCB size, autofocus, and excellent low-light performance, it is designed for industrial electronics, embedded devices, machine vision systems, video conferencing terminals, robotics, and smart IoT applications. It provides stable, clear, and fast imaging performance for OEMs and ODMs worldwide.

Availability: 2000 in stock

Category: Brand:

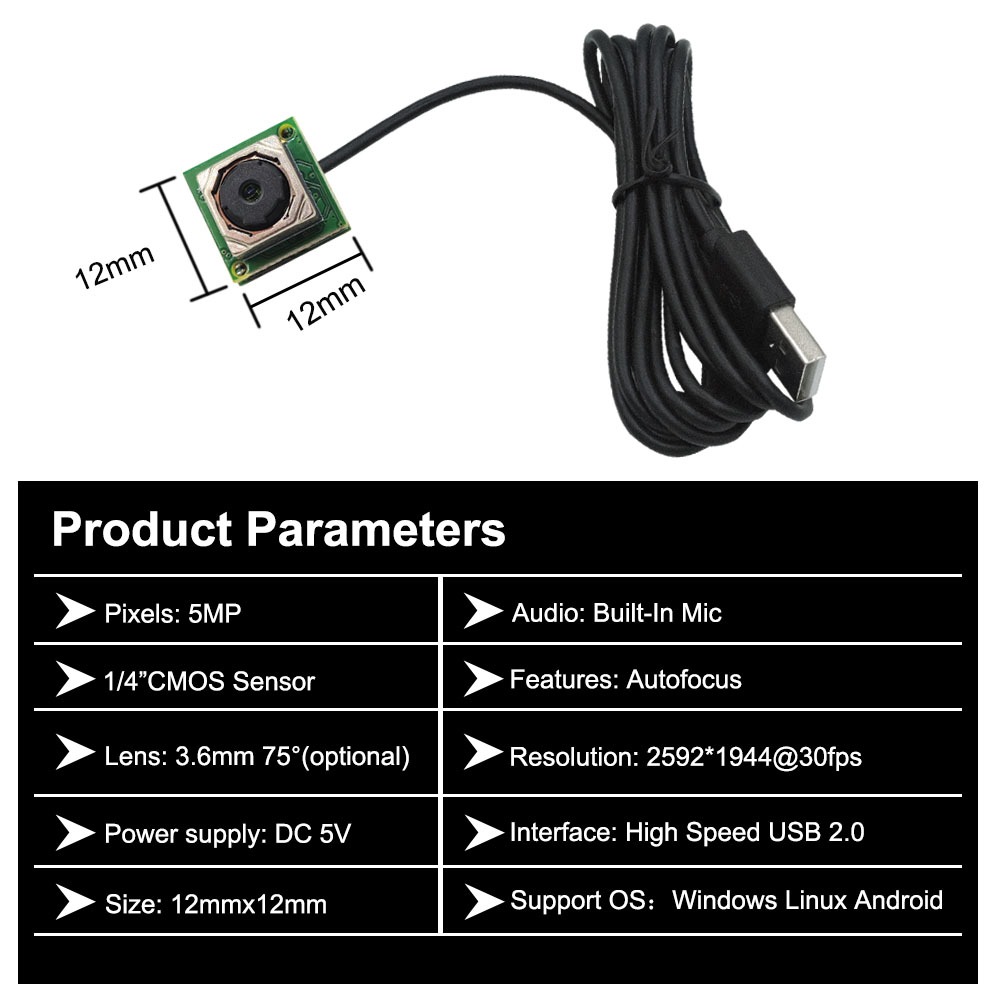

Technical Parameters

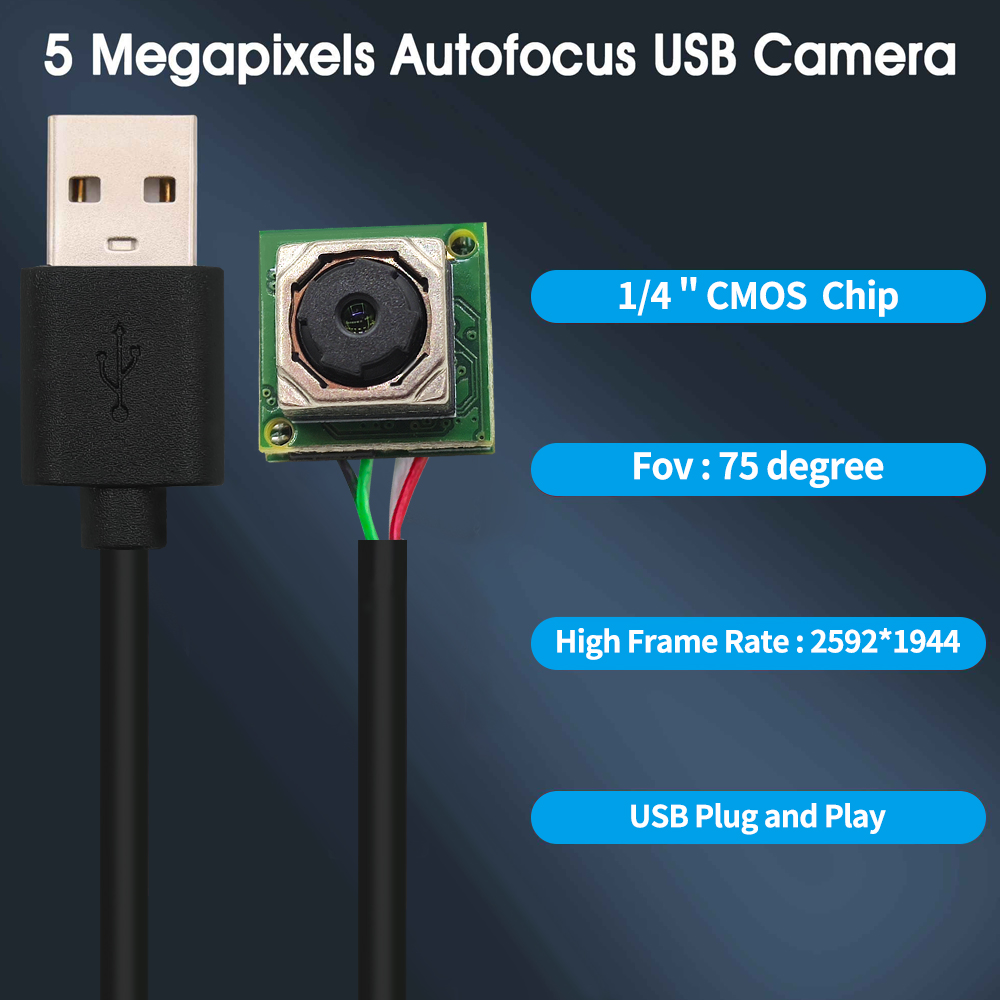

Sensor1/4″
Pixel5MP
Compression formatMJPG/YUV2
Frame rate2592×1944 30fps
Audiosupport
Operating voltageDC 5v

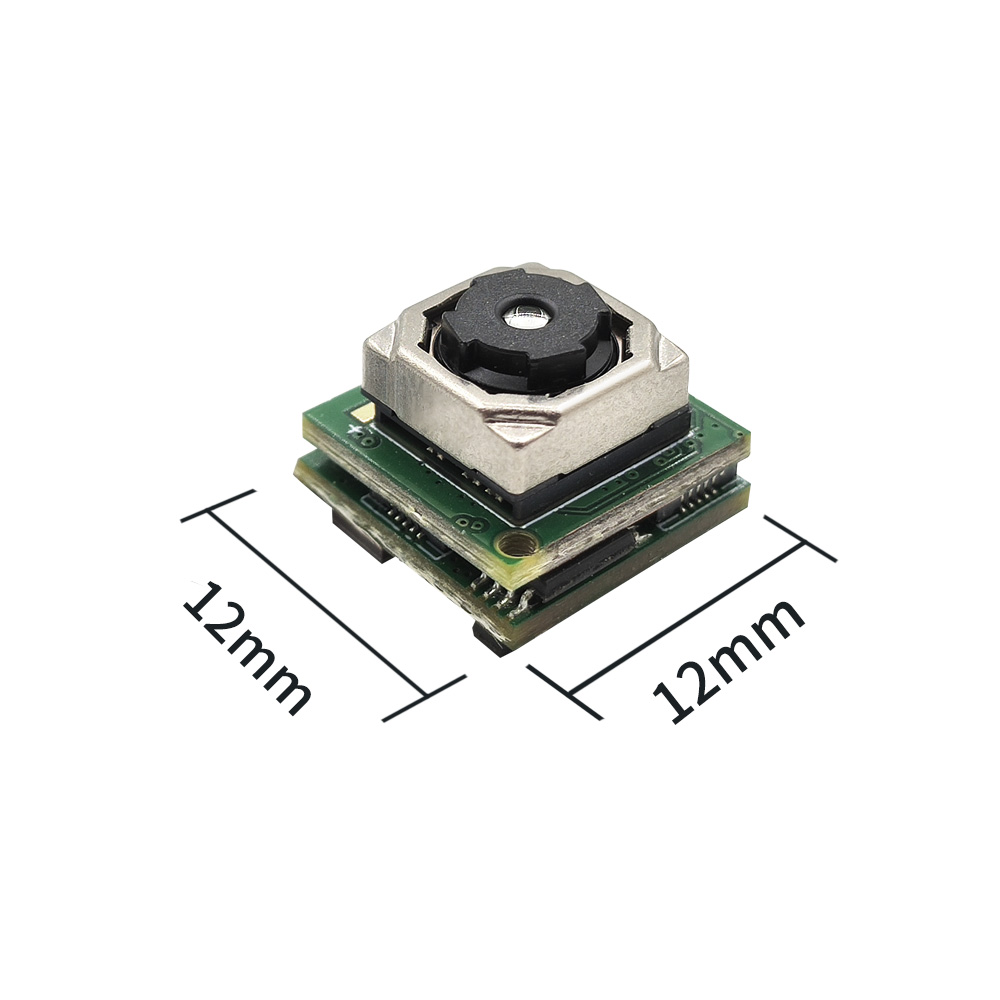

Product dimensions12mmx12mm
White balanceAutomatic
Operating temperature<70°
Power consumption0.25w
Model NoHC-MU5MPAF-12
Interface typeHigh Speed USB 2.0
USB cable lengthDefault 2m(customizable)
LensEFL:3.57mm
F.ON:2.0
Distortion: <1.5%
FBL:4.1mm
FOV75°
Support OSWinXP/Mac OS/Linux/Win7/Win8/Win10/Android
Core Functional Features
  • 5-megapixel high-sensitivity CMOS with 2560X1440@30fps smooth output.

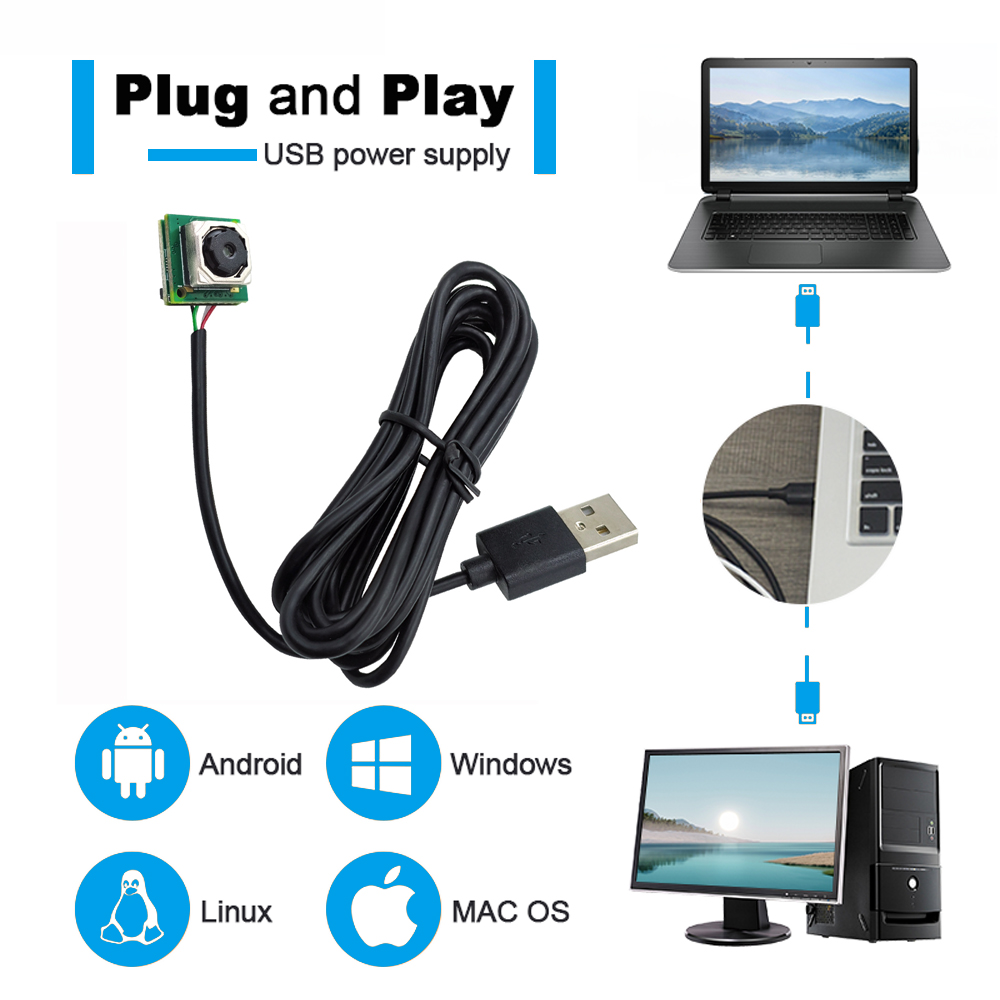

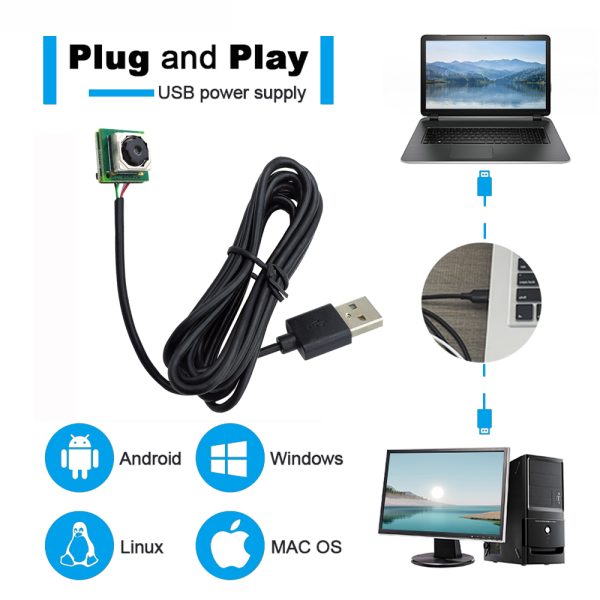

  • UVC standard protocol support for plug-and-play operation.
  • Compatible with Windows, Android, Mac OS, Linux and other operating systems.
  • Intelligent autofocus system: Equipped with advanced autofocus lens, it can quickly and quietly complete autofocus.
  • Eye contact technology for more natural video communication.
  • Audio synchronization transmission for natural interactive experience.
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available.
Product application scenarios

This high-performance camera module is designed for fields that have strict requirements for image quality, size, and intelligence:
Facial recognition and access control system: embedded intelligent door locks, attendance machines, and access control panels for accurate and fast identity authentication.
High quality video conferencing and live streaming: integrated into video conferencing soundbars, laptops, and external cameras, providing high-definition image quality and autofocus, achieving true “eye contact” effect.
Online education and remote collaboration: used for document shooting, experimental demonstrations, and other scenarios, the autofocus function ensures that the lecture content is always clear.
Embedded machine vision: as an image acquisition unit for machine vision projects such as industrial automation, size measurement, QR code recognition, and simple AI detection.
High end intelligent devices: integrated into drones, robots, medical equipment,etc., serving as the core visual components for their environmental perception.

Pixel

5MP

Frame rate

2592×1944 30fps

Interface type

USB 2.0
