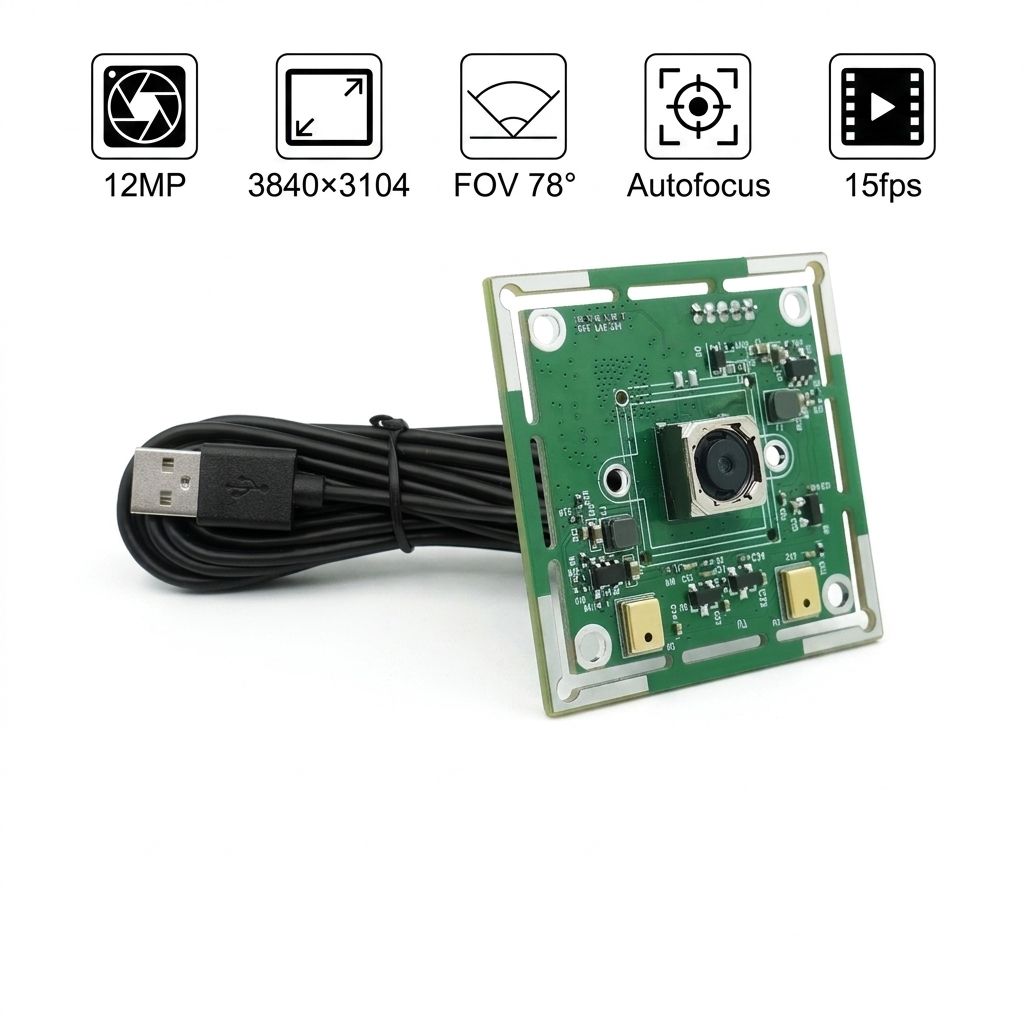

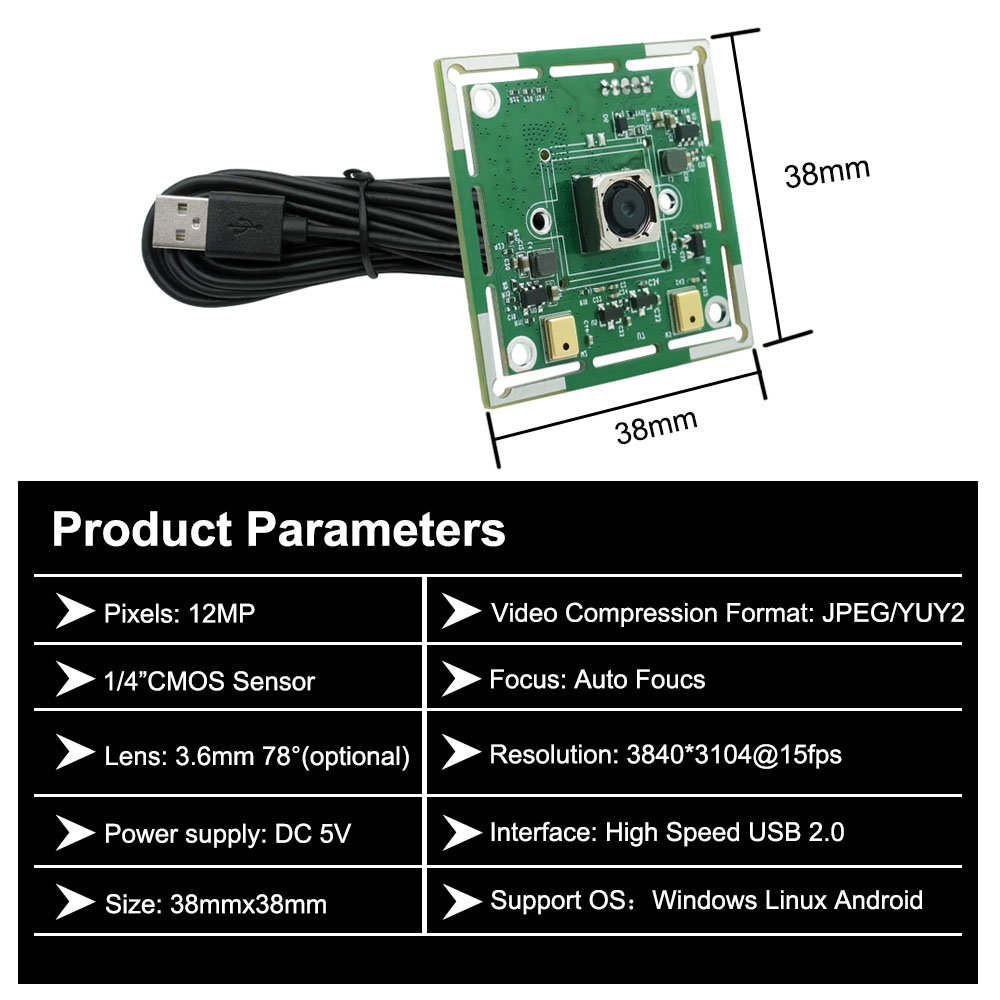

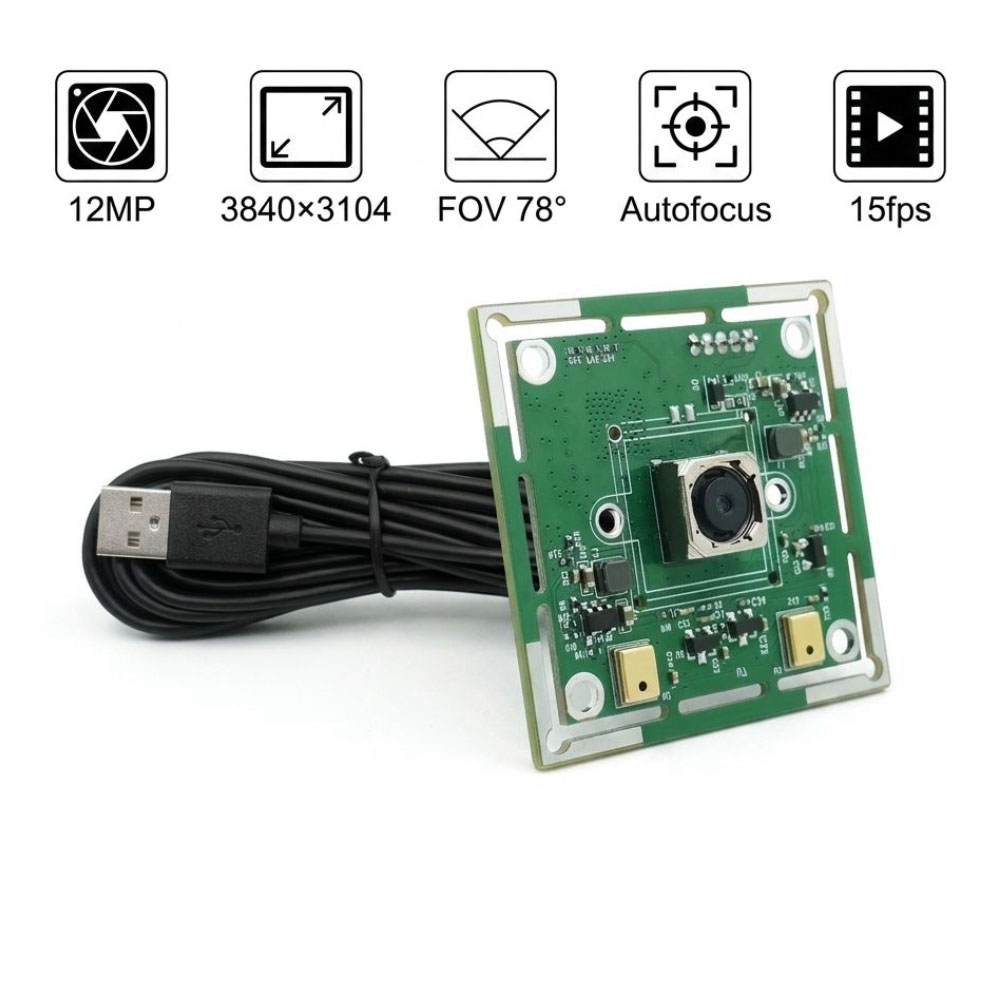

Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor | 1/4″ CMOS |
| Pixel | 12MP |
| Compression format | JPEG/YUY2 |
| Frame rate | 3840×3104@15fps |
| Working voltage | DC 5V |

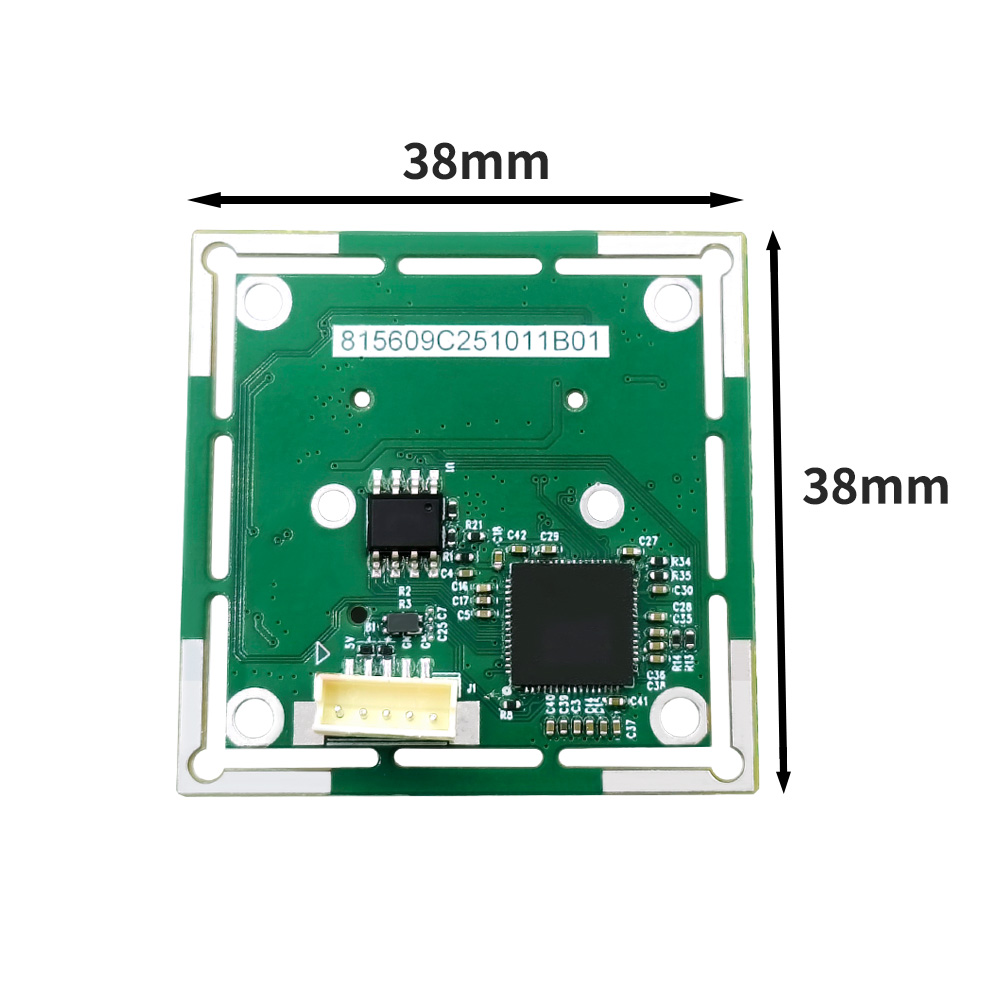

| Product size | 38x38MM |
| Focus | Autofocus Lens |
| White balance | Automatic |
| Working temperature | <70°C |
| Power consumption | 0.25w |
| Model | HC-M12MPAF-38 |
| Interface type | USB 2.0 |
| FOV | 78 Degree |
| Supported OS | WinXP/Mac OS/Linux/Android |
Product Features
- Ultra-high resolution 12MP 4K imaging: Supports 12MP high-resolution output and 4K video performance, providing clear image details for machine vision inspection, recognition systems, and intelligent analysis.
- USB UVC plug-and-play compatibility: Fully compliant with the USB UVC standard, requiring no additional drivers, and supports Windows, Linux, Android, and embedded systems.
- Mini size suitable for embedded and space-constrained designs: Its compact 38x38mm design is ideal for applications with limited space. As a mini 4K camera module, it helps OEM customers maintain professional-grade image quality while reducing mechanical design limitations.
- Fast and Accurate Focusing: Equipped with advanced autofocus (AF) algorithms, it can quickly lock onto the subject and continuously track it, ensuring clear and sharp images even with movement or scene changes.
Applications
- Industrial machine vision camera systems
- Face recognition cameras for access control
- Automotive camera modules for surveillance and intelligent systems
- Artificial intelligence vision and edge computing devices
- Self-service kiosks and smart terminals
- Medical and laboratory imaging equipment
