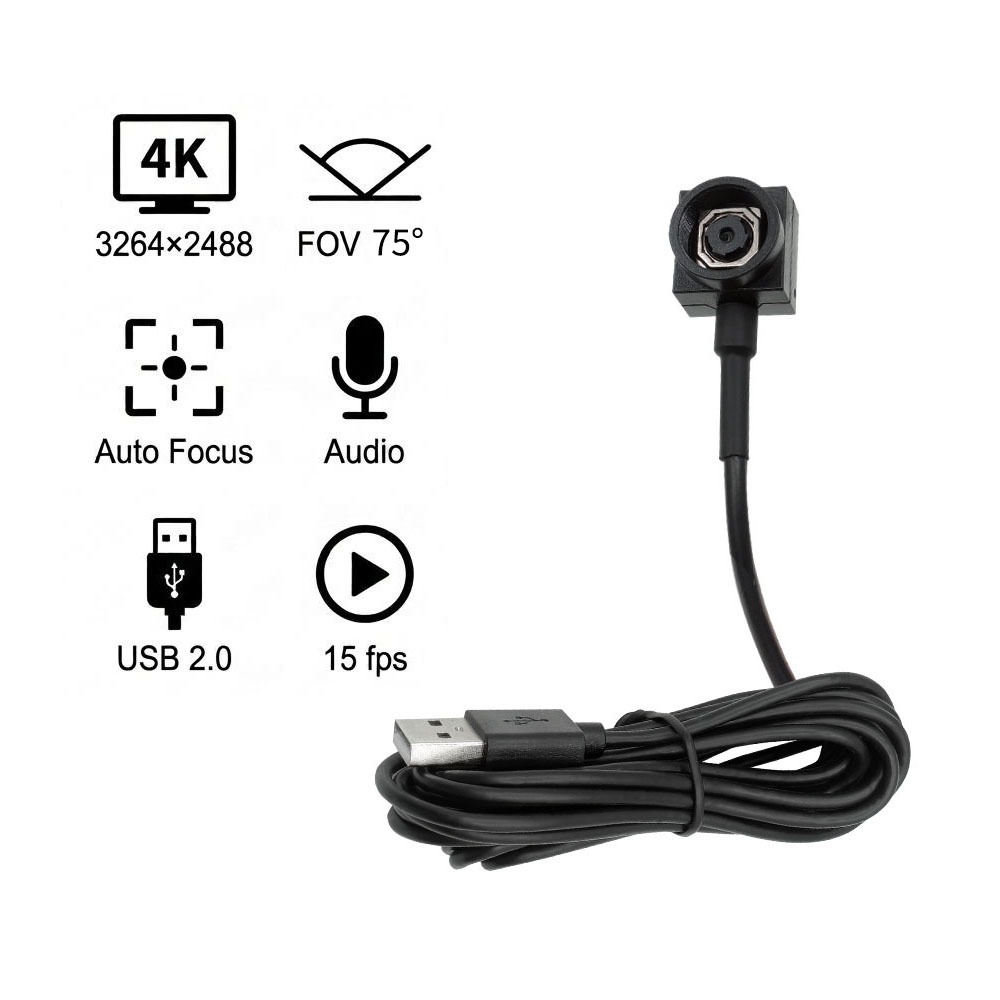

Technical Specifications
| Sensor | 1/3.2″CMOS |
|---|---|
| Pixel | 8MP |
| Resolution | (3264×2488 @ 15fps) |
| Compression Format | MJPG/YUV2 |
| Focus type | Auto-focusing |
| Audio | Support |
| Power Requirements | DC 5V, 0.25W |
| Operating Temperature | <70°C |
| Interface | USB 2.0 |
| Lens | Focal Length: 3.57mm |
| FOV | 78° |
| Compatibility | Windows , Linux, Android, Mac |
| Supported Software | Zoom, Teams, Webex, YouTube,Facebook Live |
Product functions and features

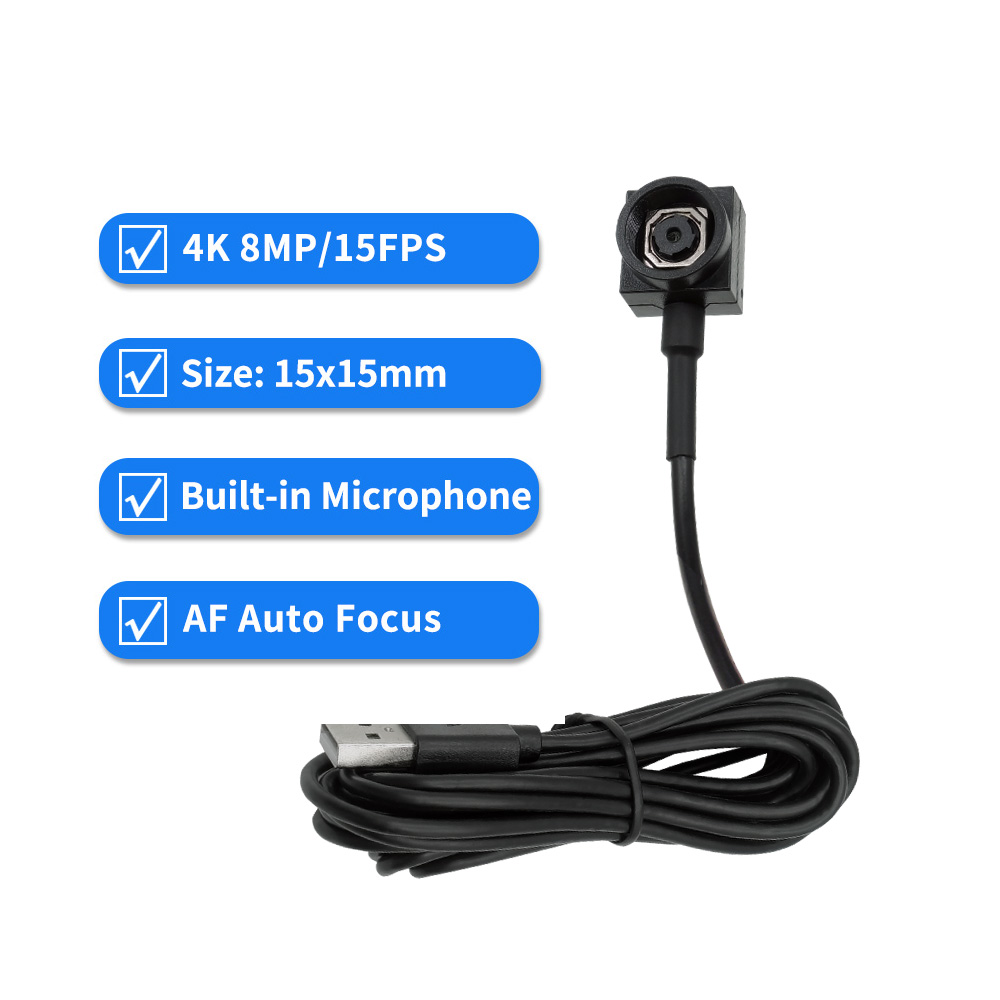

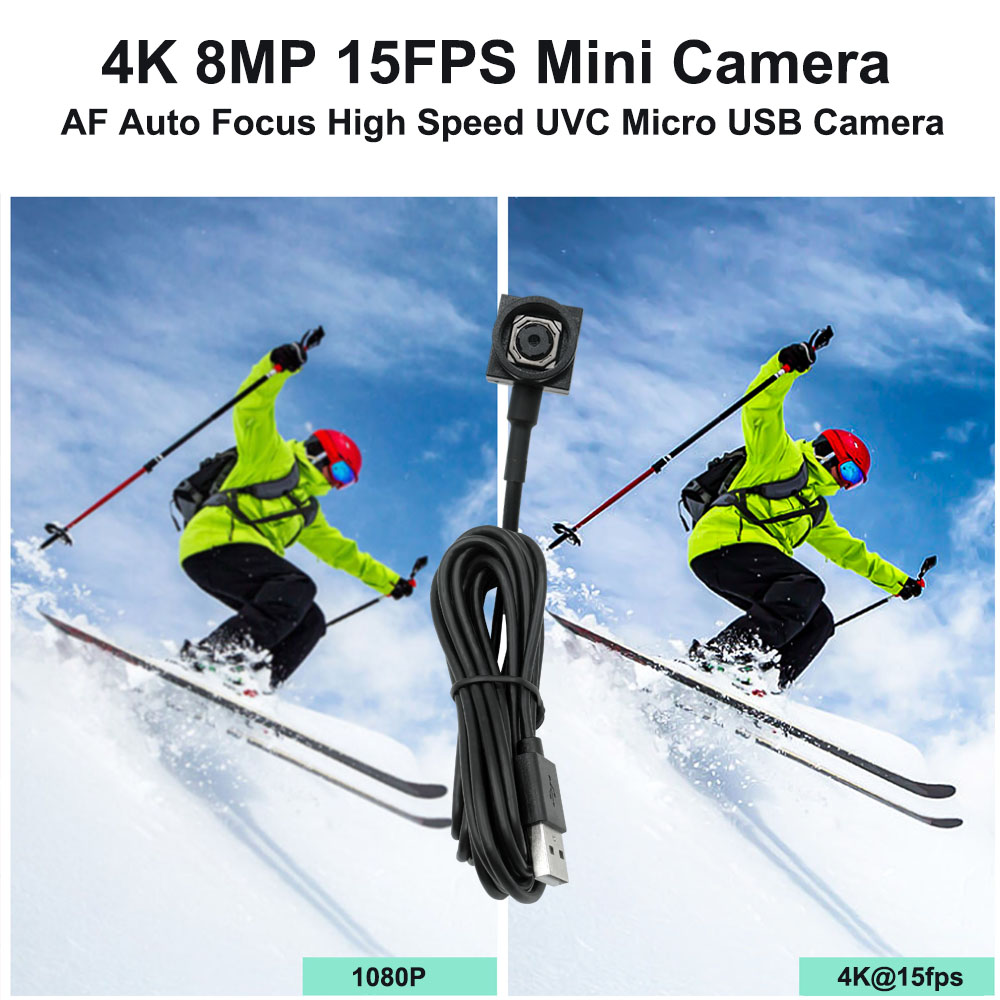

4K Ultra High Definition Image Quality: With 8 million pixels of ultra-high resolution and support for 3840×2488 resolution, the image details are vividly displayed, and the color reproduction is realistic and vivid, bringing a stunning visual experience that far exceeds ordinary 1080P cameras.

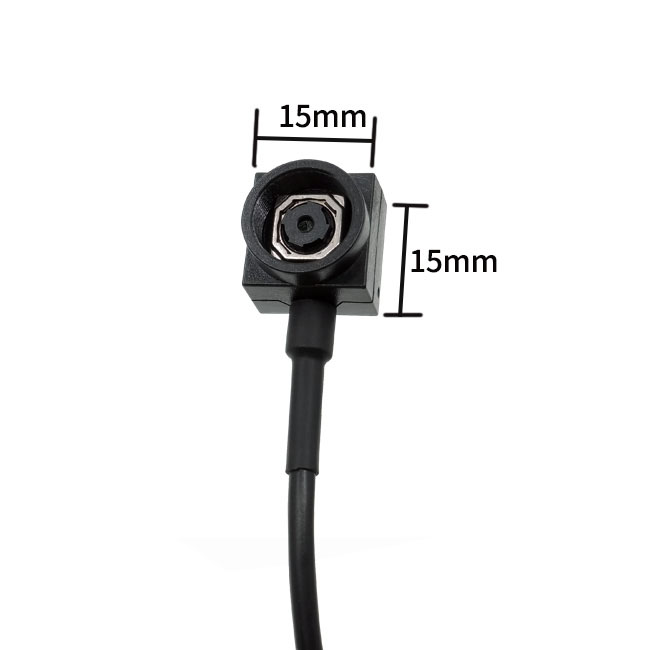

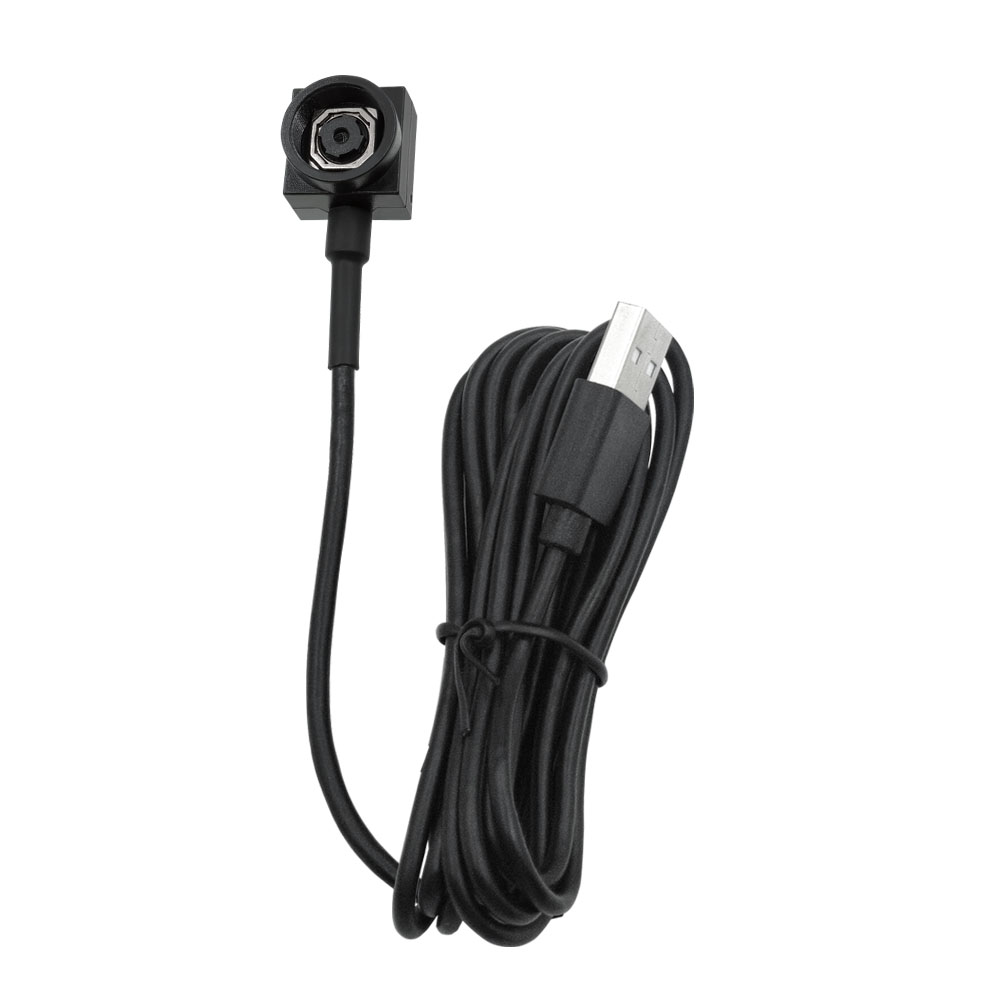

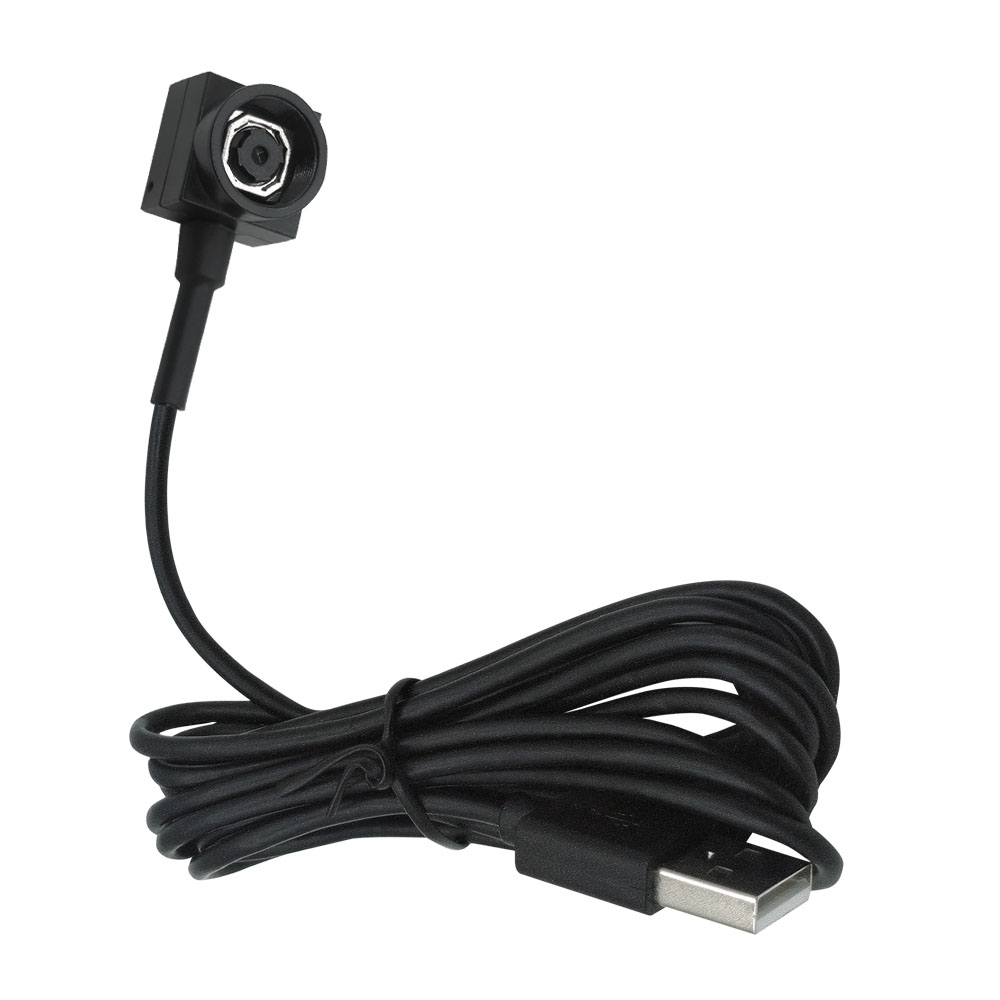

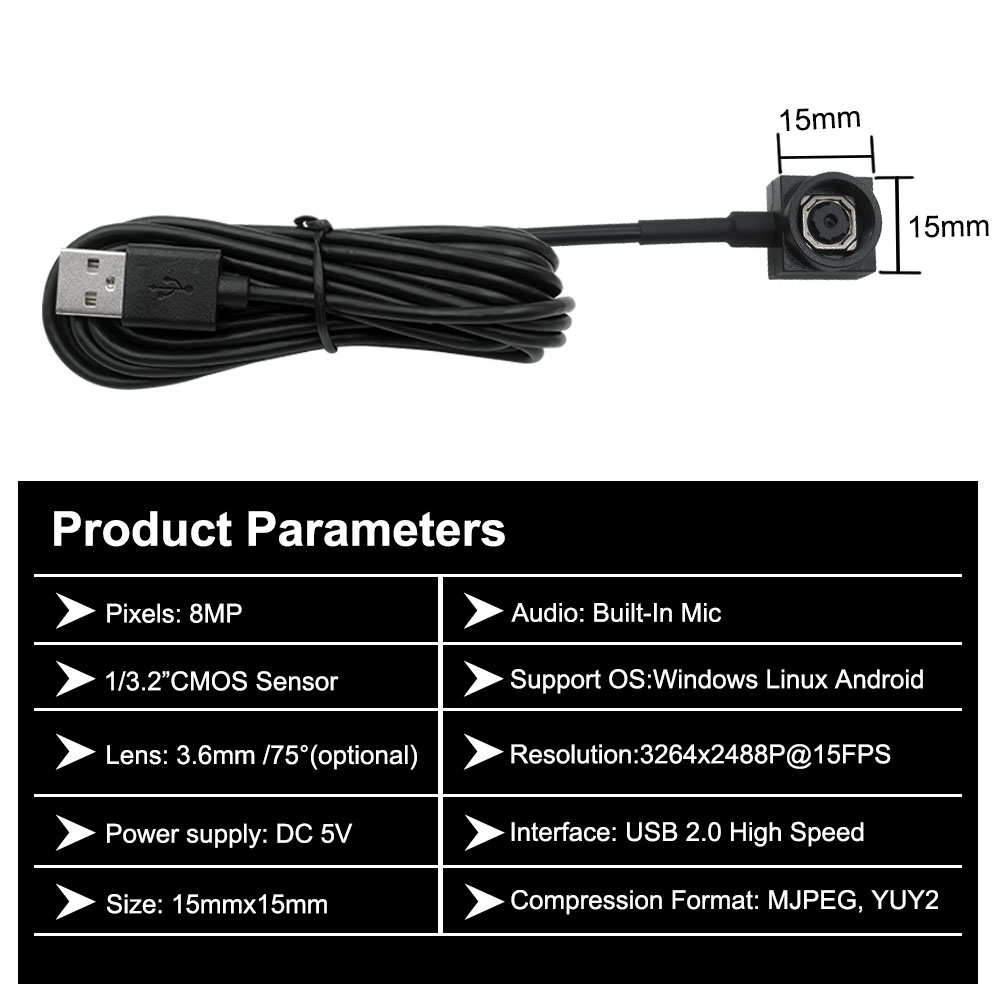

Ultimate Mini, Hidden and Invisible: The 15mm x 15mm cube design is as lightweight as a coin and can be regarded as a model of industrial design. It can be seamlessly integrated above laptop screens, monitor borders, or video conferencing all-in-one machines, almost invisible, maximizing device integrity and aesthetics.
Intelligent autofocus system: equipped with high-speed autofocus (AF) function, it can quickly and smoothly focus on the subject’s face or display objects. Even if you move back and forth, the image can always remain clear and sharp, bidding farewell to blurry and awkward situations.
Built in noise cancelling microphone: Equipped with an omnidirectional high-sensitivity microphone, it can effectively capture human voices and suppress environmental background noise. Clear voice calls and recordings can be achieved without the need for additional equipment, making communication seamless and smooth.

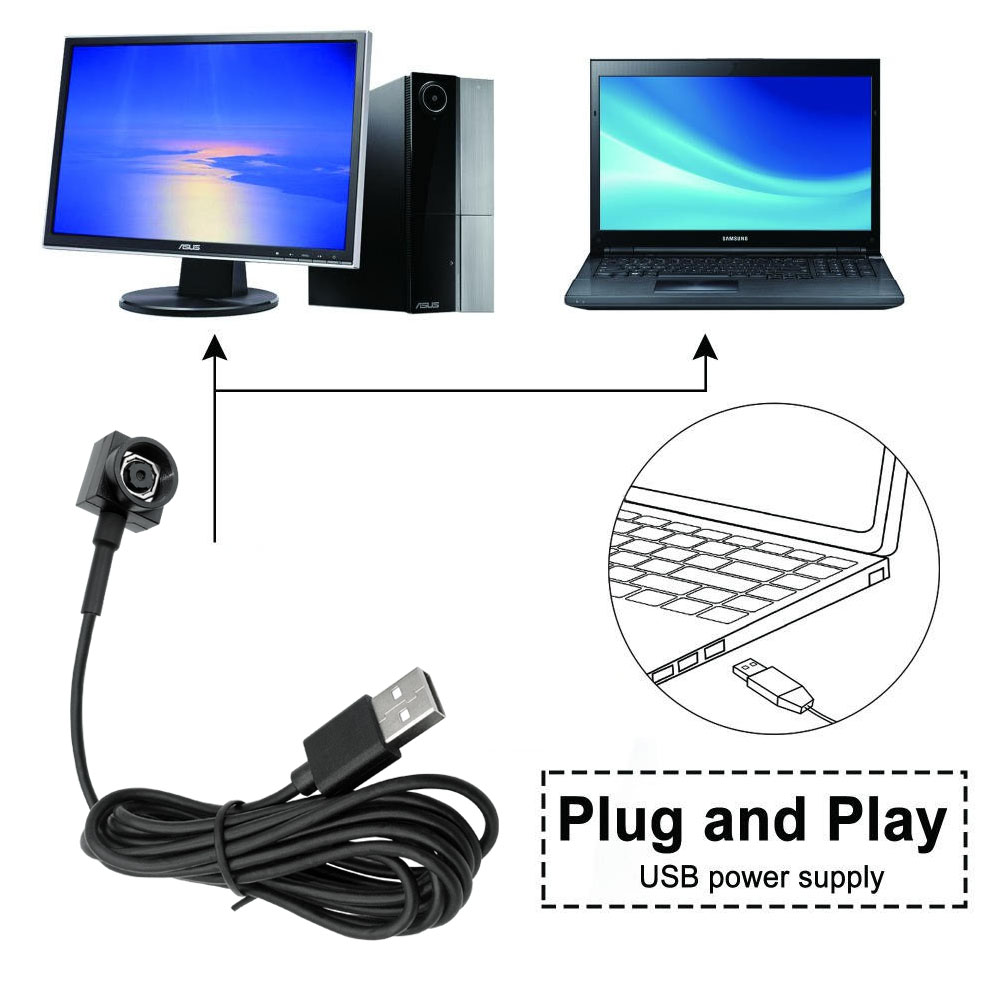

Widely compatible, plug and play: using standard USB 2.0 interface (high-speed transfer sufficient to support 4K image quality), compatible with Windows, macOS, and mainstream Linux systems.
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Cable length: Custom cable length (can be customized to 1.5m/2.0m).
3. Pixel customization: Provides different resolution and frame rate models (such as 640*480, 1280*720, 1920*1080, 2560*1440).
4.Customization Services: USB camera module, AHD camera module, CVBS camera module, wired webcam module, wireless wifi camera module, etc.
5. Product size is 6mmX6mm, 12mmX12mm, 23mmX23mm, 28mmX28mm, 32mmX32mm, 38mmX38mm, etc.At the same time, the size can be extremely small, Our AHD / USB / CVBS camera module without storage and transmission is extremely small and the smallest of its kind on the market.
Applications
Intelligent self-service terminal systems
Retail POS terminals
Industrial controllers
Robotics applications
Medical diagnostic equipment
Security and access control systems
Artificial intelligence machine vision equipment
Embedded IoT hardware
Barcode scanning and QR code scanning
Facial recognition/authentication
Telemedicine imaging
Robot navigation
Quality inspection and defect detection
