Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | 1/4″COMS |
| Pixel | 1MP |
| Compression format | MJPG/YUV2 |

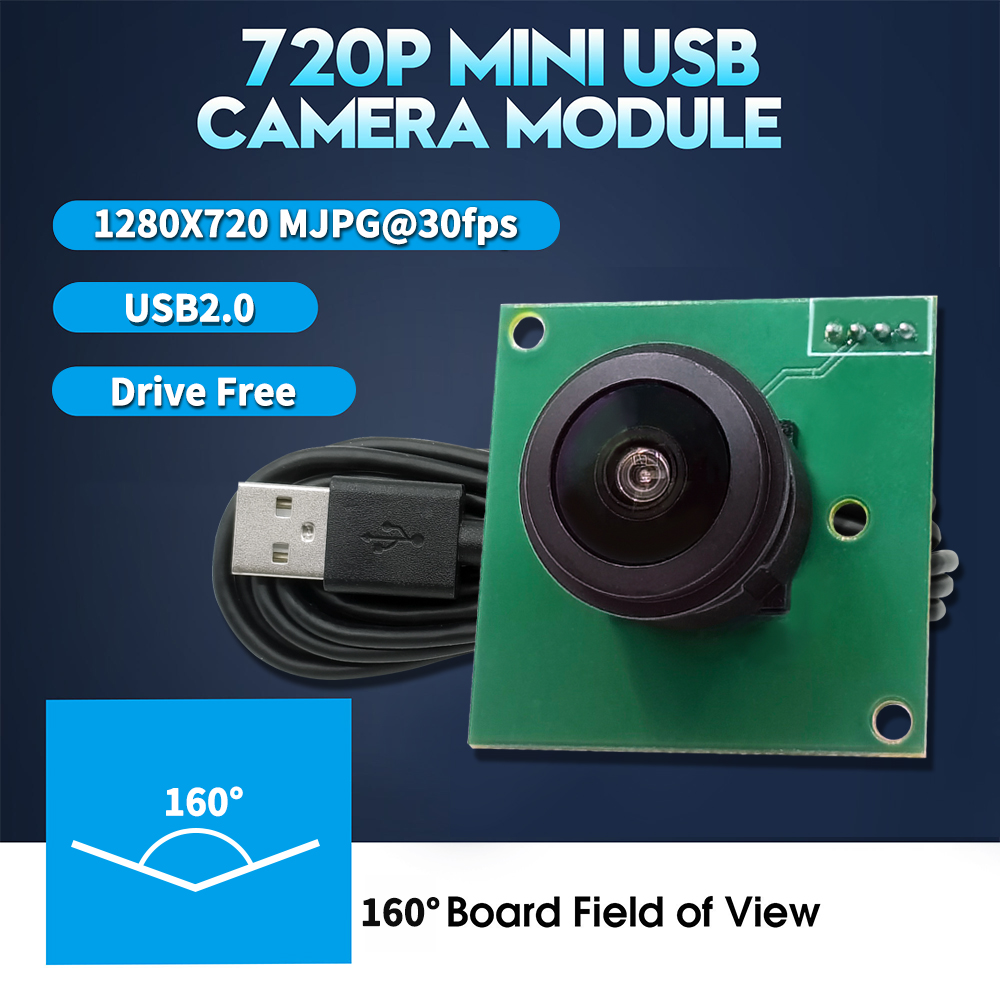

| Frame rate | 1280×720 30fps |
| Audio | none |
| Operating voltage | DC 5v |

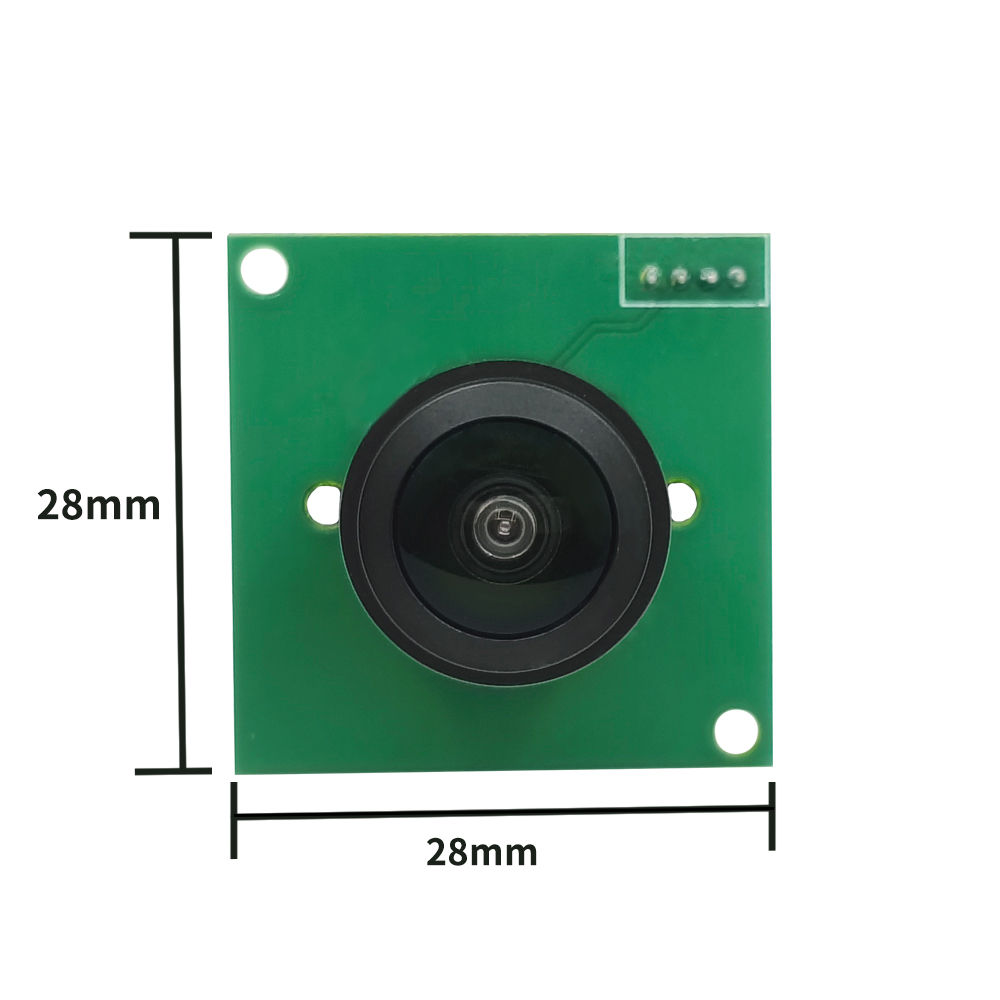

| Dimensions | 28mmx28mm |
| White balance | Automatic |
| FOV | 160° |
| Operating temperature | <70°C |
| Power consumption | 0.25w |
| Model No | HC-MU1MP1.7-28 |
| Interface type | USB2.0 |
| Supported OS | WinXP/Mac OS/Linux/Win7/Win8/Win10/Android |
Key Features
- 160° Ultra-Wide Angle Fisheye Lens: The ultra-wide angle fisheye lens allows a single camera to cover an entire area, reducing the number of cameras needed for comprehensive surveillance.
- 1 Megapixel High-Definition Output: 1-megapixel resolution ensures clear and stable images while reducing bandwidth usage.

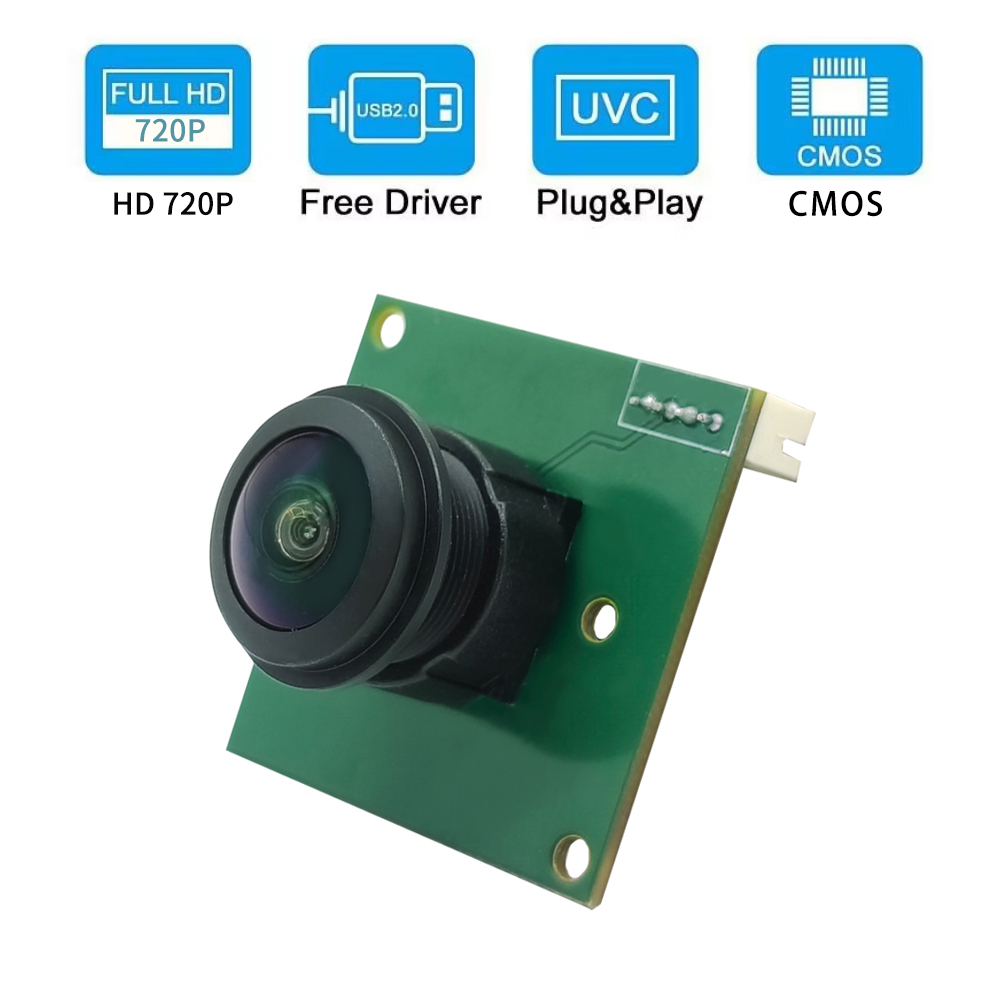

- Plug-and-Play Analog Interface: Compatible with the UVC driverless protocol, it can be quickly integrated into existing systems, saving engineering time.
- OEM/ODM Support: Ideal for manufacturers requiring customized USB camera modules, including lens customization, housing design, field-of-view adjustment, and PCB board modifications.
Application Scenarios
The products are used in various machine vision and equipment monitoring, such as: ATM teller monitoring cameras, printers, advertising machines, all-in-one machines, electronic scales, cranes, SMT machines, automatic welding equipment, fire hoses, external law enforcement instruments, external Android phone camera modules, medical imaging equipment, teaching tablet camera modules, industrial automation monitoring, smart retail cabinets, video conferencing cameras, embedded vision modules, industrial inspection cameras, smart access control modules, educational hardware cameras, live broadcast equipment modules, drone vision modules, robot vision sensors, law enforcement recorder cores, smart home cameras, IoT visual terminals, computer cameras, security monitoring cameras, coal-fired boiler flame monitoring, comparison equipment, Grohe and other embedded machine equipment.
