| Feature | Specification |
|---|---|
| Sensor | 1/2.9″CMOS |
| Resolution | 2MP (1920×1080 @ 30fps) |
| Compression Format | MJPG/YUV2 |
| White balance | Automatic |
| Audio | support |
| Power Requirements | DC 5V, 0.25W |

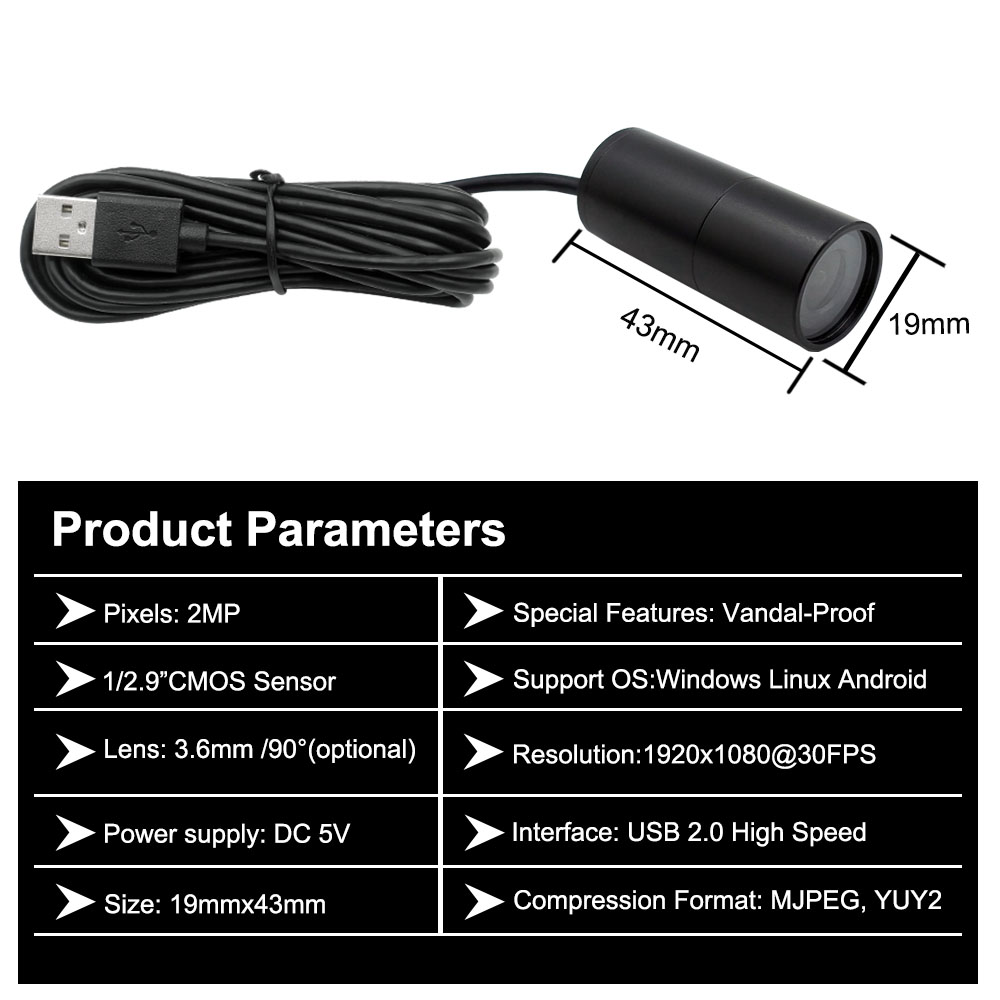

| Dimensions | 19mm x 43mm |
| Operating Temperature | <70°C |
| Lens | EFL: 3.6mm, F/2.2, |
| FOV | 90° |
| Compatibility | Windows/Mac OS/Linux/Android |
| Interface | USB 2.0 |
| Product Model | HCU-BT182 |
- 1080P Full HD Image Quality: Built-in 2-megapixel high-definition CMOS sensor, supporting up to 1920×1080 pixels at 1080@30fps.

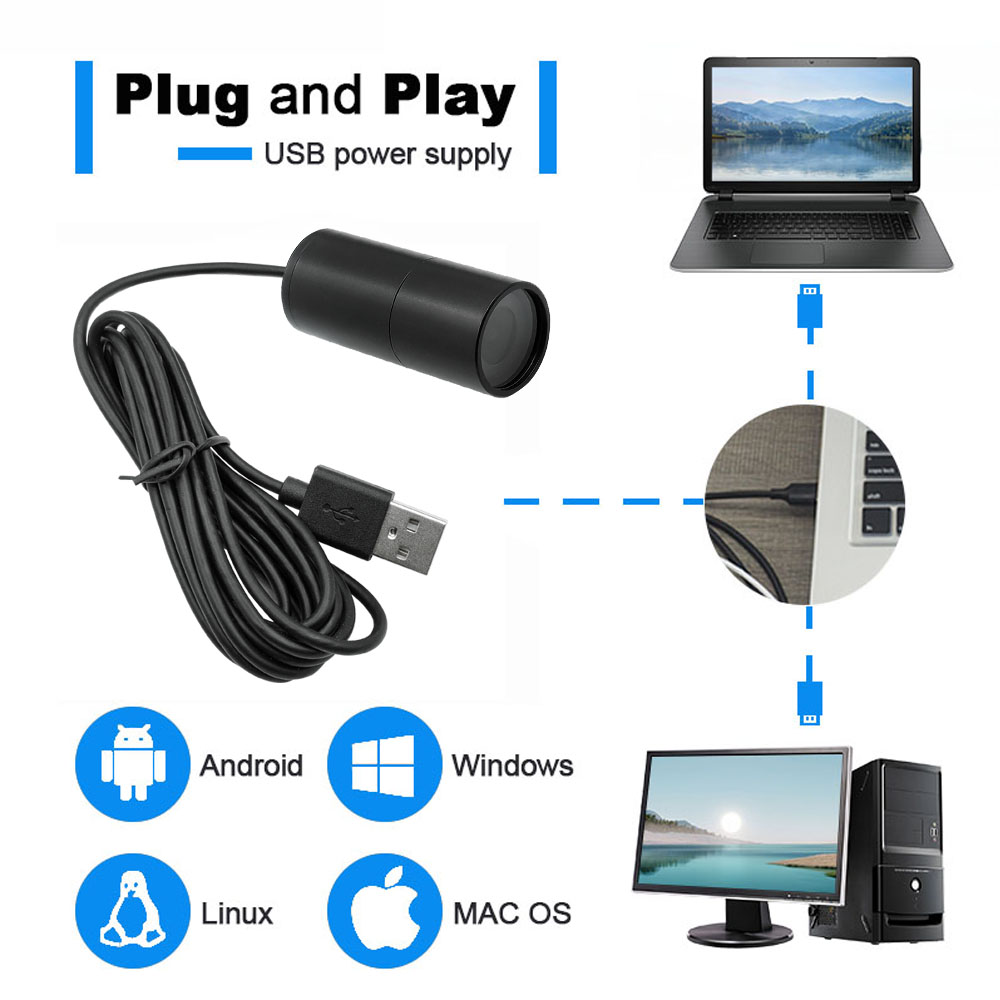

- USB Plug and Play: Thanks to UVC/USB standard compatibility, this USB camera can be quickly installed on Windows, macOS, or Linux systems. No driver installation required—ideal as a computer security camera or PC webcam security system.

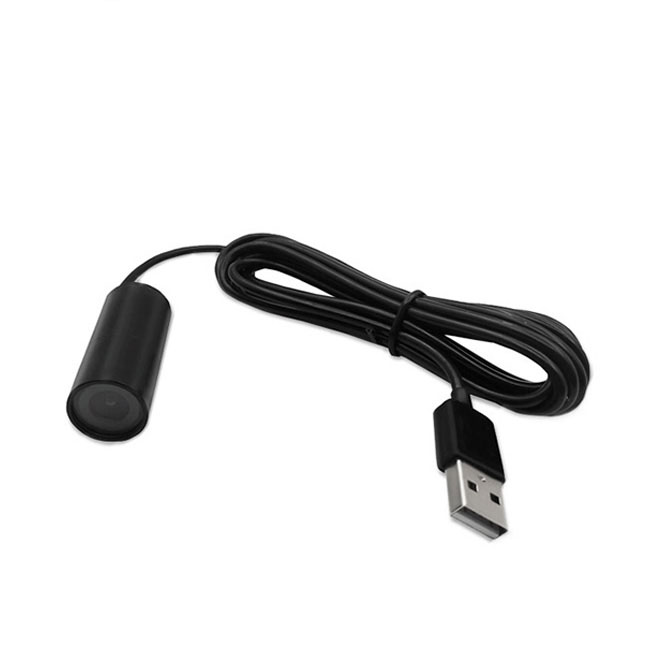

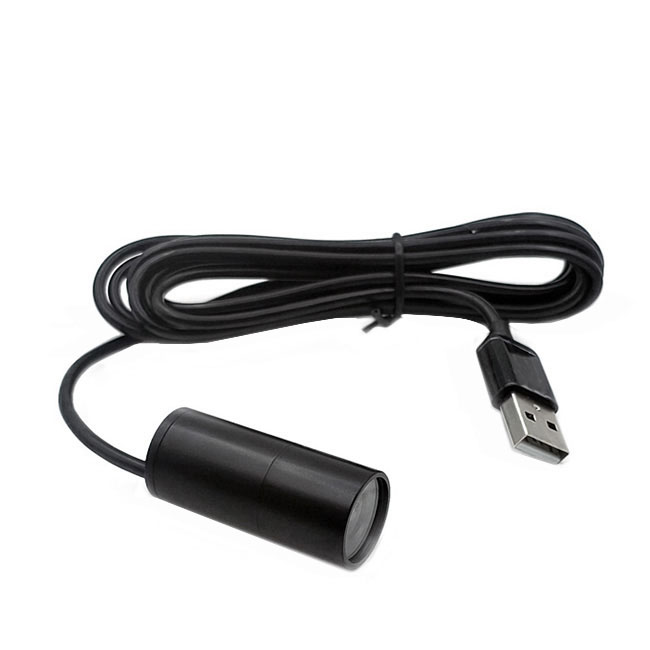

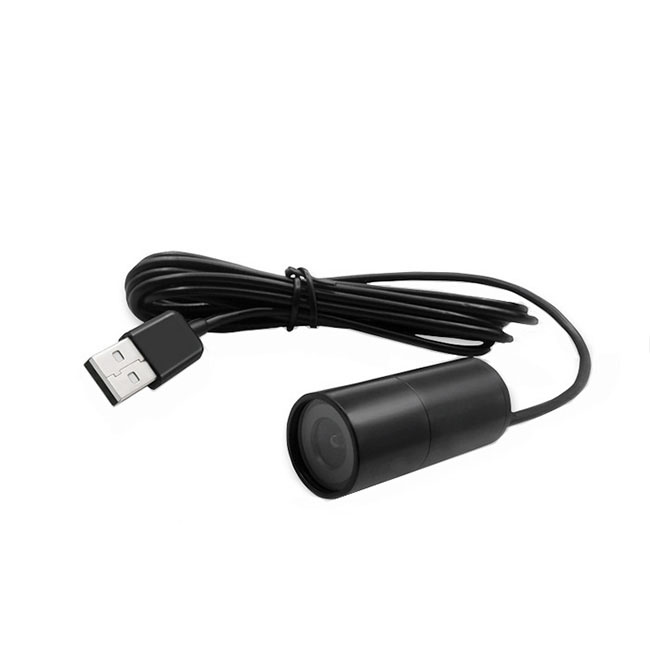

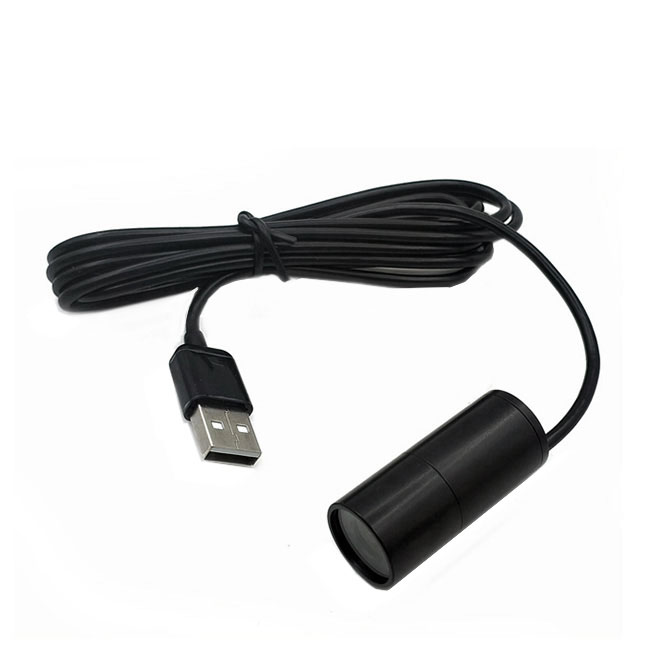

- Mini Bullet Design: Its ultra-compact size of 19mm×43mm saves space, making it easy to hide and install, and can be flexibly deployed in various scenarios, whether wall-mounted, ceiling-mounted, or placed on a shelf.
- Versatile Use: Suitable for both indoor and outdoor use, this camera features a weatherproof metal casing.
Industrial Automation: Precision measurement, AOI inspection, OCR/OCV, robotic guidance
Security Monitoring: Industrial site monitoring, compact security devices, mobile monitoring
Smart Devices: Access control, retail analytics, medical imaging, educational equipment
Other Applications: Video conferencing, intelligent transportation, portable instruments
Drone/Robot Vision: Environmental perception for drones and robotics
Scanning Devices: High-precision handheld or embedded scanning solutions
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP，16MP).
