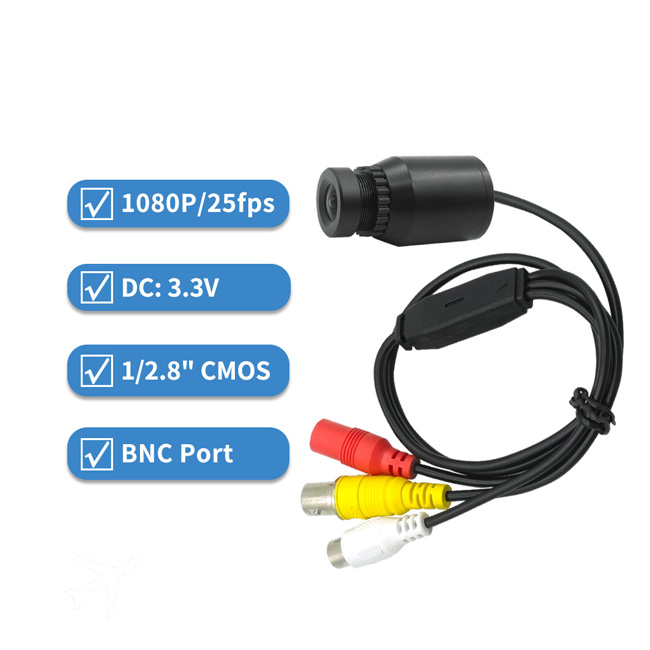

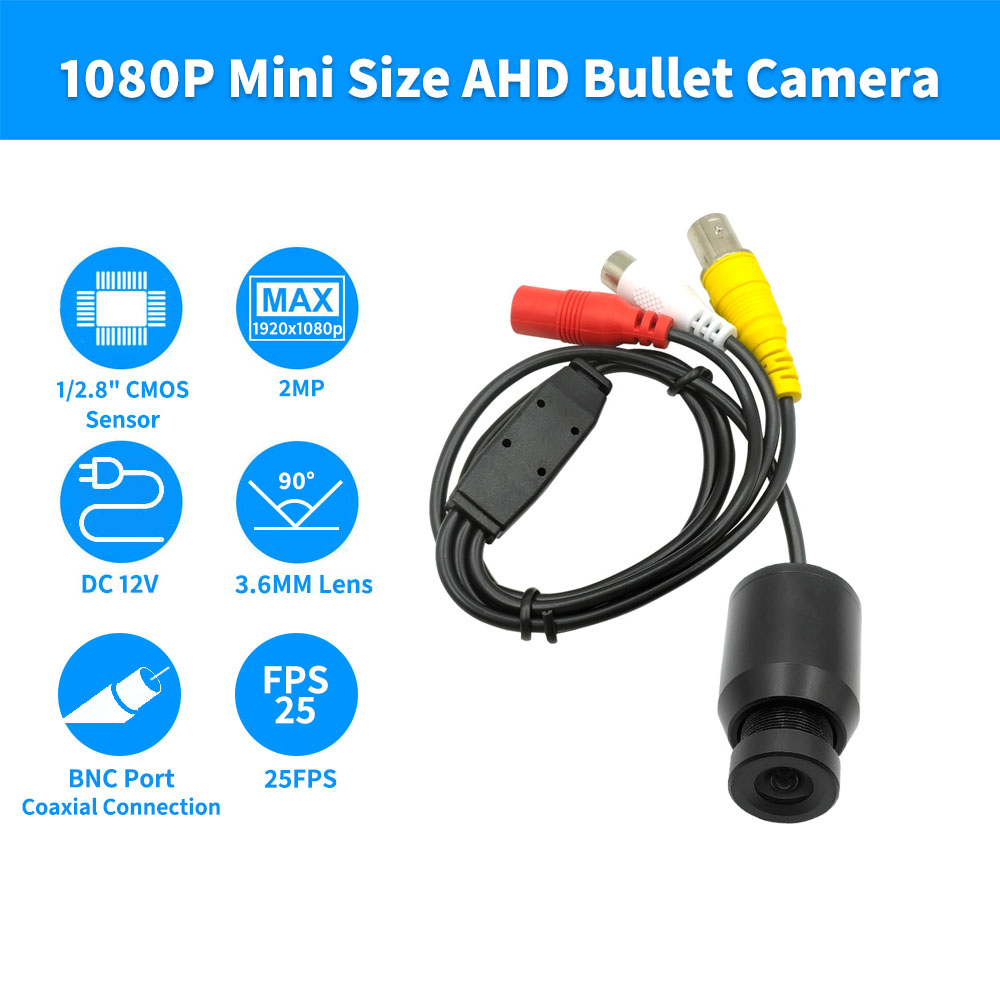

Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor | 1/2.8″ |
| Pixel | 2MP |
| Signal | AHD |
| Frame rate | 1920X1080 25fps |
| Audio | Not supported |
| Operating voltage | DC 3.3v |
| Dimensions | 18mm x 23mm |
| White balance | Automatic |
| Operating temperature | <70°C |
| Power consumption | 0.25w |
| Model No | HCA-ZDT182 |
| Interface type | BNC |
| Lens specifications | EFL: 3.6mm F.ON: 2.2 Distortion: <-1.0% Element: 4E+IR Angle: 90° |
| Chip Type | CMOS |
| Standard | PAL/NTSC (Default PAL) |
Key Features
- True undistorted image: core advantage. Equipped with a professional 3.6mm distortion free lens, providing a distortion free viewing angle of approximately 90 °, ensuring that straight lines in the image remain straight and key information (such as faces and license plates) are not stretched or deformed, resulting in more accurate recognition.
- Full HD picture quality: Equipped with a 2-megapixel high-definition sensor, it outputs 1080P resolution images with clear details and picture quality far exceeding traditional analog cameras.

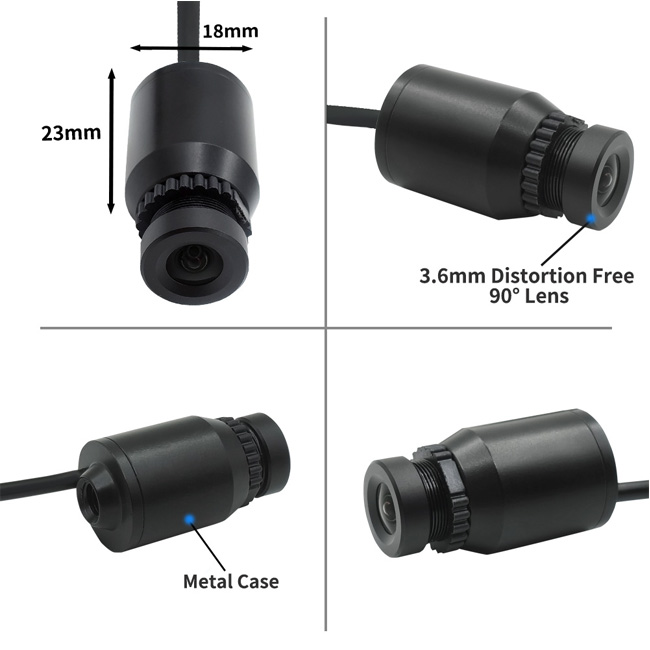

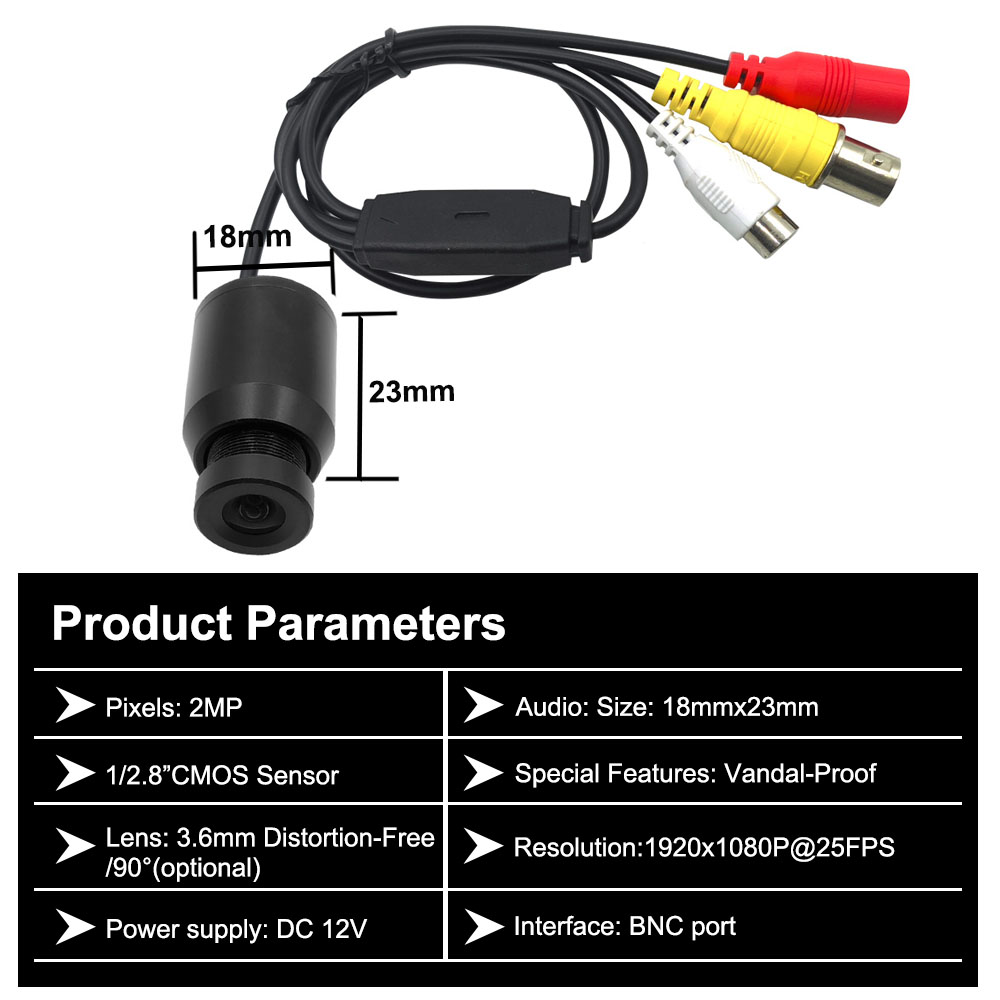

- Sturdy metal body: With a size of only 18x23mm and a metal casing, it is not only compact and concealed, but also has excellent heat dissipation and durability, suitable for long-term stable operation.
- High performance chip: Equipped with a 1/2.8 inch high-quality sensor, it has better low light performance, ensuring rich picture layers and excellent noise control.

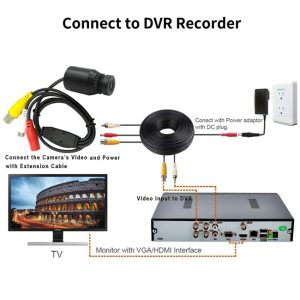

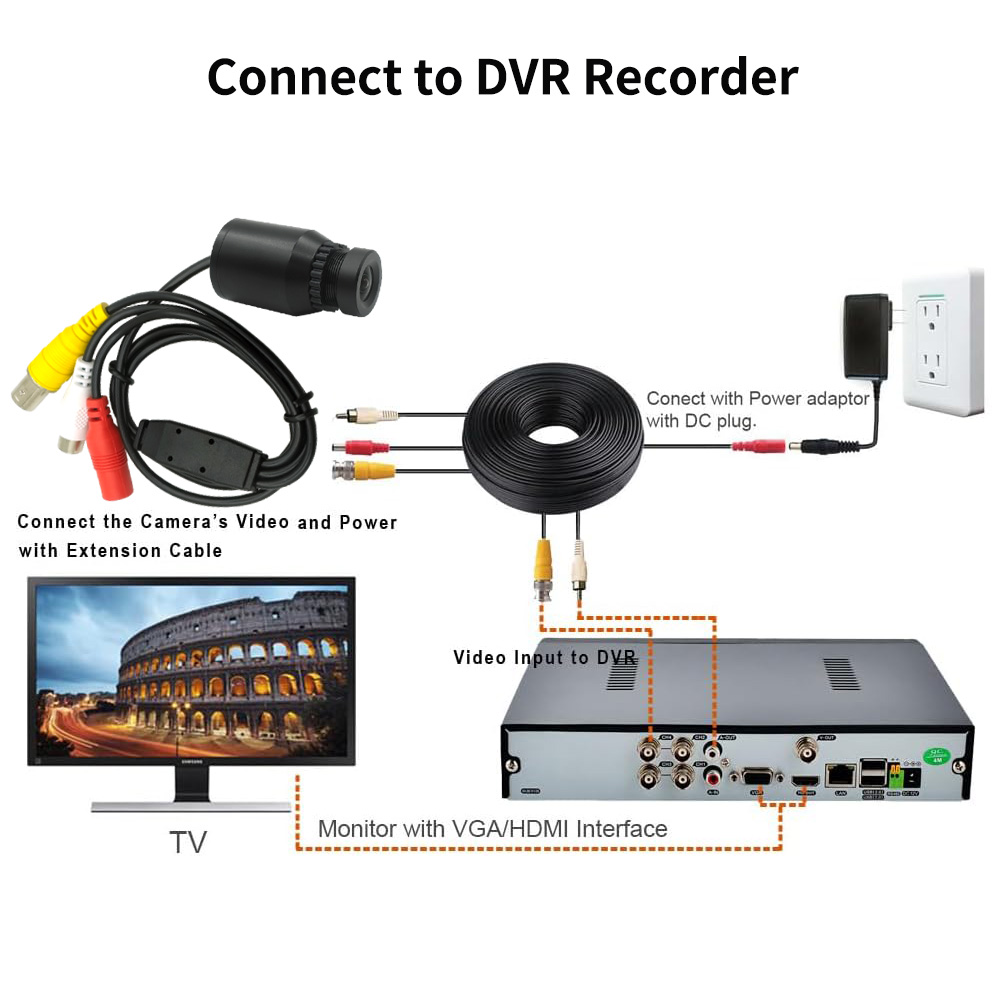

- Standard BNC interface: pure analog signal transmission, without delay or packet loss. It can directly replace the old analog camera and be compatible with the original coaxial cable system, making it easy to upgrade to high-definition monitoring (in conjunction with AHD DVR).
Application Scenarios
Ideal for diverse machine vision and monitoring applications including:
- ATM and banking equipment
- Medical diagnostic systems
- Vending machines and digital signage
- Industrial automation (robotics, welding equipment)
- Public safety (law enforcement, fire monitoring)
- Security surveillance systems
- Embedded systems (mobile devices, computers)
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
- Lens customization: specific focal length, field of view angle, distortion control.
- Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
- Cable and Interface: Customize cable length and interface type.
- Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 8MP, 12MP).
- Customized services: USB camera module, AHD camera module, CVBS camera module, wired network camera module, wireless wifi camera module, etc.
