Specifications
| Sensor | 1/3.2″CMOS |
|---|---|
| Pixel | 8MP |
| Compression format | MJPG/YUV2 |
| Frame rate | 3264X2488 @15fps |
| Audio | support |
| Power frequency working voltage | DC 5V |
| Product size | 15mmx15mm |
| White balance | Automatic |
| Working temperature | <70° |
| Power consumption | 0.25w |
| Model | HCU-GJ158(Type-c) |
| Interface type | Type-C |
| Focus | Fixedfocus |
| Lens | F.NO: 1.9mm |
| FOV | 120° |
| Warranty | 2 Years |
| Support OS | Windows/Mac OS/Linux/Android |
Core functions of the product

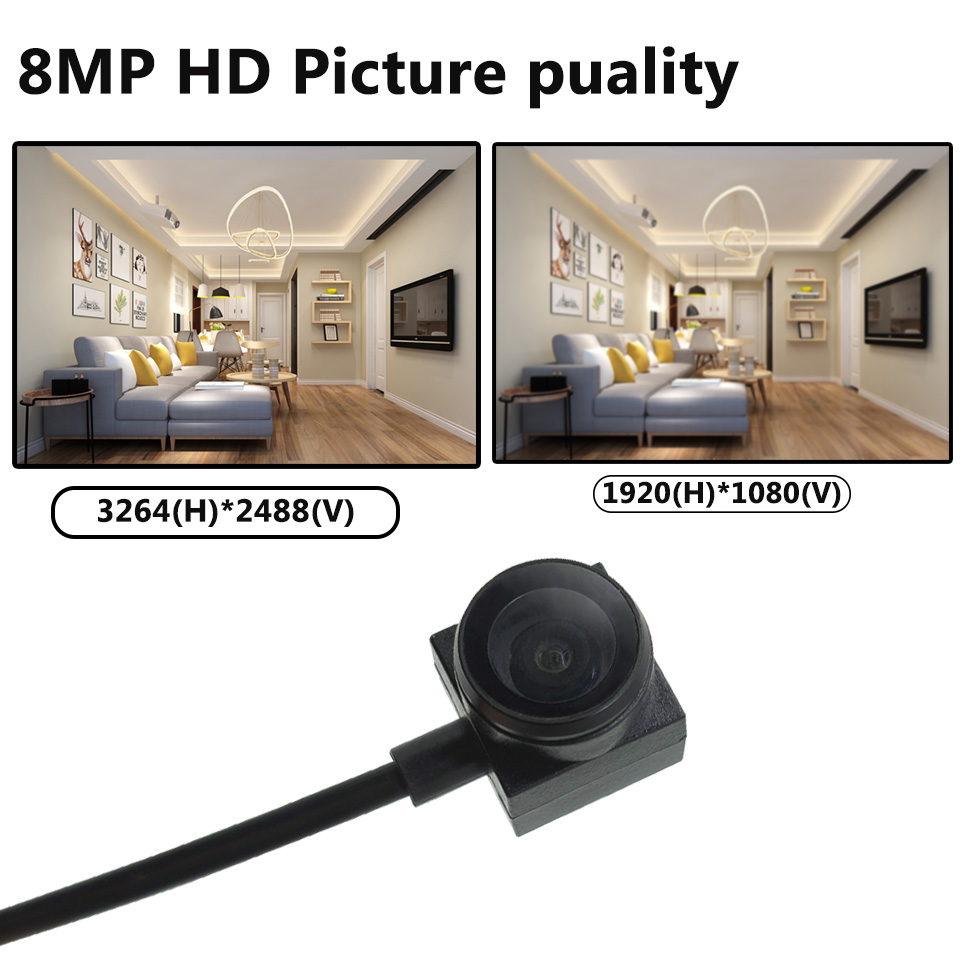

- High definition imaging: 8-megapixel high-definition resolution (3264X2488 @15fps) provides delicate image quality and accurately captures details.

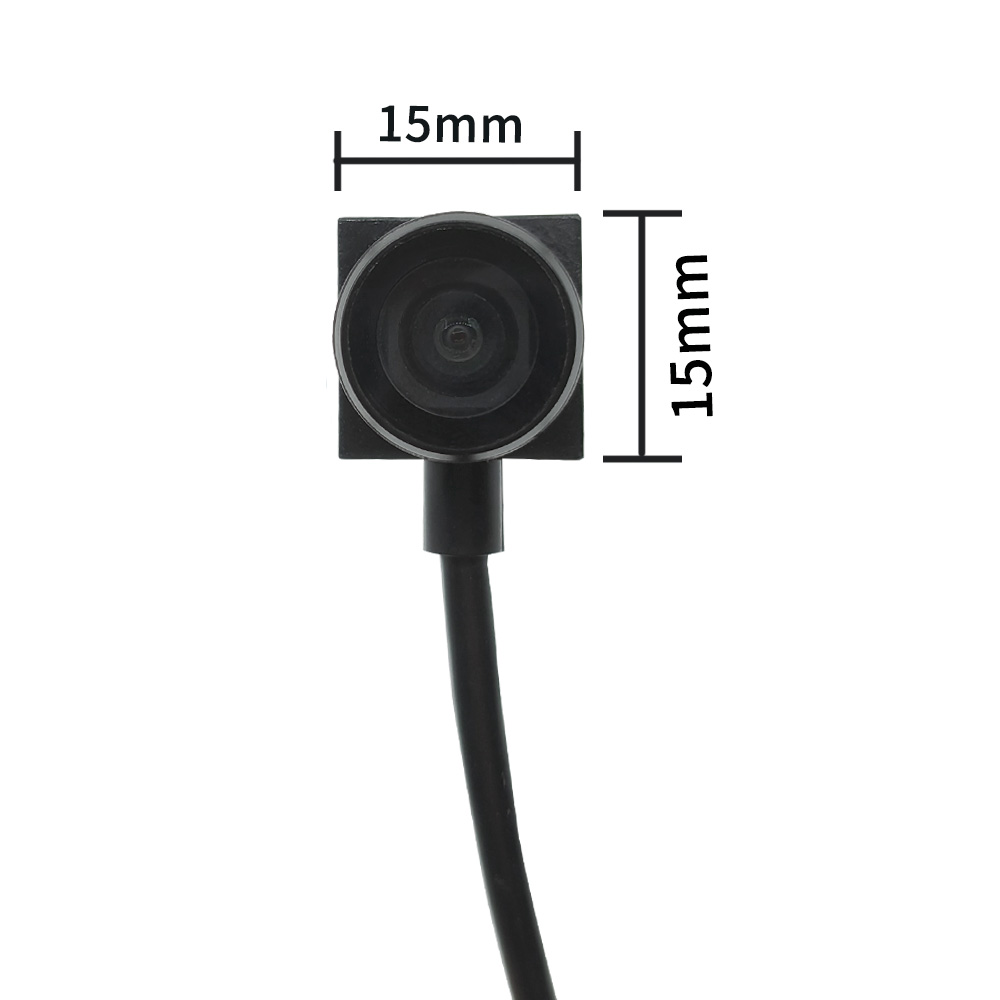

- Exquisite body: 15x15mm size makes it easy to install and carry.

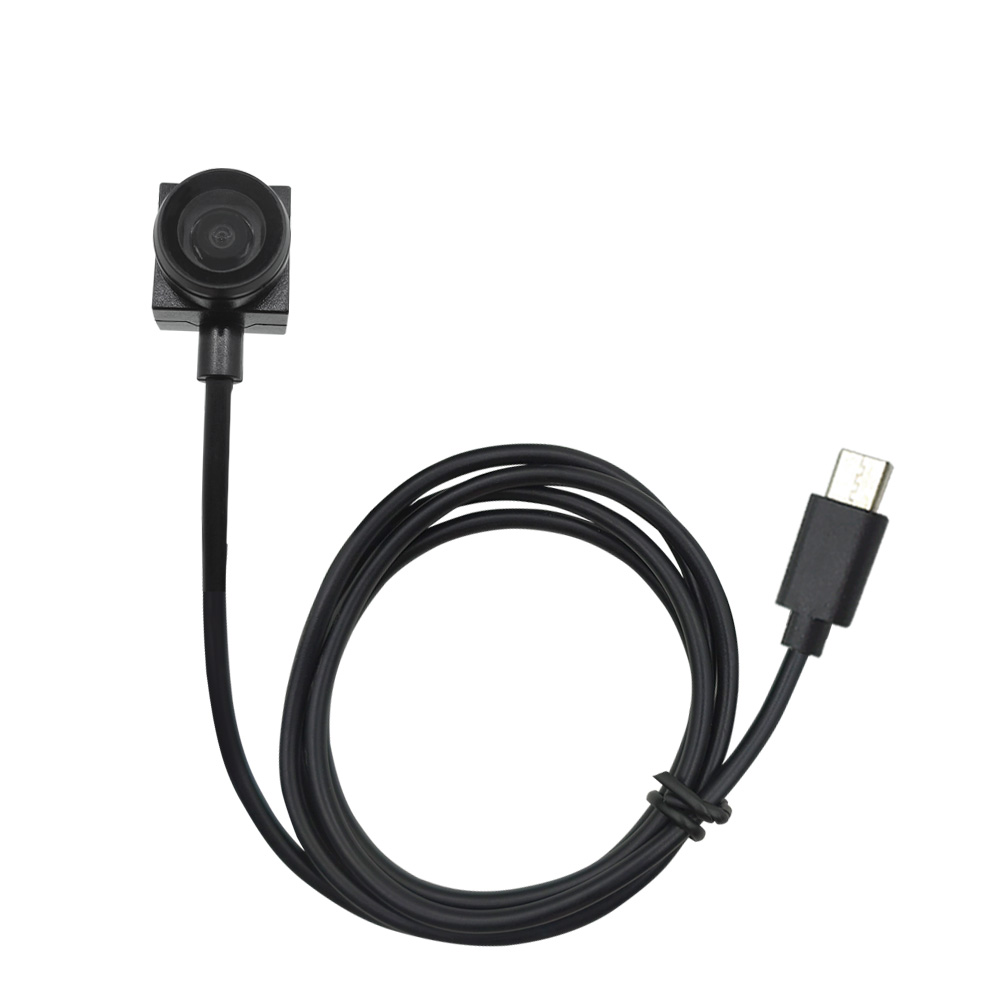

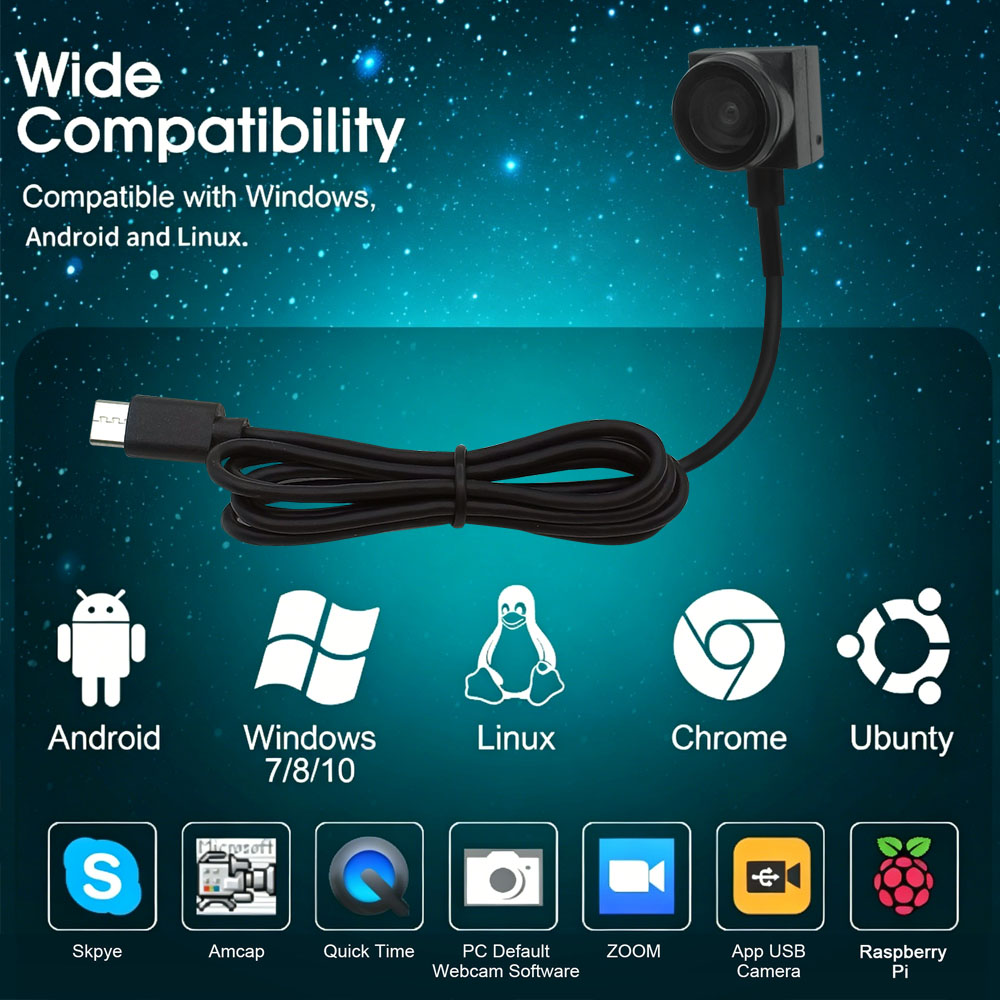

- Plug and play: Type-C interface (or optional USB 2.0, Android) compatible with Windows, Mac, Linux, Android, etc. Supports UVC protocol with no additional drivers needed.
- Adjustable image parameters: Supports adjusting exposure, white balance, gain, contrast, and saturation through software to adapt to complex lighting scenes.

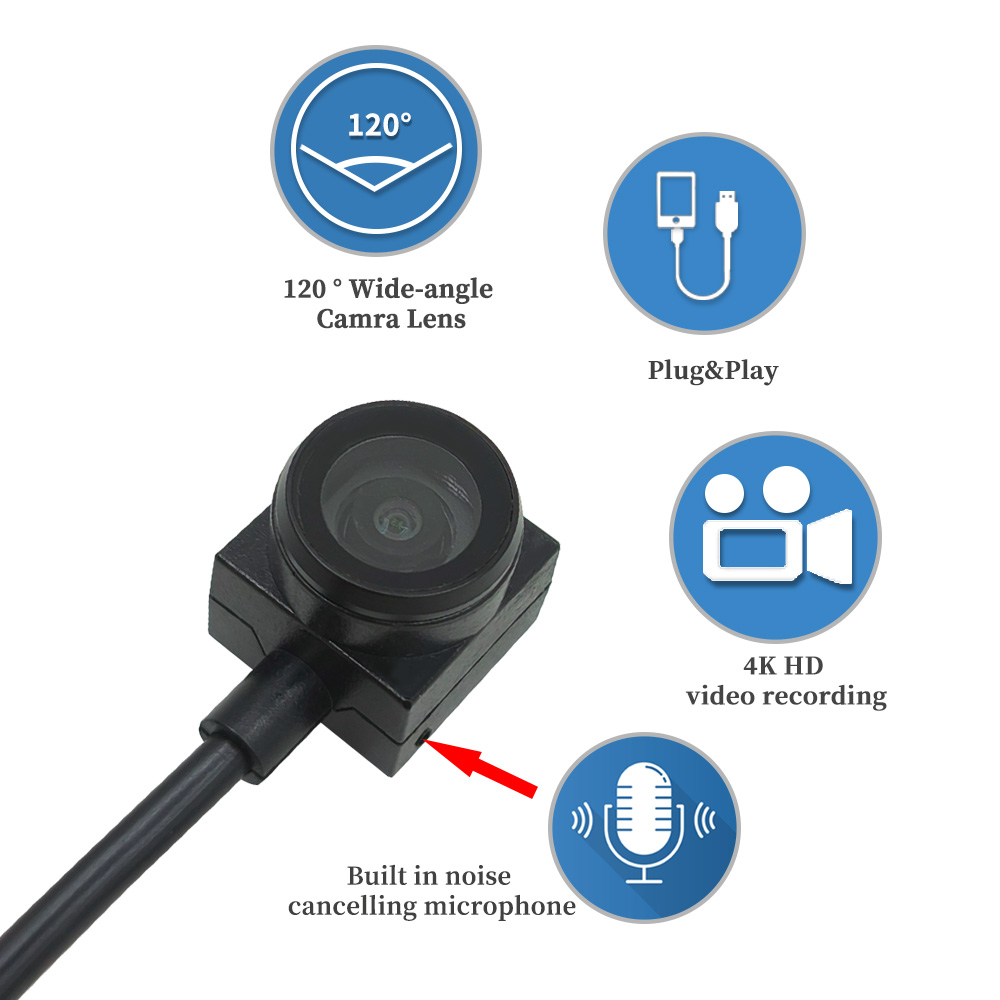

- Industrial grade wide-angle lens: 1.9mm focal length with fixed focal length wide-angle of 120° for wide field of view.

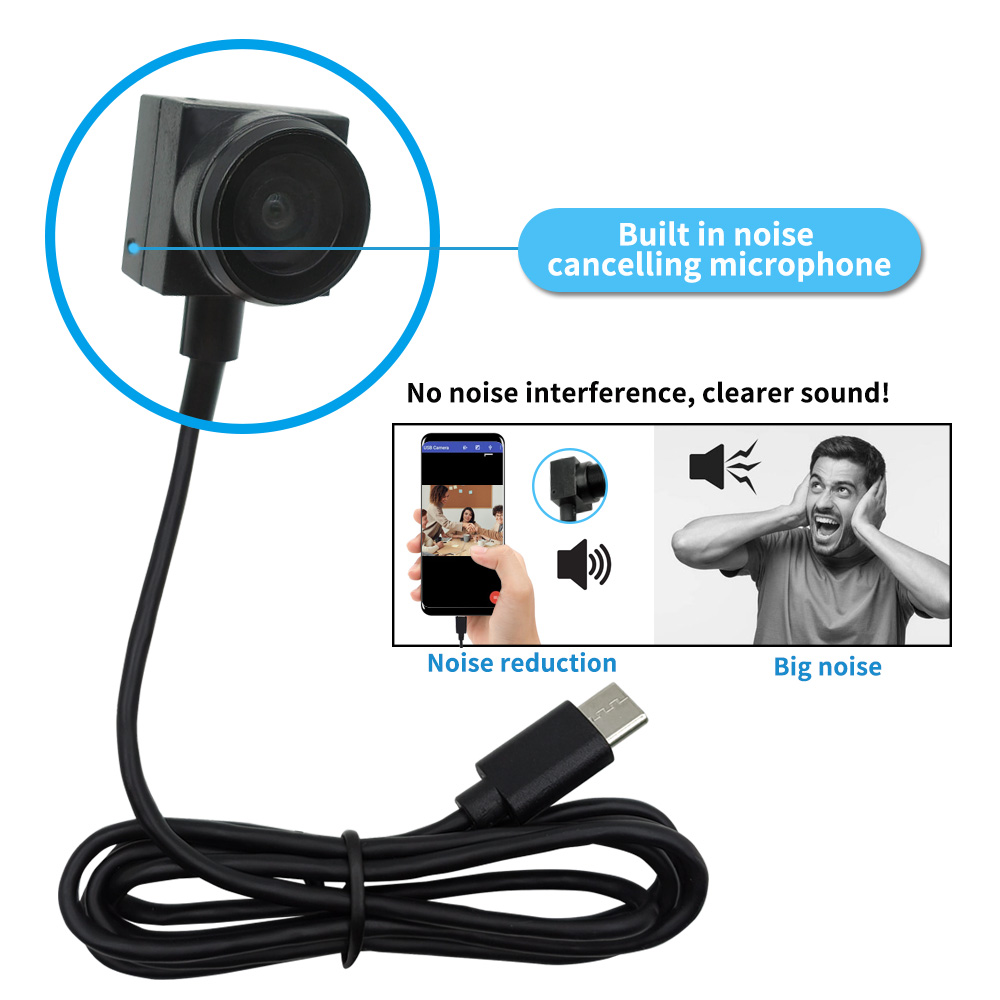

- Audio: Built-in microphone supports synchronous compression and transmission of audio and video.
Customized Services
We understand the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to create differentiated products.
- Lens customization: Specific focal length, field of view angle, distortion control.

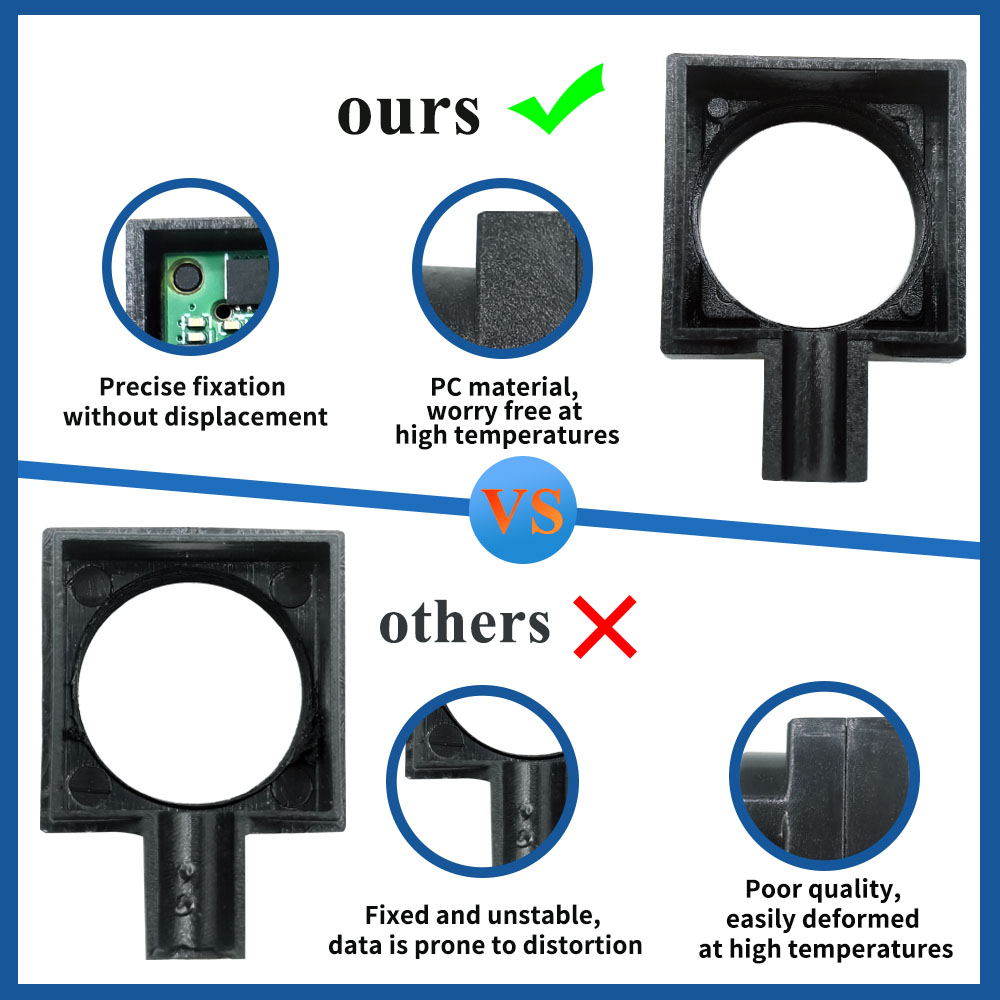

- Customized casing: Design dedicated casing, bracket, or fixing method based on your device structure.
- Cable and Interface: Customize cable length and interface type.
- Pixel customization: Different resolution and frame rate models available (4MP, 5MP, 8MP, 12MP).
Camera application field
Industrial automation and machine vision, precision equipment status monitoring, security monitoring, embedded intelligent access control/attendance systems, miniaturized concealed monitoring equipment, vehicle mobile monitoring, smart home security, endoscope assisted imaging, laboratory equipment monitoring, small traffic monitoring equipment, intelligent retail terminals, drone/robot visual perception, education/conference system cameras, various embedded devices that require compact visual solutions, advertising machines, all-in-one machines, intelligent electronic scales, automatic welding equipment, fire water guns, external law enforcement instruments, external cameras for Android phones, computer cameras, high-speed cameras, etc.
