15 x15mm HD 1080P Distortion Free Mini USB Camera

Price range: $22.49 through $26.99

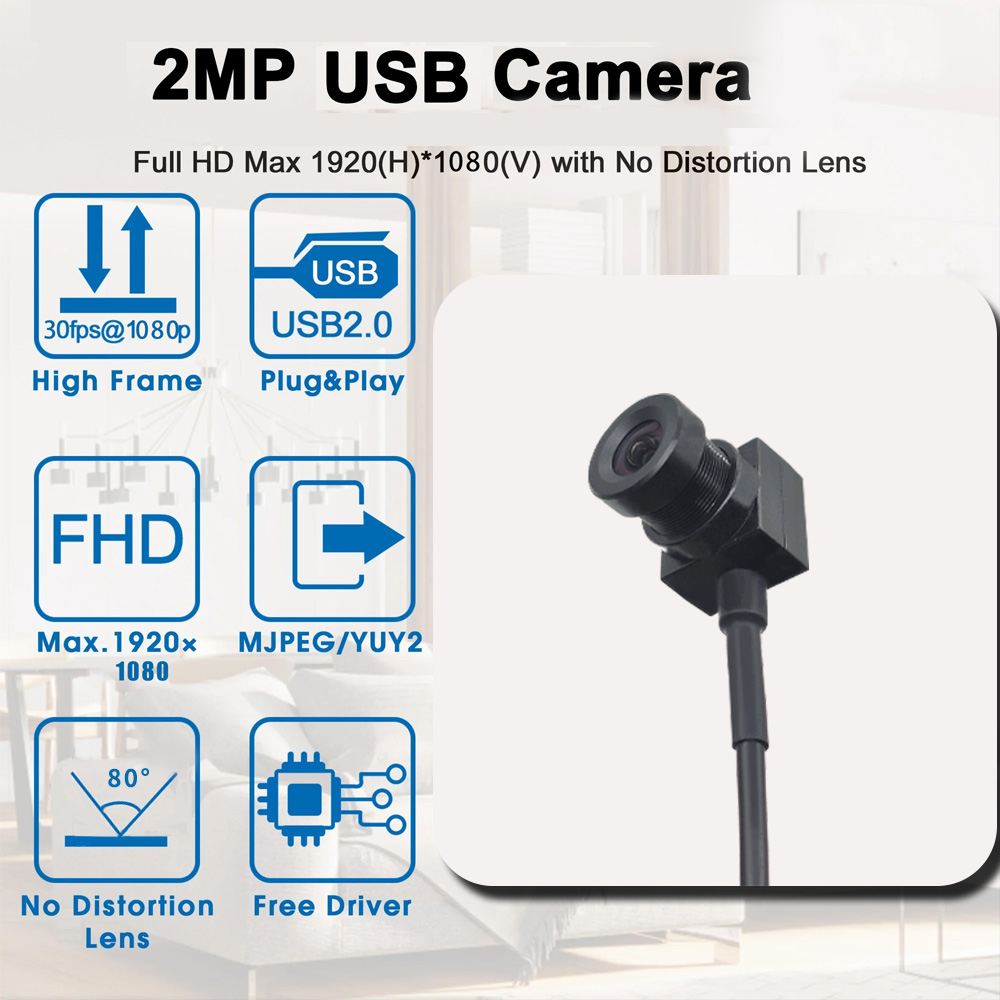

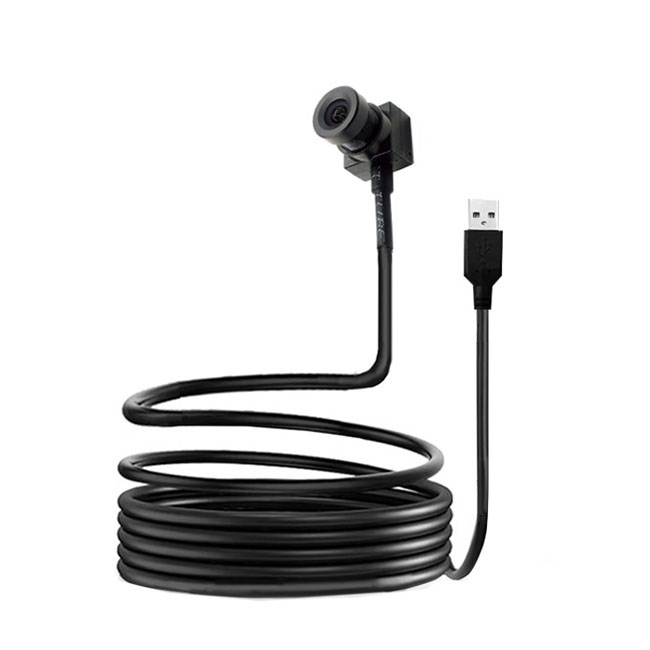

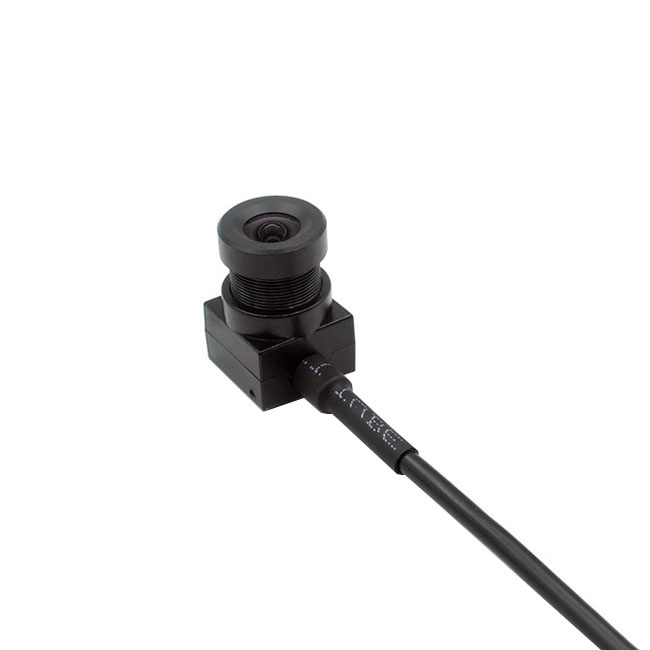

This ultra miniature USB surveillance camera is only 15x15mm in size and is one of the world’s smallest 1080P full HD imaging solutions. It breaks through the size limit by integrating a 2-megapixel high-definition sensor and a precisely calibrated distortion free lens into a very small body, plug and play through a universal USB 2.0 interface.

SKU: N/A Category: Brand:
Technical Specifications
ParameterSpecification
Sensor1/2.9″ COMS
Resolution2MP (1920×1080)@30fps
Compression formatMJPG/YUV2
Product size15mmx15mm
White balanceAutomatic
Working temperature<70°C
InterfaceUSB 2.0
ModelHCU-WJB152
PowerDC 5V, 0.25w
LensDistortionless 3.6mm
FOV90°
Supported OSWindows/Mac OS/Linux/Android
Key Features

1080P full HD distortion free image quality: equipped with a 2-megapixel high-definition sensor, providing high-definition output with a resolution of 1920 × 1080. Specially using a 3.6mm undistorted lens, it effectively corrects the stretching and deformation of the edges of ordinary wide-angle lenses, providing accurate and realistic images of both the center and edges, which is crucial for applications that require precise measurement.
Ultimate miniaturization design: The product size is only 15mmx15mm, making it a world-class miniature camera. Its small size provides unparalleled concealment and installation flexibility, making it easy to embed or install in any narrow space, almost imperceptible.
Using standard USB 2.0 interface: extremely compatible. Without the need for additional complex drivers (most systems automatically recognize them as UVC devices), you can directly connect to any device with a USB interface, such as a computer, laptop, smart TV, Raspberry Pi, etc. Power and data transmission can be done in one line, making it very easy to use.
Low power stable operation: The working voltage is DC 5V, with extremely low power consumption. It can be stably powered directly by a computer USB port or a mobile phone charger, and long-term continuous operation will not cause overheating or unstable performance.



Applications
This versatile camera module is suitable for:
  • Machine vision and equipment monitoring
  • ATM and banking systems
  • Medical equipment and hospital systems
  • Vending machines and kiosks
  • Industrial automation and robotics
  • Security surveillance systems
  • Content creation and live streaming
Customization Options

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP,16MP).





Interface type

Type-C, USB 2.0, OTG Micro usb

Pixel

1080P, 720P, 4MP
