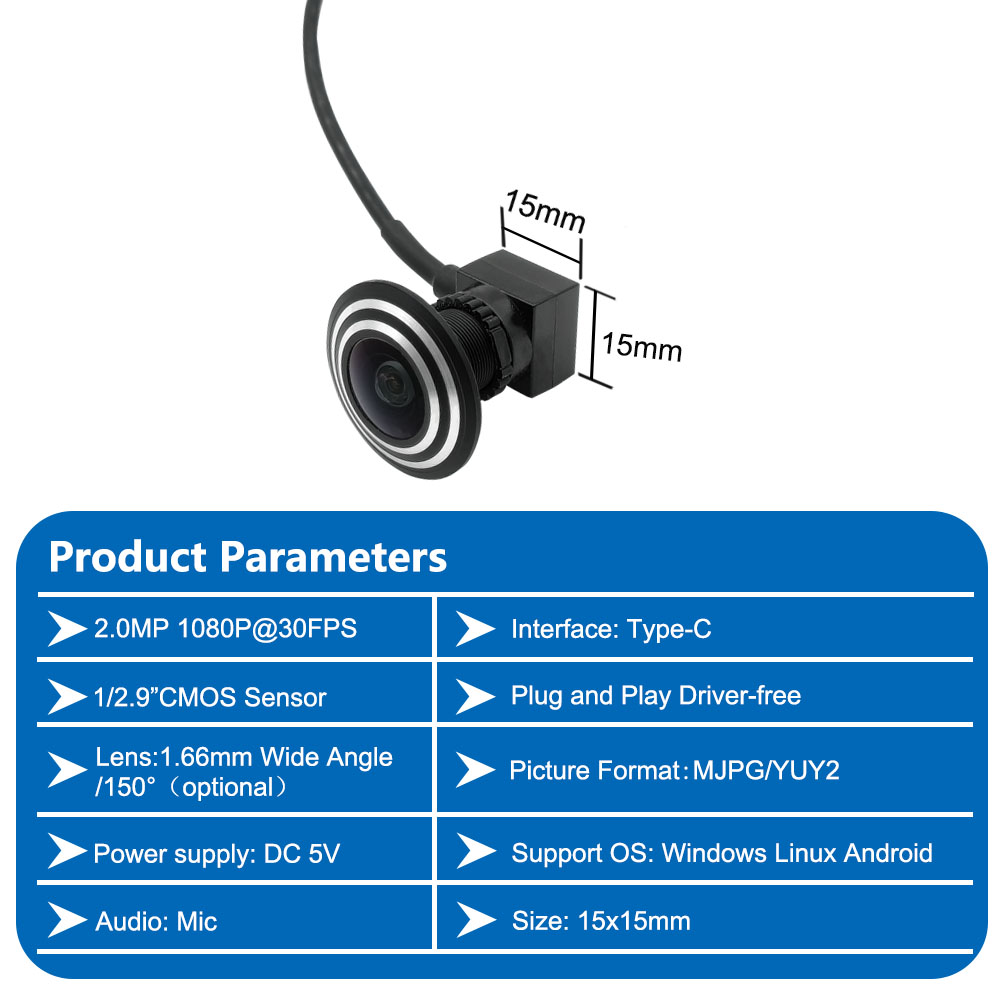

| Parameter | Value |
|---|---|
| Sensor | 1/2.9″CMOS |
| Pixel | 2MP |
| Compression format | MJPG/YUV2 |
| Frame rate | 1920×1080@30fps |
| Audio | Support |
| Operating voltage | DC 5v |
| Dimensions | 15mm×15mm |
| White balance | Automatic |
| Operating temperature | <70°C |
| Power consumption | 0.25w |
| Model No | HCU-XMY152TPC |
| Interface type | TYPE-C |
| Lens specifications | 1.66mm |
| FOV | 150° |
| Supported OS | Windows/Mac OS/Linux/Android |
Key Advantages

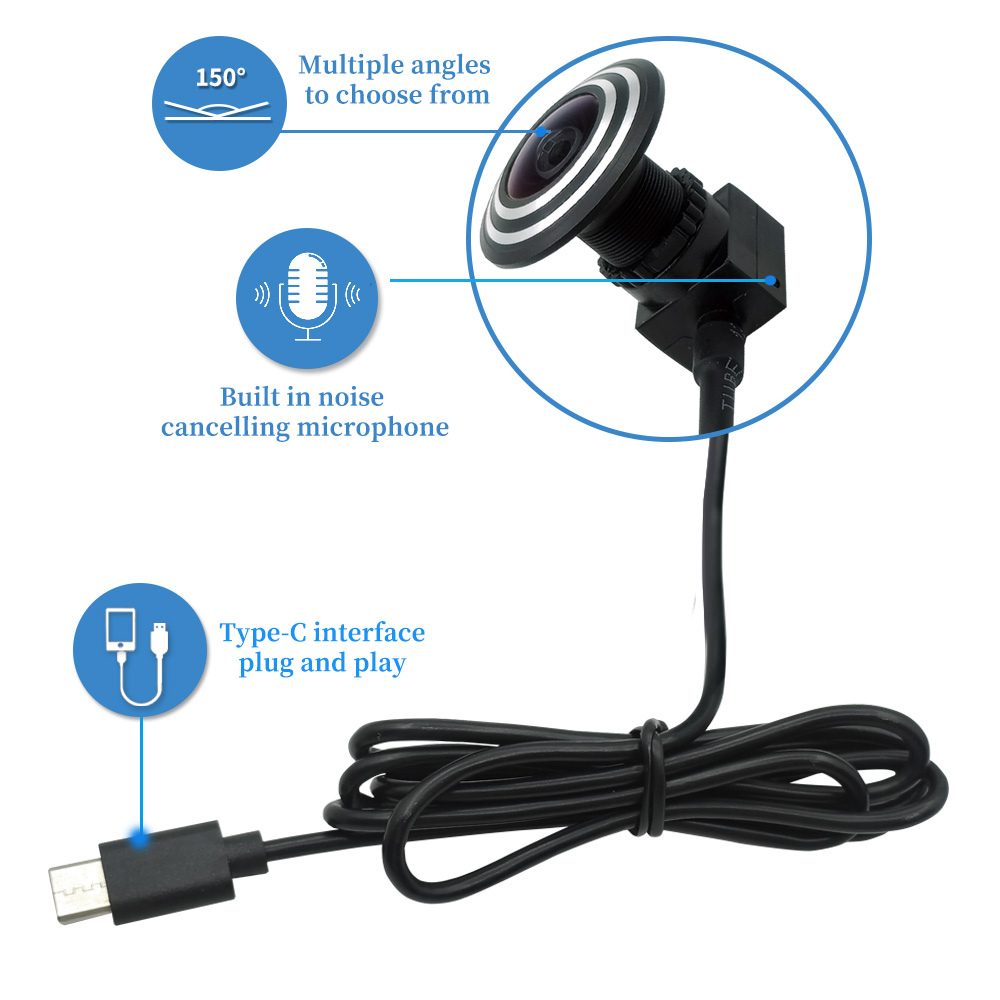

150° Ultra-Wide Angle of View: Equipped with a professional 150° wide-angle fisheye lens, it clearly captures the entire doorway area, covering corridors, stairs, and side corners that traditional 120° peephole cameras cannot reach. This ensures maximum visibility in doorway monitoring, visitor identification, and entrance security applications.
Full HD 1080P Image Quality: This high-resolution 2MP 1080P access control camera offers clearer details and more accurate color reproduction compared to standard 720P peephole cameras.
USB-C Plug and Play: Seamlessly compatible with Android systems, it connects directly without additional drivers. Compatible with most Android phones, tablets, smart TVs, and automotive systems that support the UVC protocol, it’s plug-and-play, simple and convenient.
Mini Size, Portable and Lightweight: Featuring a 15mm x 15mm square design, it’s only slightly larger than a coin and extremely lightweight. Whether carried around or used on a device for extended periods, its presence is virtually imperceptible, completely eliminating the bulkiness of traditional external cameras.
Application Scenarios
Ideal for machine vision and equipment monitoring applications including:
- ATM machines and banking systems
- Medical inspection and reporting equipment
- Vending machines and digital signage
- Industrial automation (welding equipment, patch machines)
- Robotics and crane systems
- Security surveillance and law enforcement equipment
- Flame monitoring in industrial settings
- External camera for Android devices and computers
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP,16MP).
