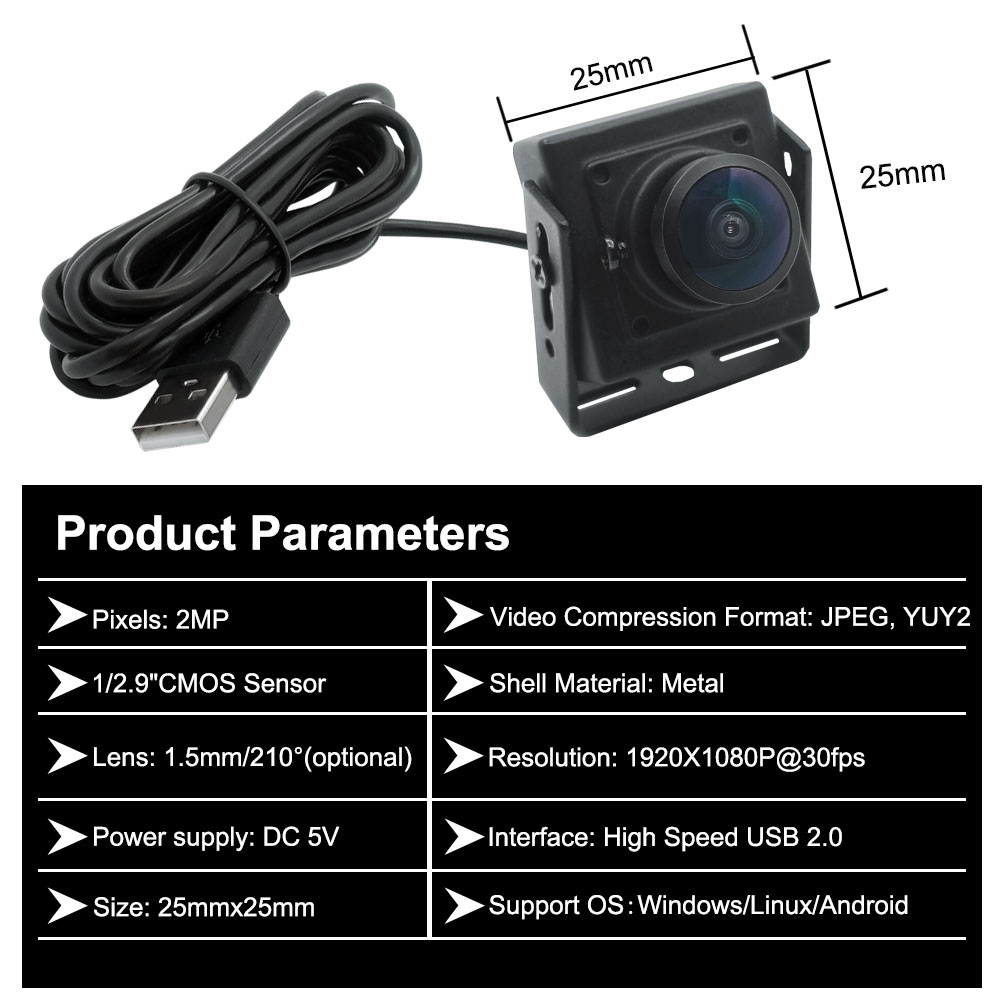

Technical Parameters
| Sensor | 1/2.9″ CMOS |
| Interface type | USB2.0 |
| Pixel | 2MP |
| Compression format | MJPG/YUV2 |
| Frame rate | 1920*1080 30fps |
| Power frequency working voltage | DC 5V |

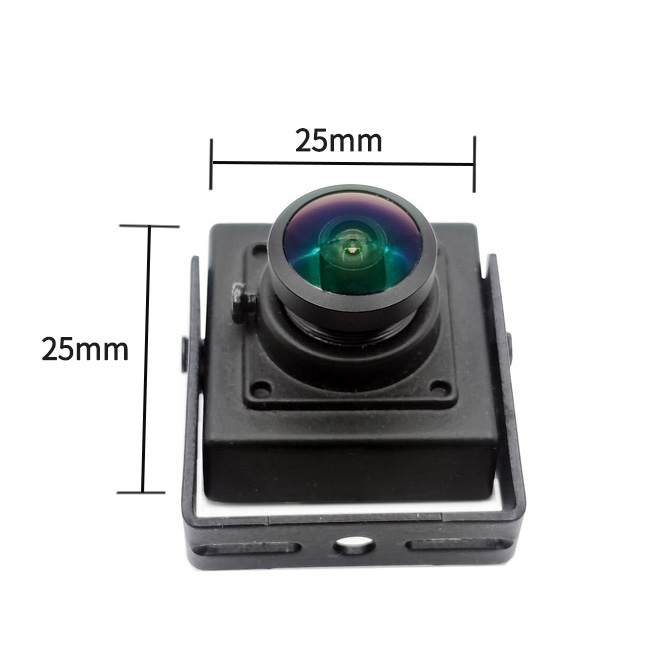

| Product size | 25mmx25mm |
| White balance | Automatic |
| Working temperature | <70° |
| Power consumption | 0.25 w |
| Model | HCU-FK252QJ |
| Lens | 1.56mm |
| FOV | 210° |

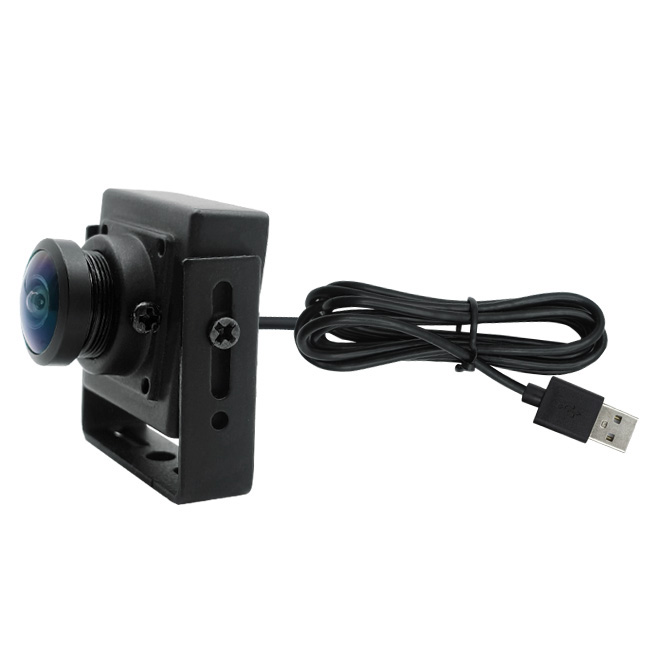

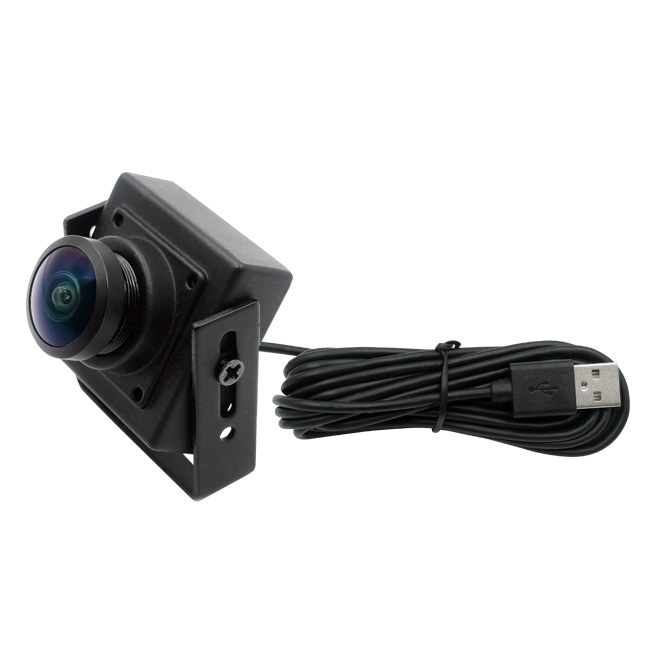

| USB cable length | Default 2m |
| Compatibility | Windows/ Linux /Android/IOS |
Key Advantages

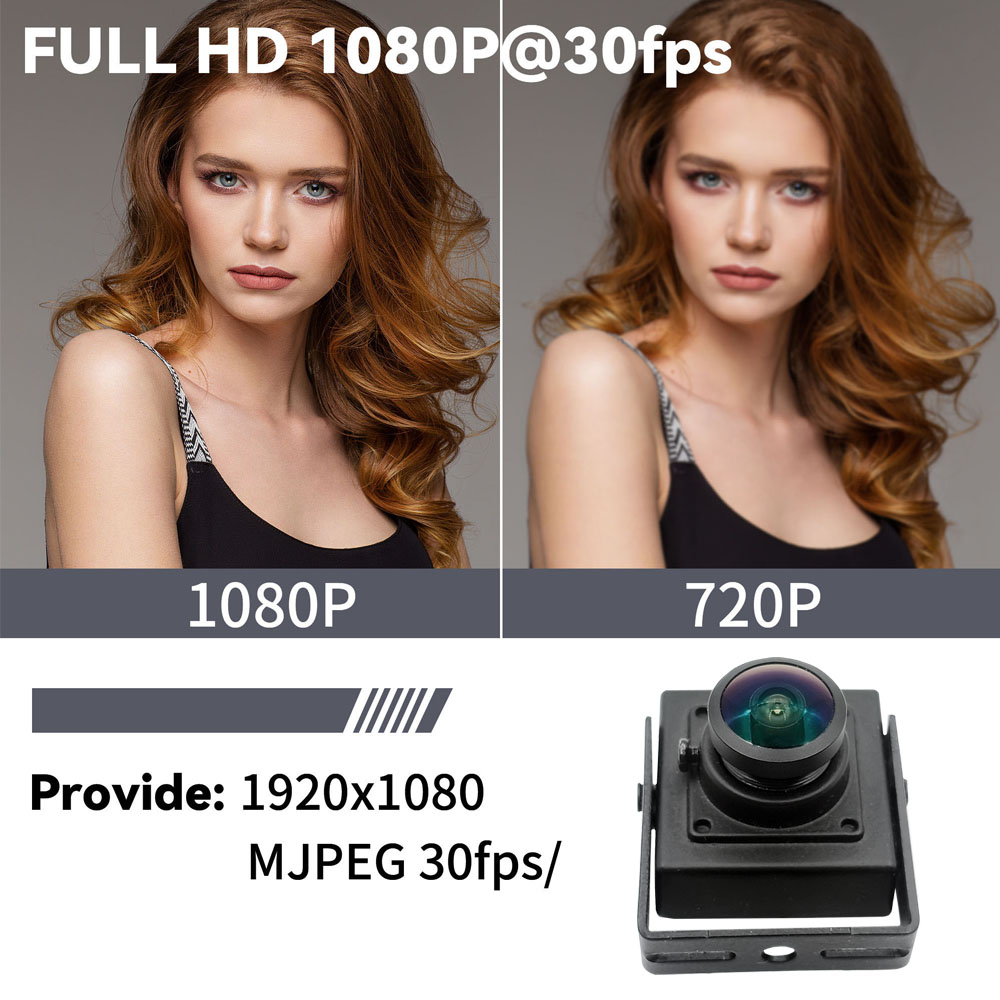

- 2 million high-definition picture quality: supports up to 1080P full HD picture quality output. The screen is rich in details and can clearly record key information such as facial features, operational actions, and currency details, providing reliable evidence for post verification.
- Waterproof lens design: The lens has waterproof function, ensuring clear and stable images in complex environments.
- Compact 25x25mm Form Factor: This mini USB camera module is designed for confined spaces and embedded racks. Its ultra-compact design fits perfectly into ATM bezels, vending machine doors, self-service terminal interfaces, and access control panels, making it ideal for OEM design flexibility and large-scale integration.

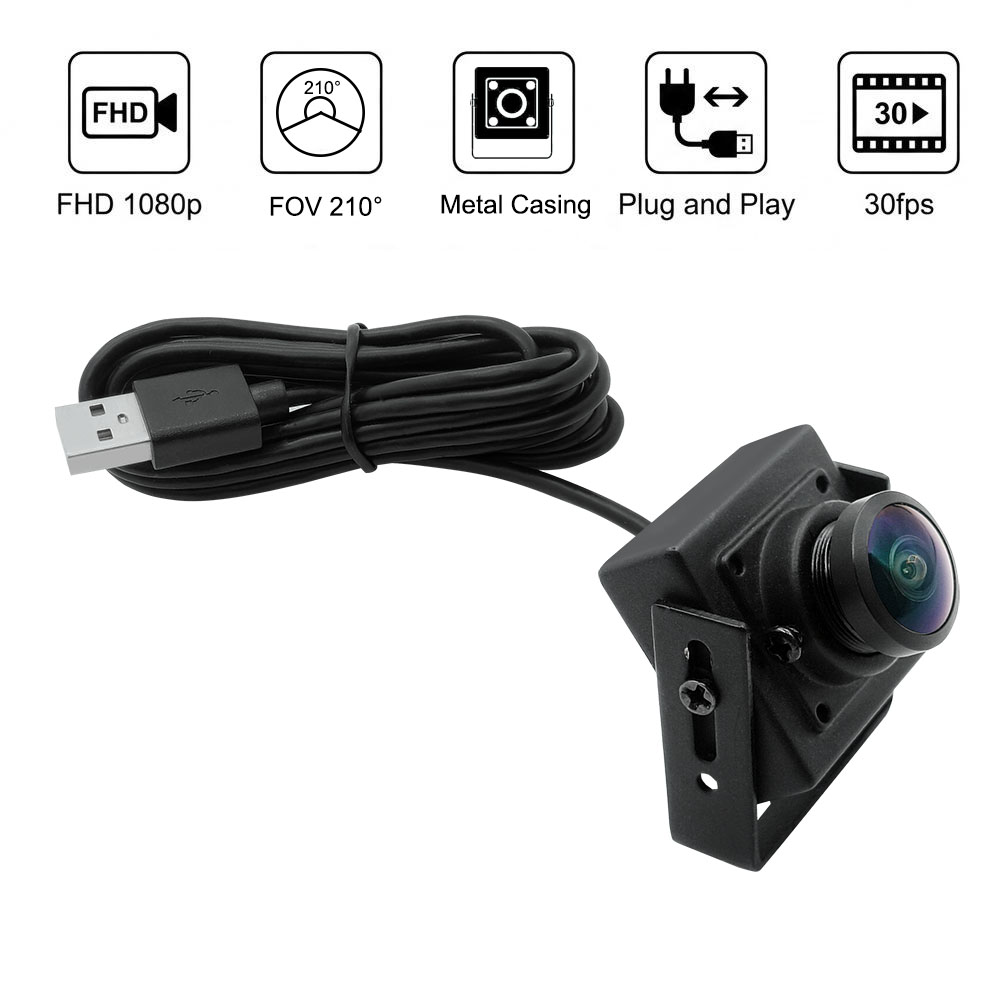

- 210° Fisheye Wide-Angle Lens: The built-in fisheye wide-angle lens provides a panoramic view, significantly reducing blind spots, enabling face capture, user interaction recording, and environmental monitoring with a single camera.

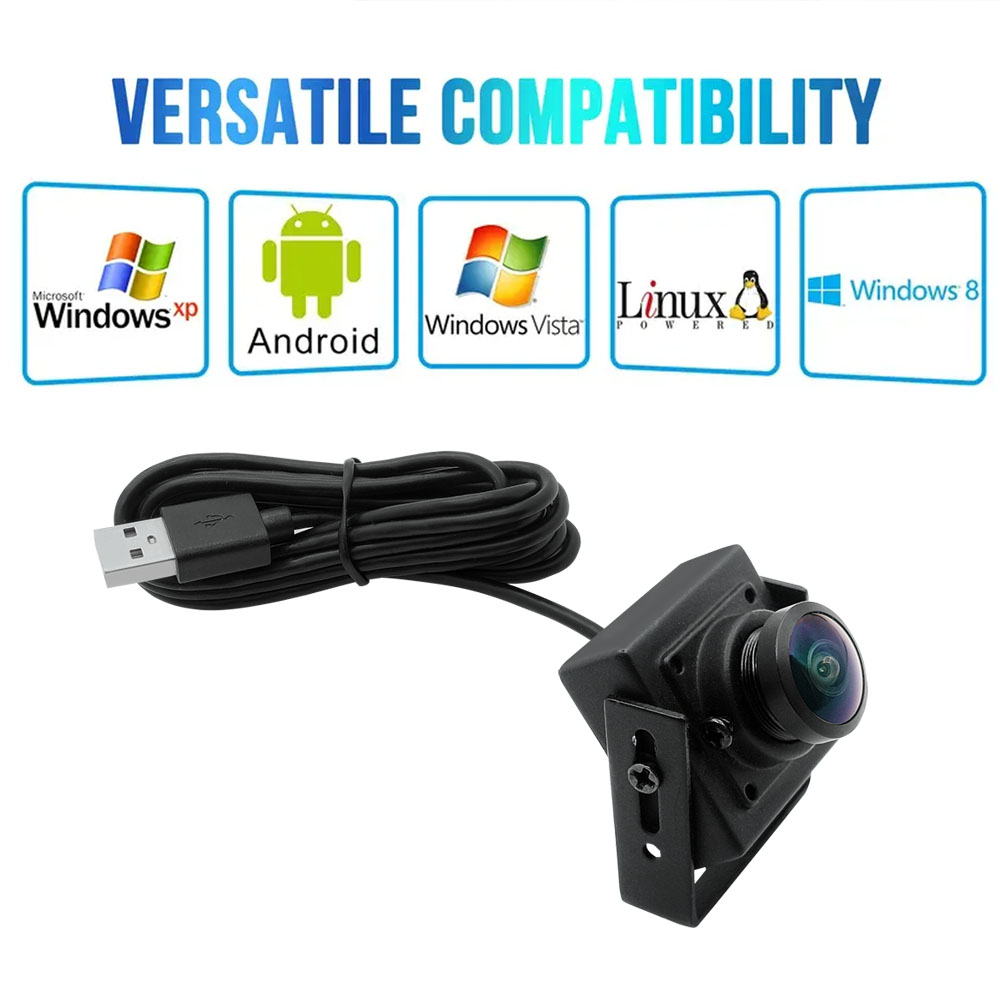

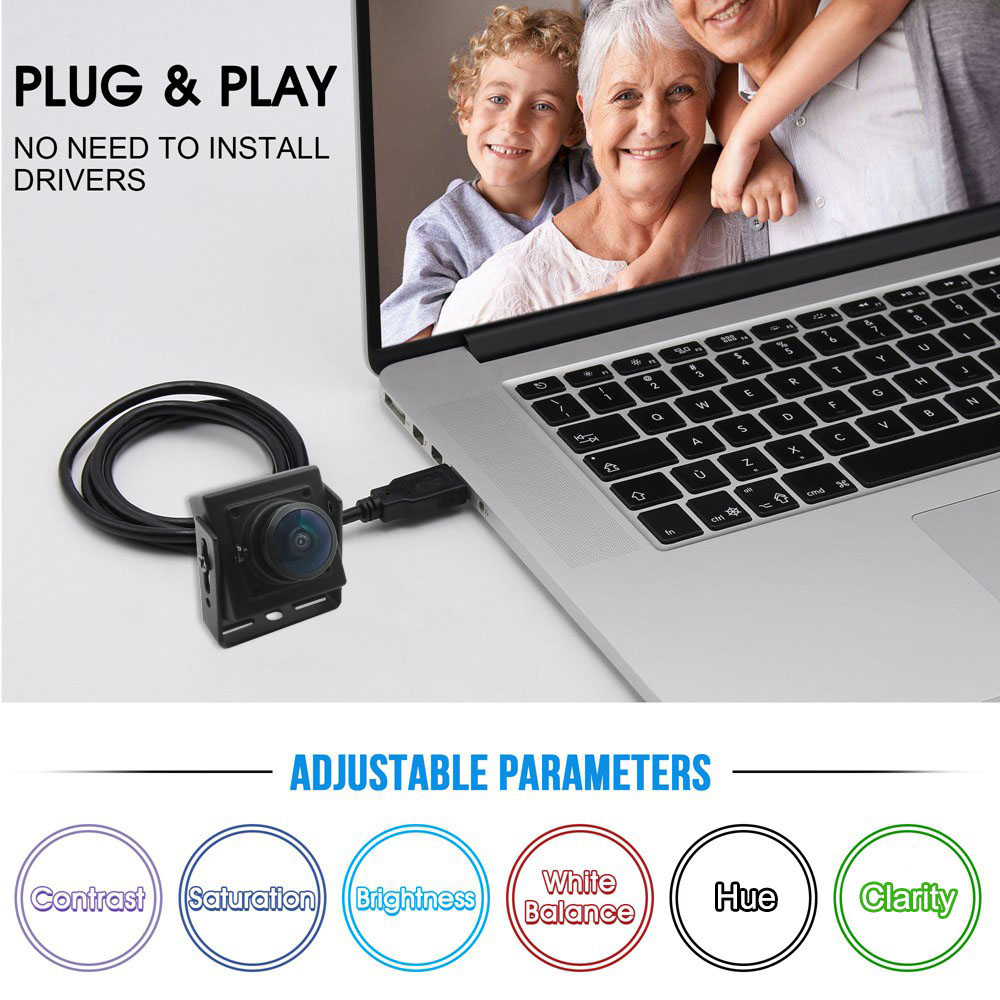

- Plug and Play USB UVC Compatibility: This camera uses a standard USB 2.0 UVC interface, supporting Windows, Linux, Android, and IOS systems without additional drivers. This ensures rapid development, faster prototyping, and flexible deployment in a variety of embedded devices.

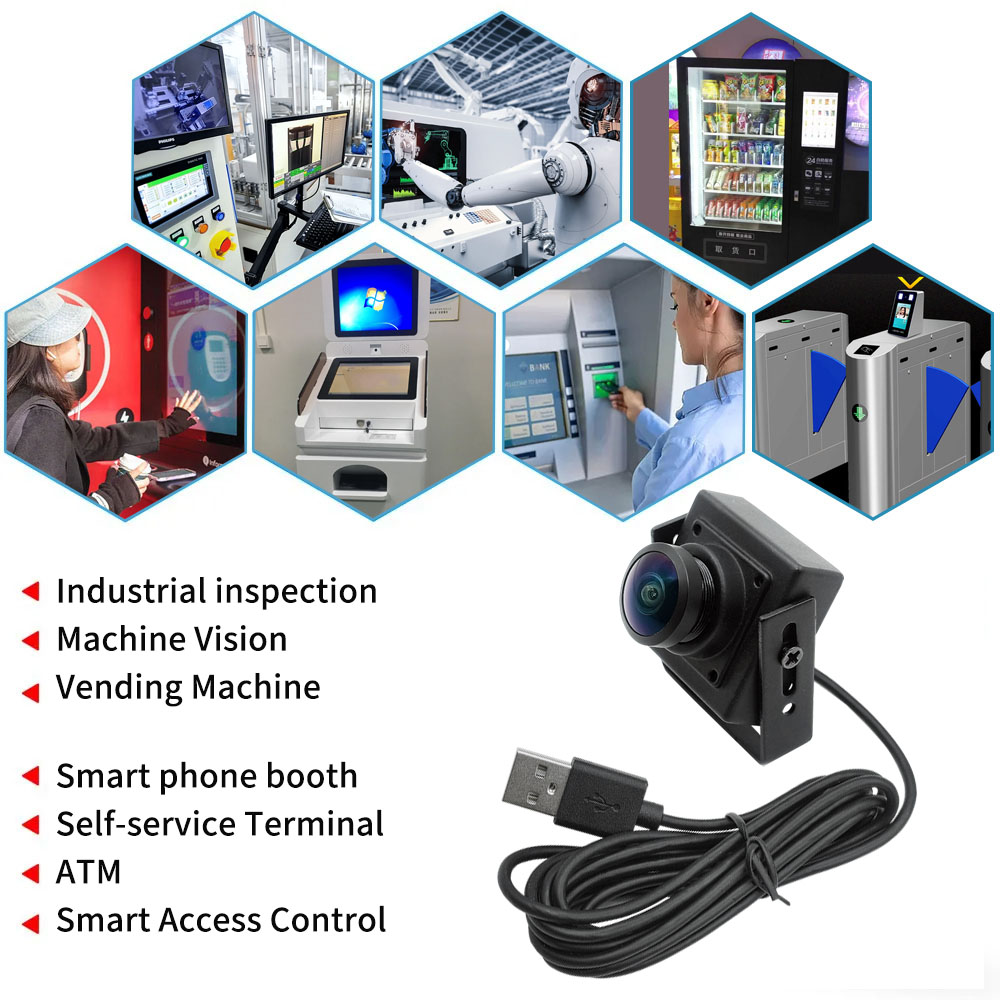

Application Scenarios
Ideal for machine vision and equipment monitoring in:
- ATM machines and banking equipment
- Medical testing and reporting systems
- Vending machines and digital signage
- Industrial automation (SMT machines, welding equipment)
- Security surveillance systems
- Law enforcement equipment
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type .
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP,16MP).
