Technical Specifications
| Specification | Details |
|---|---|
| Sensor | 1/2.9″ COMS |
| Resolution | 2MP (1920×1080) |
| Frame Rate | 30fps |
| Lens | Distortionless 3.6mm |

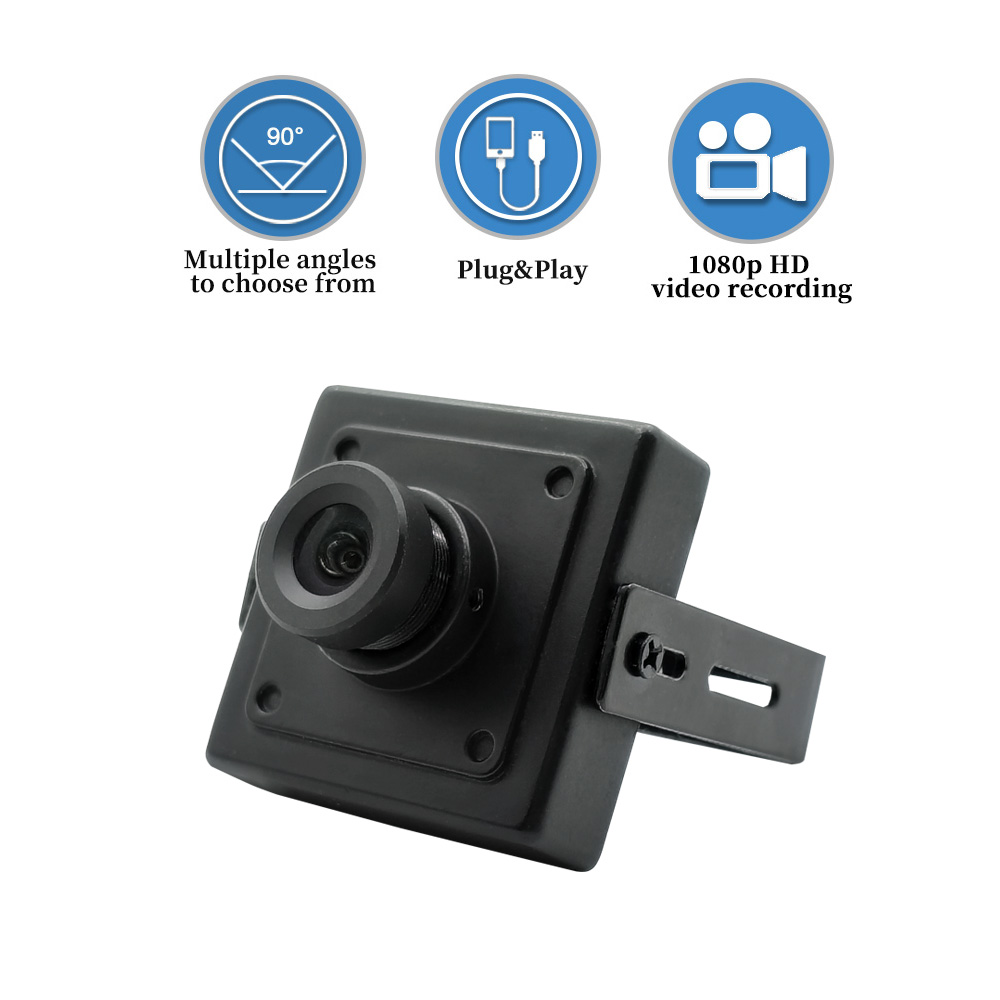

| FOV | 90° |
| Model No | HCU-FK352TPC |
| Distortion | <-1.0% |
| Interface | Type-C |
| Power | DC 5V, 0.25W consumption |
| Operating Temperature | <70°C |

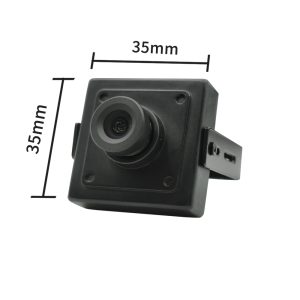

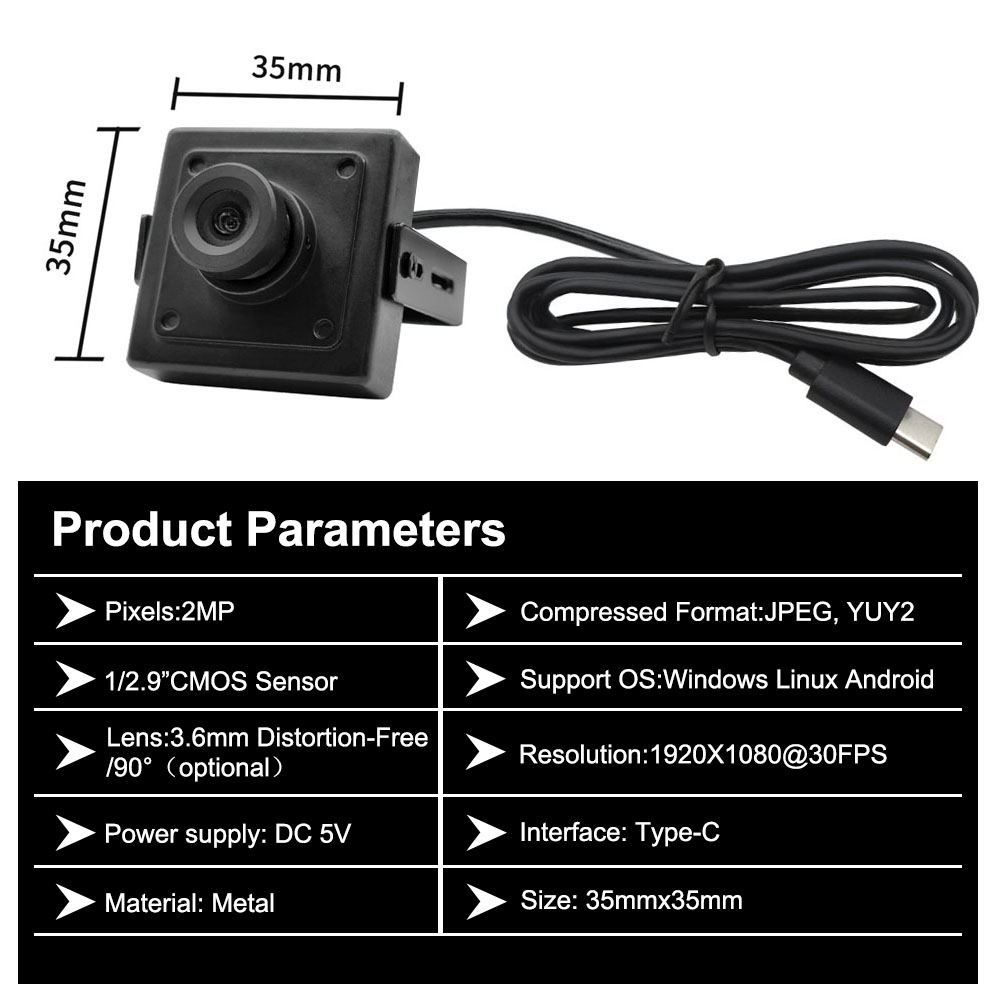

| Dimensions | 35mmx35mm |
| Supported OS | Windows/Mac OS/Linux/Android |
Key Features

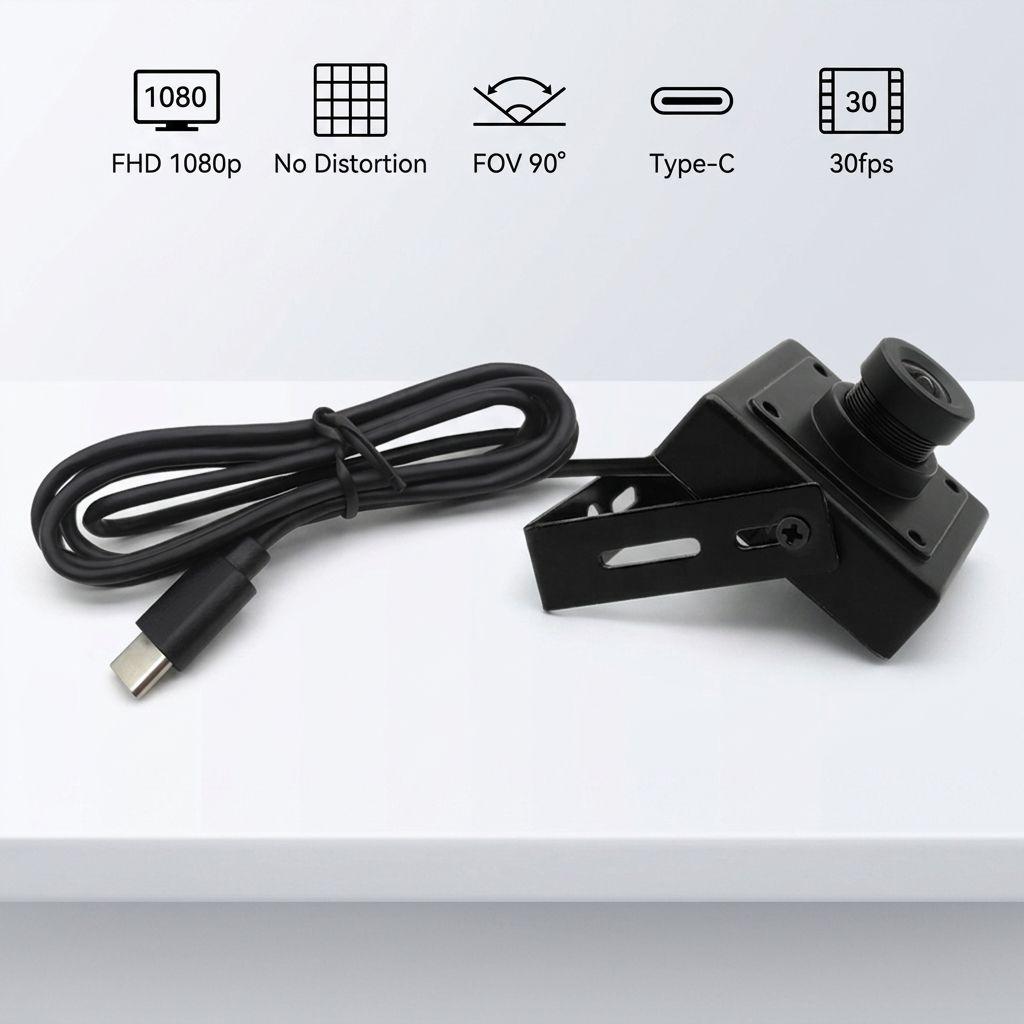

- 2MP high-definition imaging with 1080p resolution at 30fps
- Distortion-free lens with <1.0% distortion for accurate imaging
- Compact 35x35mm size ideal for space-constrained installations
- Type-C USB 2.0 interface for fast data transmission

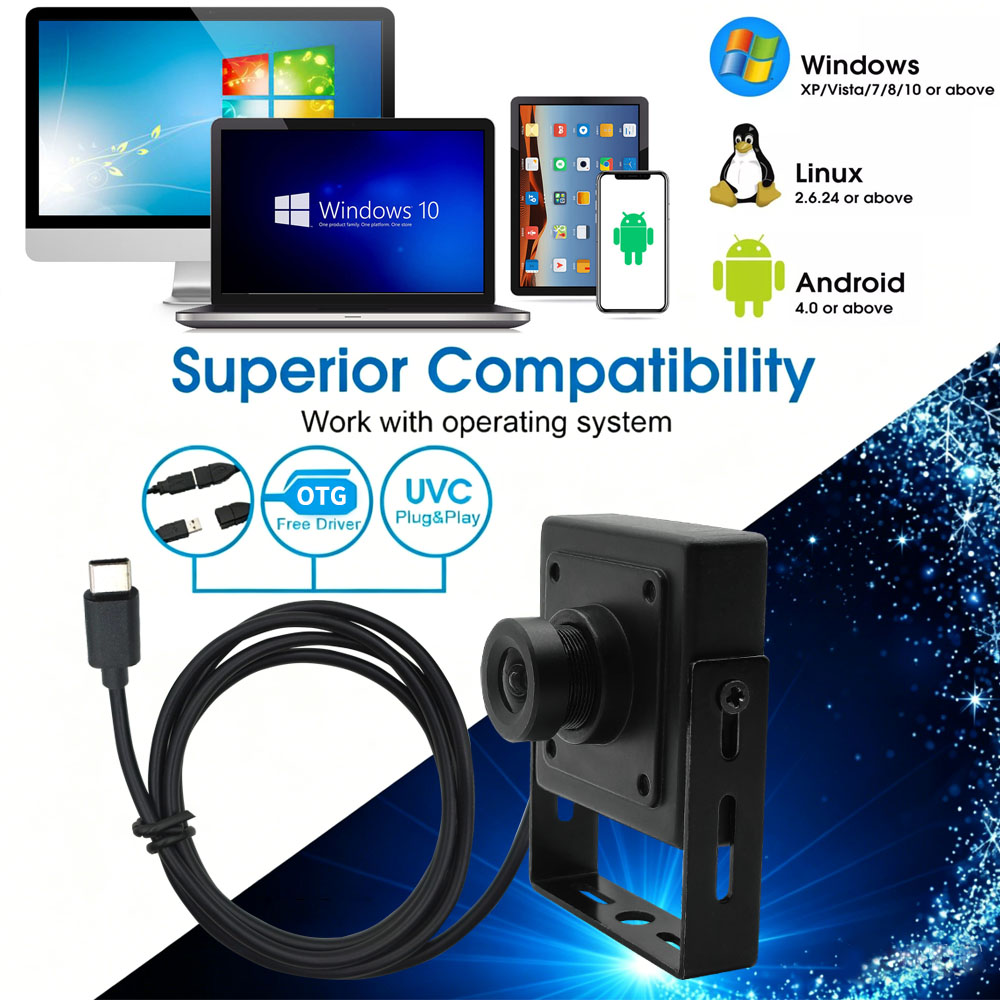

- Wide compatibility with Windows, Mac OS, Linux, and Android systems
- Plug-and-play operation with no driver installation required
Applications
This versatile camera module is designed for various industrial and commercial applications including:
- ATM machines and banking equipment
- Medical diagnostic and reporting systems
- Vending machines and digital signage
- Industrial automation and robotics
- Security and surveillance systems
- Machine vision and quality control
- Flame monitoring in industrial boilers
Customization Options
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type.
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP,16MP).
