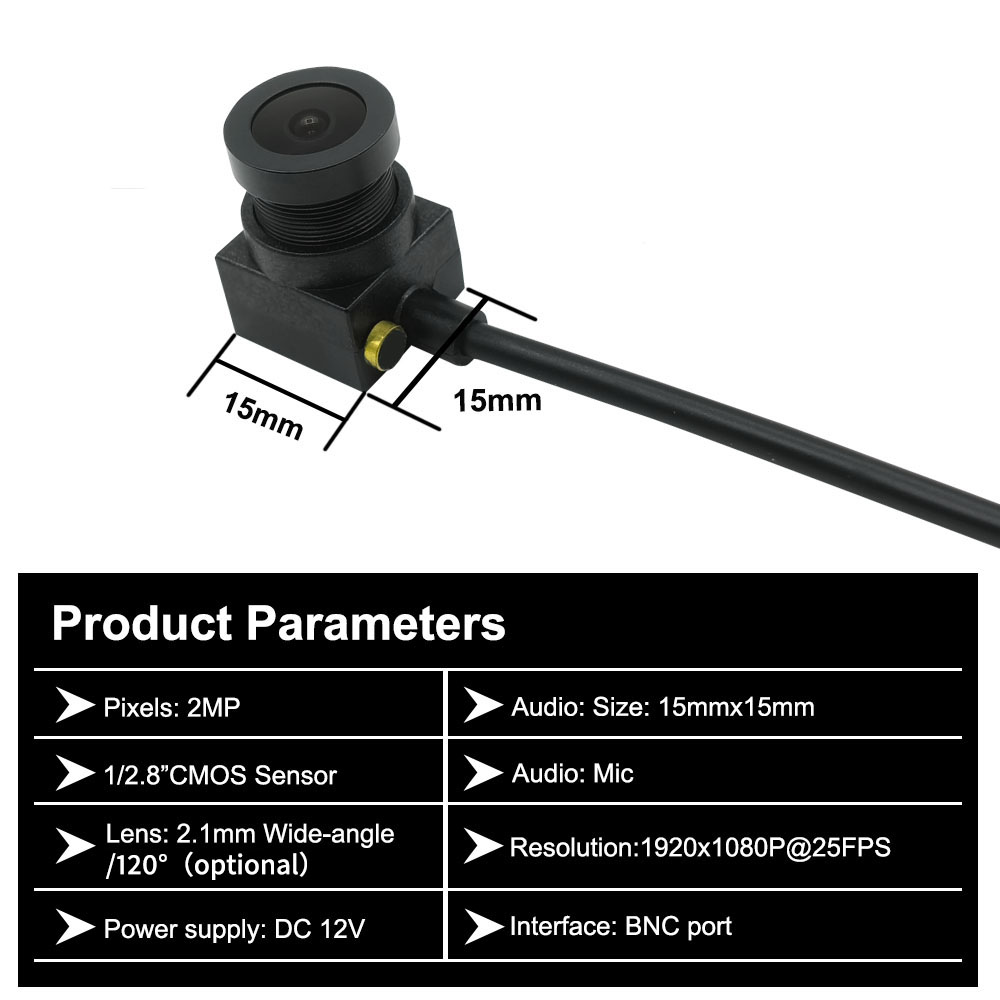

Technical Specifications
| Sensor | 1/2.8″CMOS |
|---|---|
| Pixel | 2MP |
| Signal | AHD |
| Frame rate | 1920×1080 25fps |
| Audio | Supported |
| Operating voltage | DC 3.3v |
| Product dimensions | 15mm×15mm |
| White balance | Automatic |
| Operating temperature | <70° |
| Power consumption | 0.25w |
| Model No | HCA-C152 |
| Interface type | BNC |
| Cable length | Default 1.2m |
| Lens | EFL:2.8mm F.ON:2.0 Angle:120° |

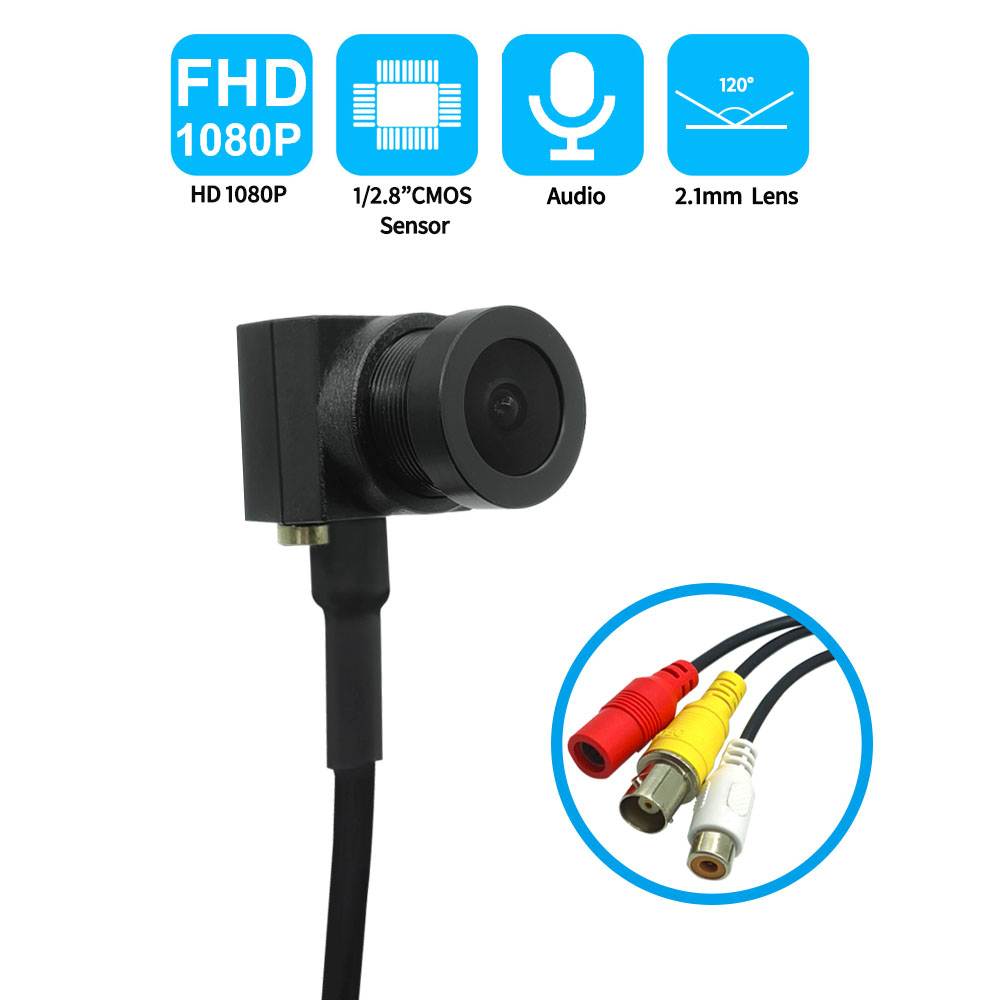

Key Features
- True 1080P high-definition picture quality: using AHD high-definition technology, providing clear and sharp video images.

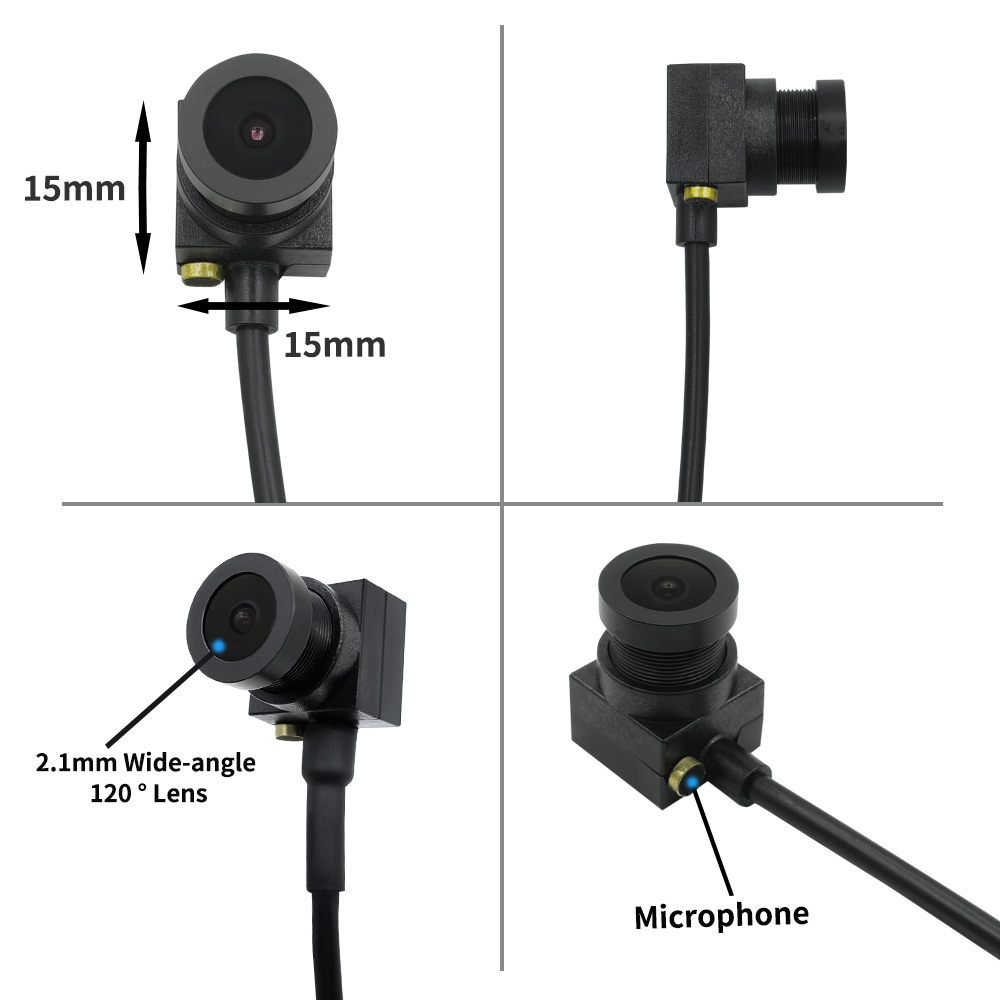

- Ultimate mini body: 15x15mm ultra small size, flexible and concealed installation, almost occupying no space.
- 120 ° wide angle field of view: The 2.1mm lens provides a wide viewing angle, wider coverage, and reduces blind spots.

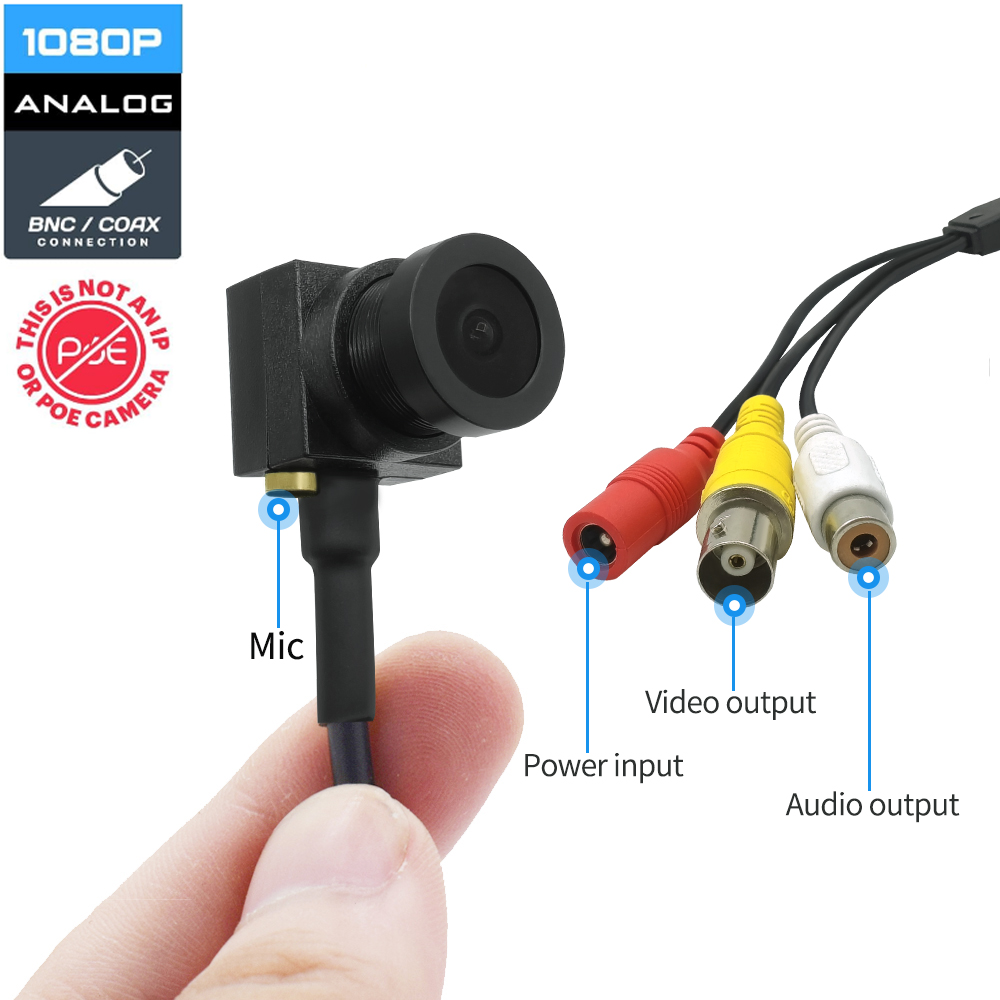

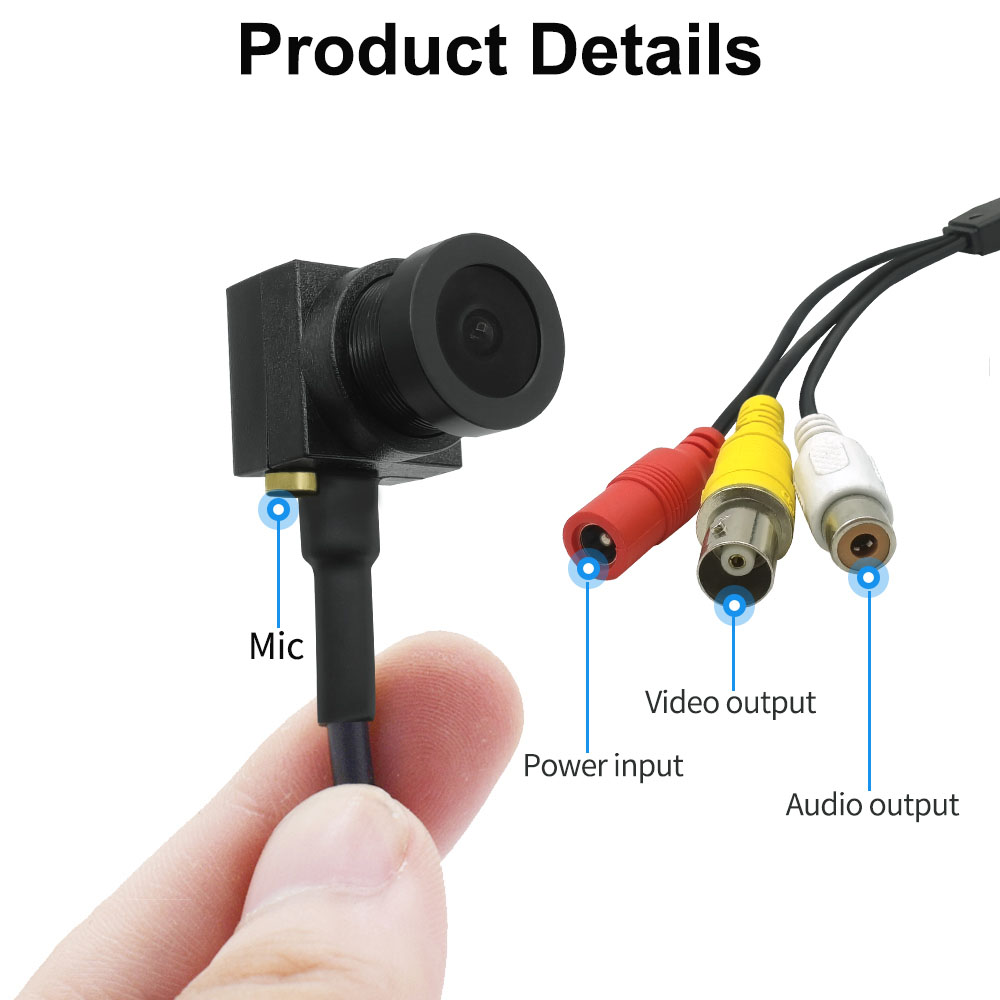

- Equipped with microphone: supports synchronous recording of environmental sound, achieving synchronous monitoring of audio and video.

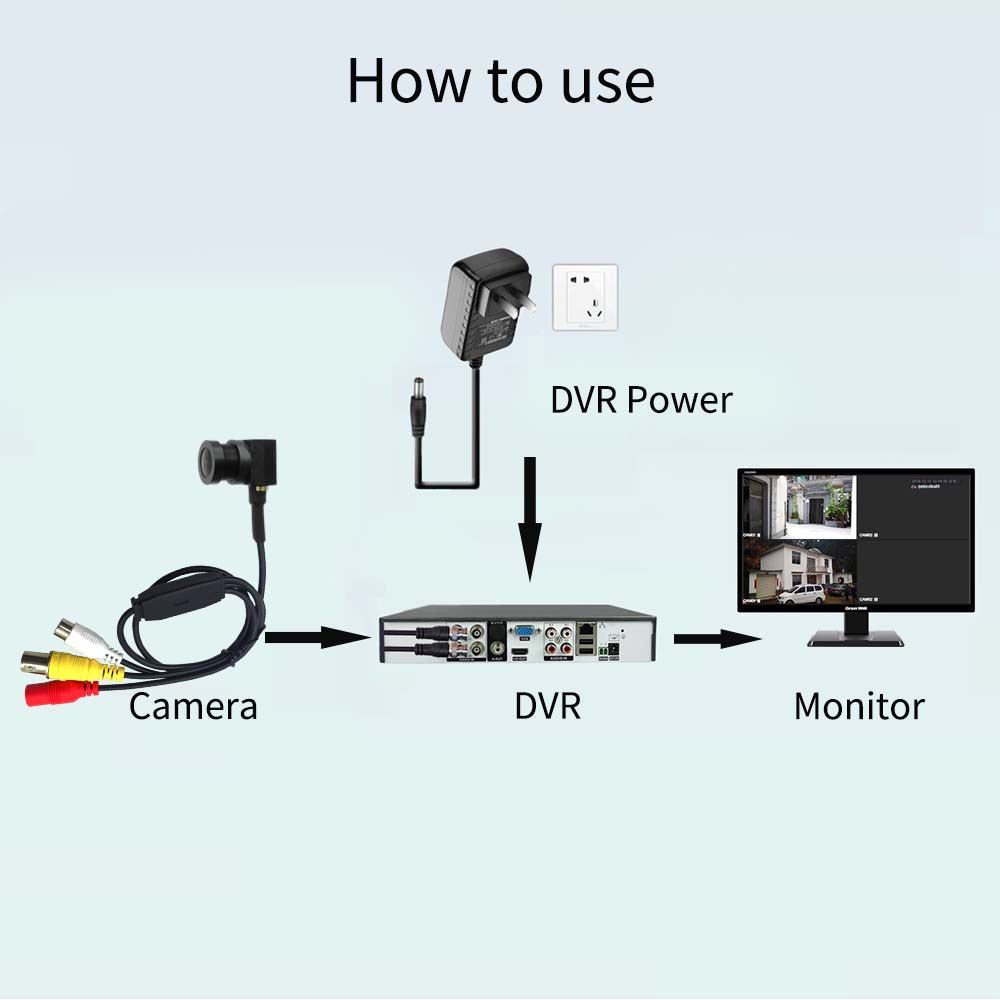

- Standard BNC interface: compatible with traditional coaxial cable systems, making it easy to connect to existing analog monitoring equipment.
- Strong compatibility: Supports AHD high-definition protocol and is compatible with mainstream AHD DVR recorders on the market.
Customization Services
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
- Lens customization: specific focal length, field of view angle, distortion control.
- Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
- Cable and Interface: Customize cable length and interface type.
- Pixel customization: Different resolution and frame rate models are available.
- Customized services: USB camera module, AHD camera module, CVBS camera module, wired network camera module, wireless wifi camera module, etc.
Application Fields
Industrial automation, machine vision, security monitoring, embedded access control systems, concealed surveillance, vehicle monitoring, smart home security, endoscope imaging, laboratory monitoring, DVR systems, traffic monitoring, retail terminals, drone/robot vision, education/conference systems, and various embedded visual solutions.
