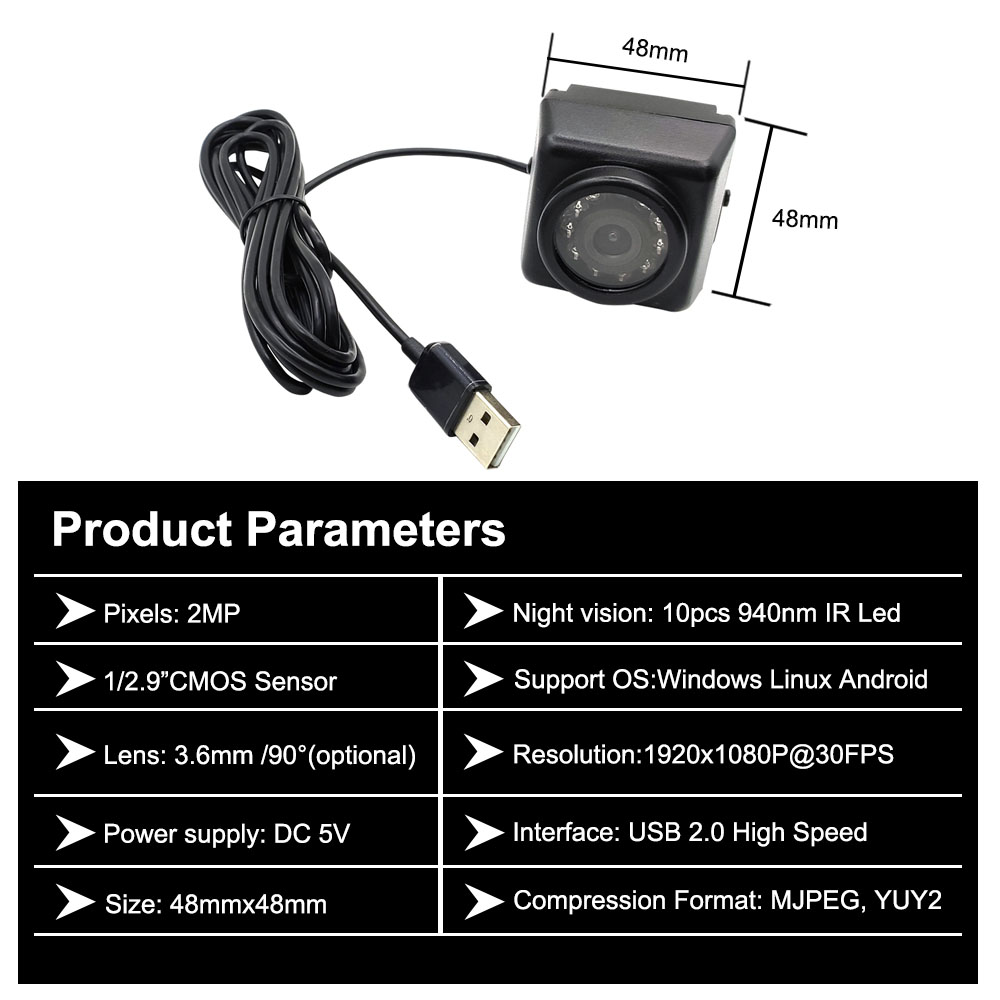

Specifications
| Sensor | 1/2.9″CMOS |
|---|---|
| Pixel | 2MP |
| Compression format | MJPG/YUV2 |
| Frame rate | 1920X1080@30fps |
| Audio | optional |
| Power frequency working voltage | DC 5V |
| Product size | 48mmx48mm |
| White balance | automatic |
| Working temperature | <70° |
| Power consumption | 0.25w |
| Model | HCU-CZ482 |
| Interface type | USB2.0 |
| Lens | 3.6mm |
| FOV | 90° |
| Night Vision | support(940 IR LED) |
| Support OS | Windows/Mac OS/Linux/Android |

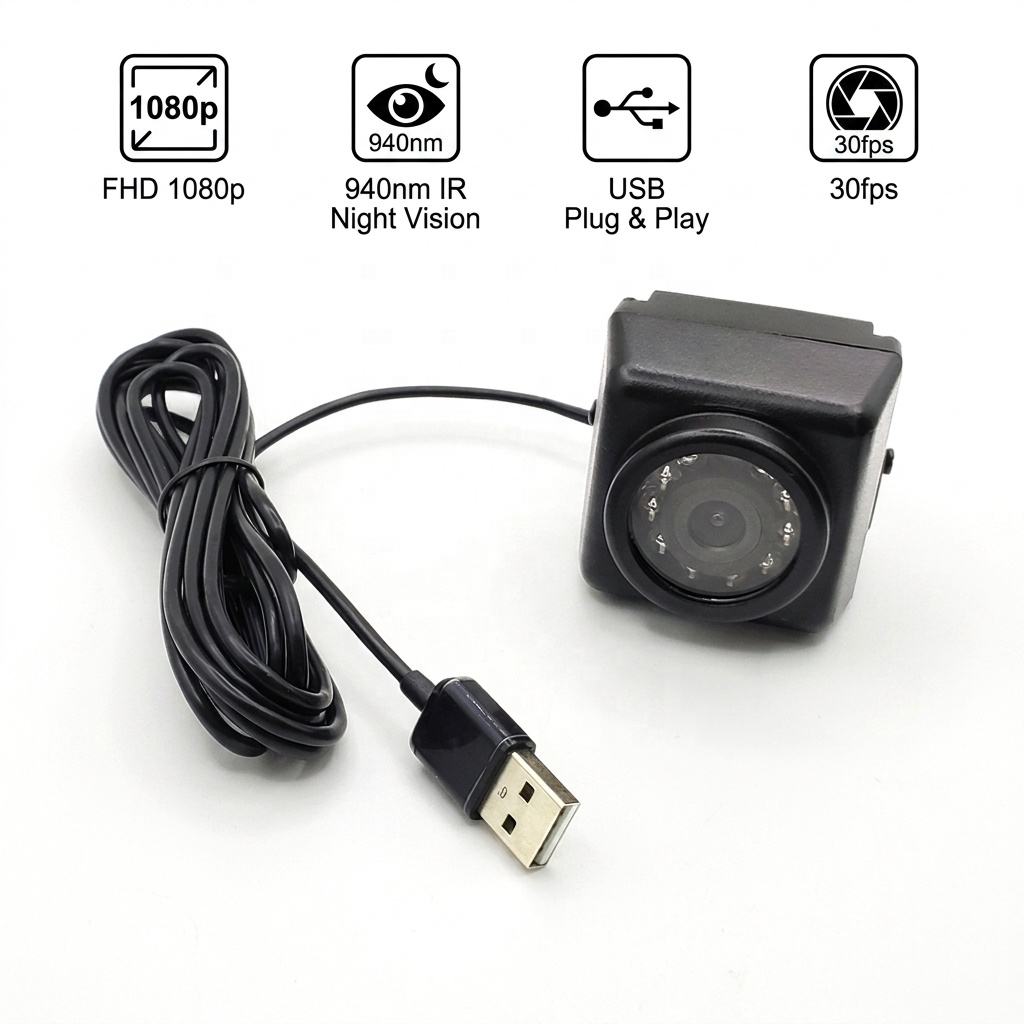

Core Features
High-definition imaging: 2-megapixel high-definition resolution of 1920×1080@30fps delivers exquisite image quality and accurately captures details.

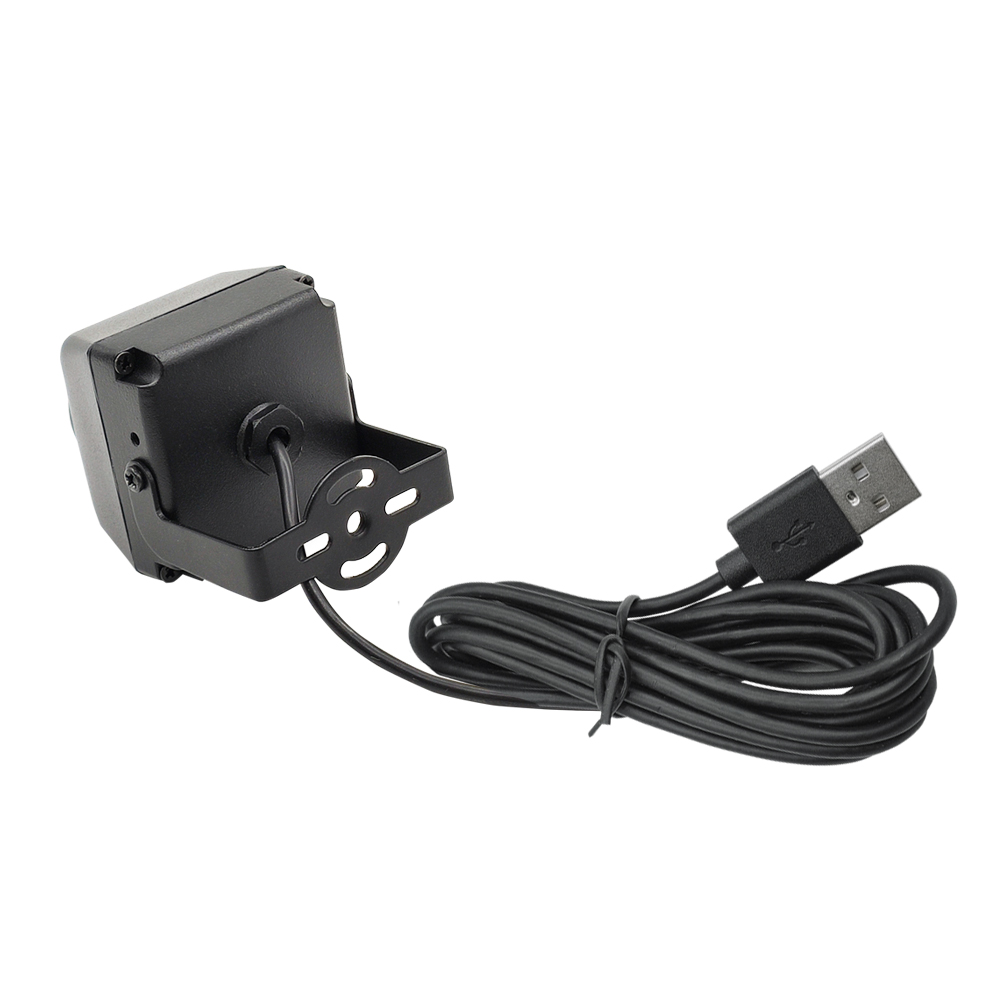

Industrial-grade protection: The 48x48mm square metal housing provides superior shock, dust, and impact protection, ensuring durability.
Plug and play: Plug and play via USB interface (or optional Type-C, OTG), compatible with multiple operating systems.
Flexible lens options: Supports various lens options to meet different working distances and field-of-view requirements.
Adjustable image parameters: Supports software adjustment of exposure, white balance, gain, contrast, and saturation.

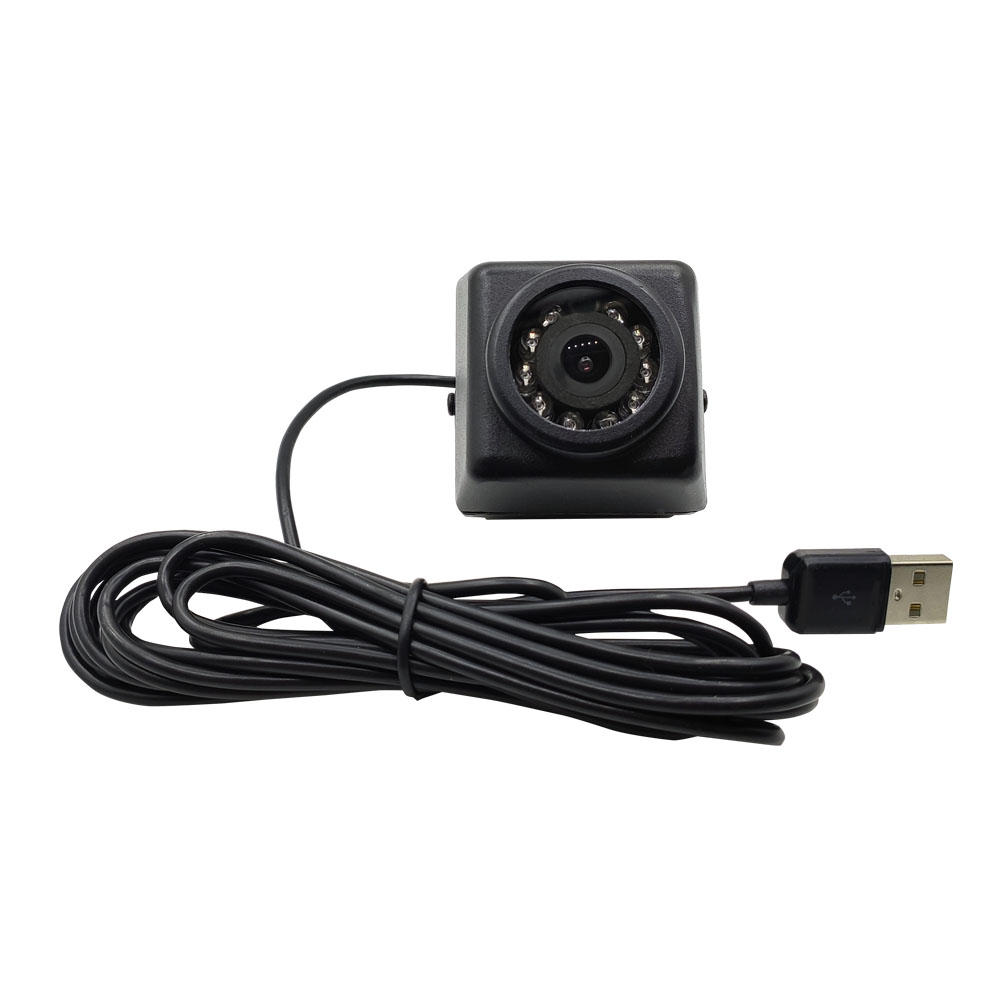

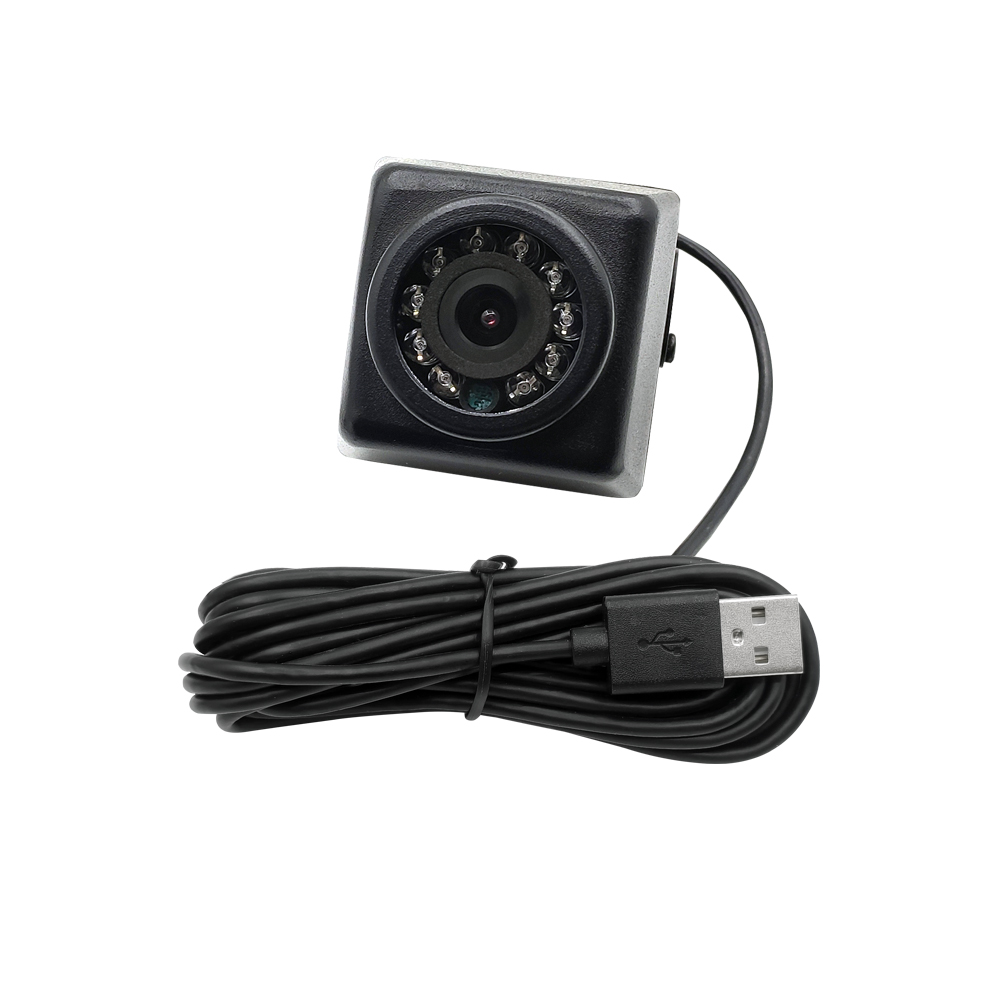

Night vision function: Built-in 10 940nm infrared LEDs enable clear nighttime recording through intelligent night vision.
Application Fields
This infrared car surveillance camera is widely adopted in:
Smart transportation projects
Fleet management companies
Ride-hailing and taxi compliance monitoring
Logistics trucks and cold-chain vehicles
School buses and passenger transport
Industrial machinery monitoring
Parking lot security systems
Police vehicle DVR solutions
OEM automotive manufacturing
Customization Options
- Lens customization: specific focal length, field of view angle, distortion control.
- Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
- Cable and Interface: Customize cable length and interface type.
- Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 8MP, 12MP,16MP).
