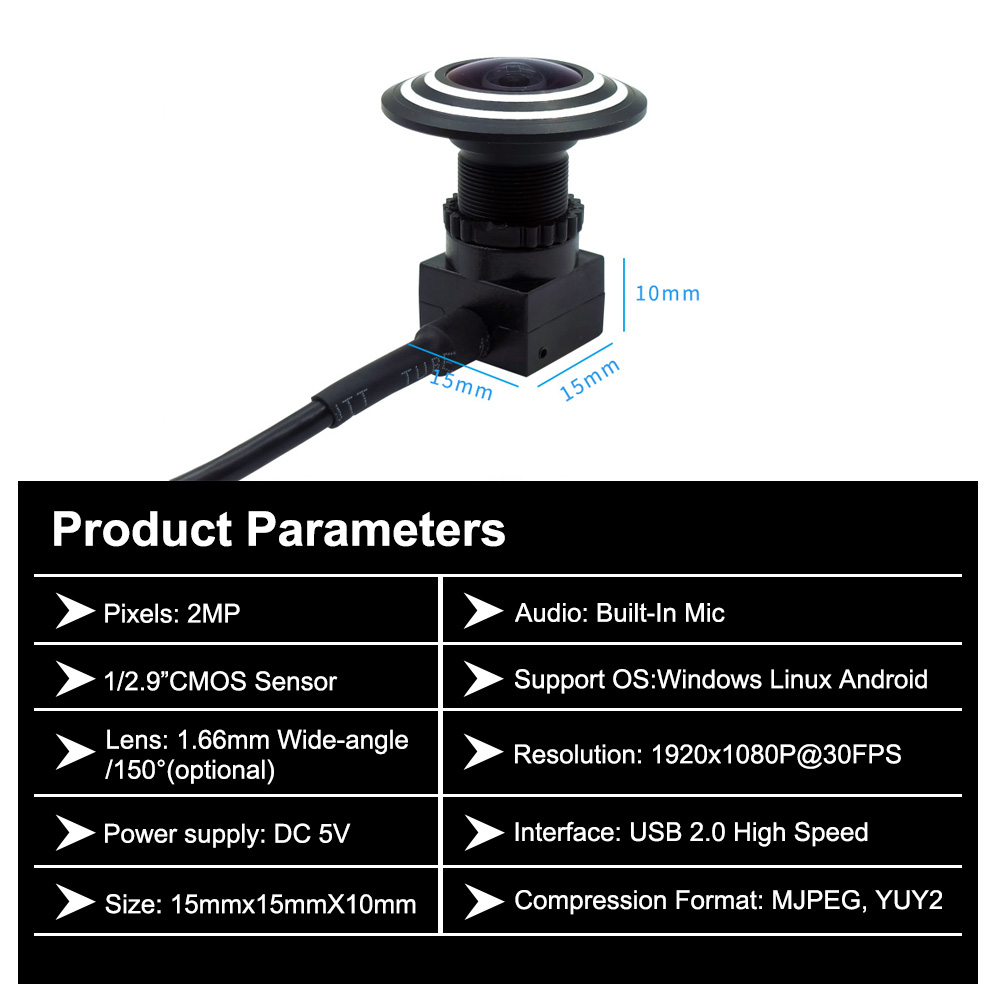

| Parameter | Value |
|---|---|
| Sensor | 1/2.9″CMOS |
| Resolution | 2MP |
| Frame Rate | 1920×1080 @ 30fps |
| Lens Specifications | 1.66mm |
| FOV | 150° |
| Interface | USB 2.0 |
| Power Consumption | 0.25W @ DC 5V |
| Operating Temperature | <70°C |
| Operating Systems | Windows/Mac OS/Linux/Android |
| Model Number | HCU-XMY152 |

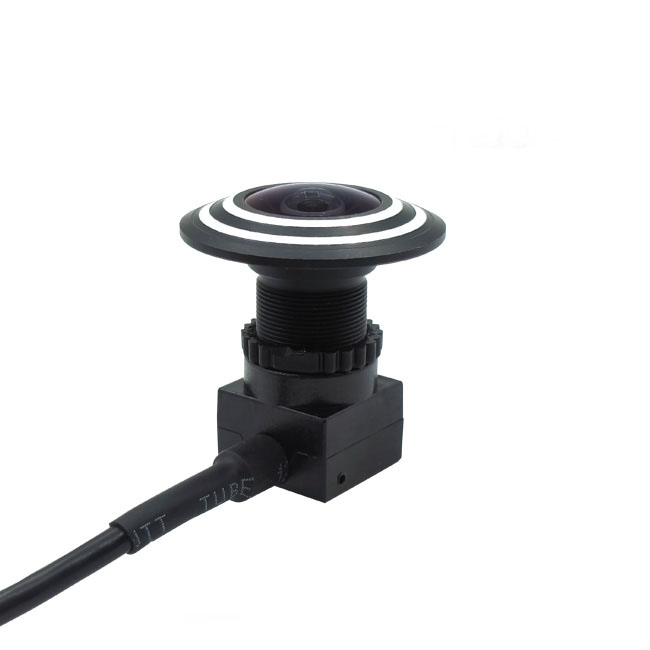

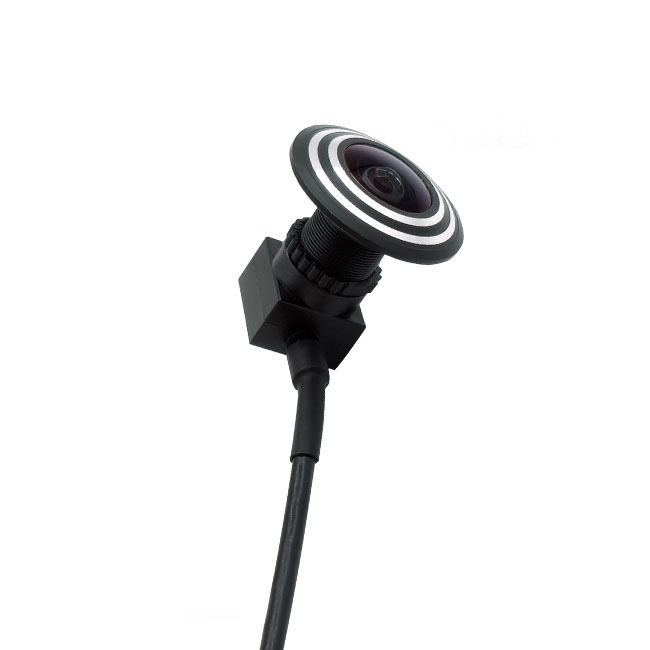

1.66mm Wide-Angle Fisheye Lens: The advanced 1.66mm fisheye lens optical design provides a 150° field of view for maximum coverage, making it particularly suitable for applications requiring a single camera to capture a large area, such as smart doorbells, security monitoring, self-service terminals, and indoor robot navigation.

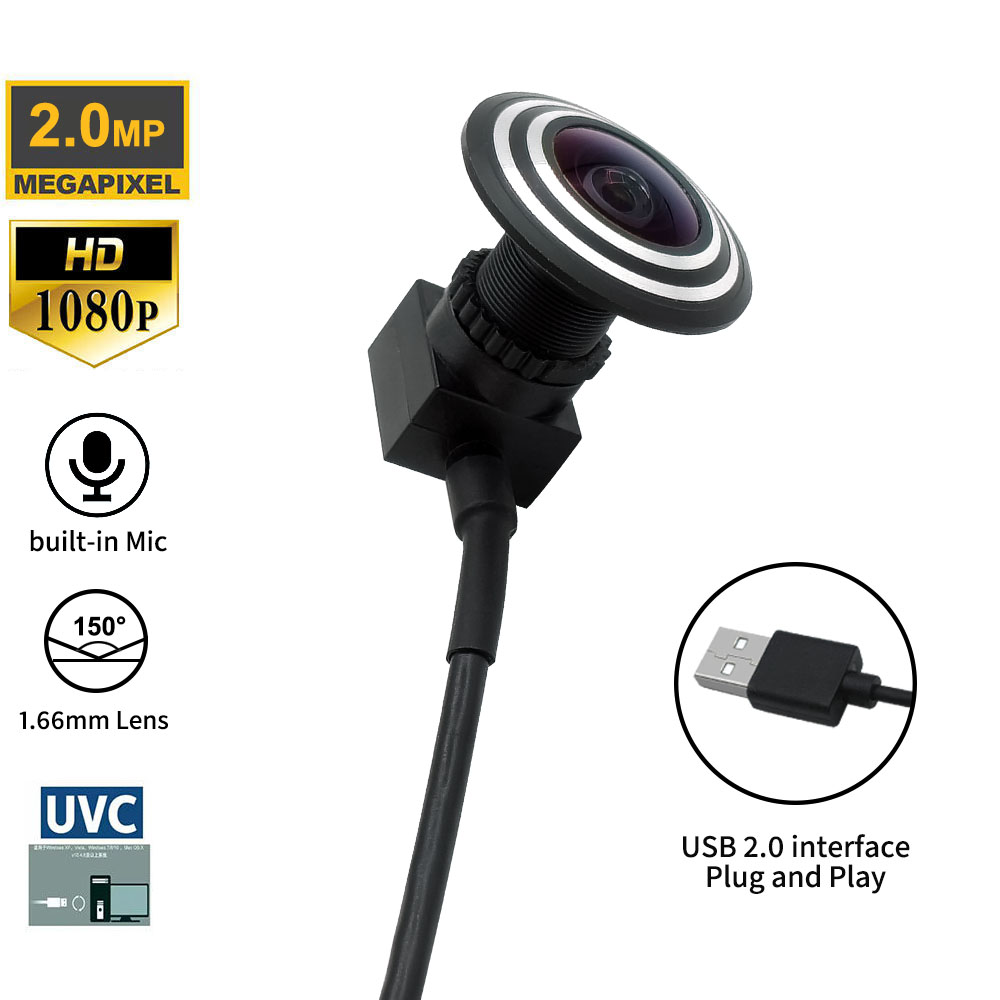

Full HD 1080P Resolution: Equipped with a 2-megapixel CMOS image sensor, this module outputs 1080P @ 30fps video, delivering clear details, high color accuracy, and excellent performance.

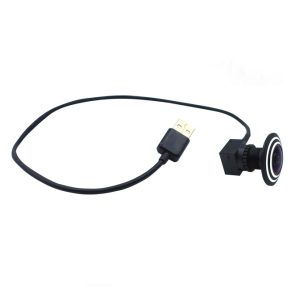

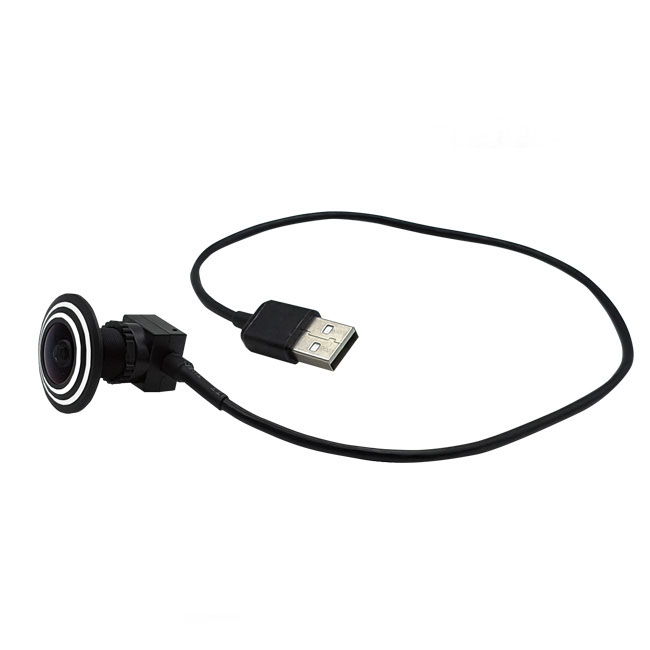

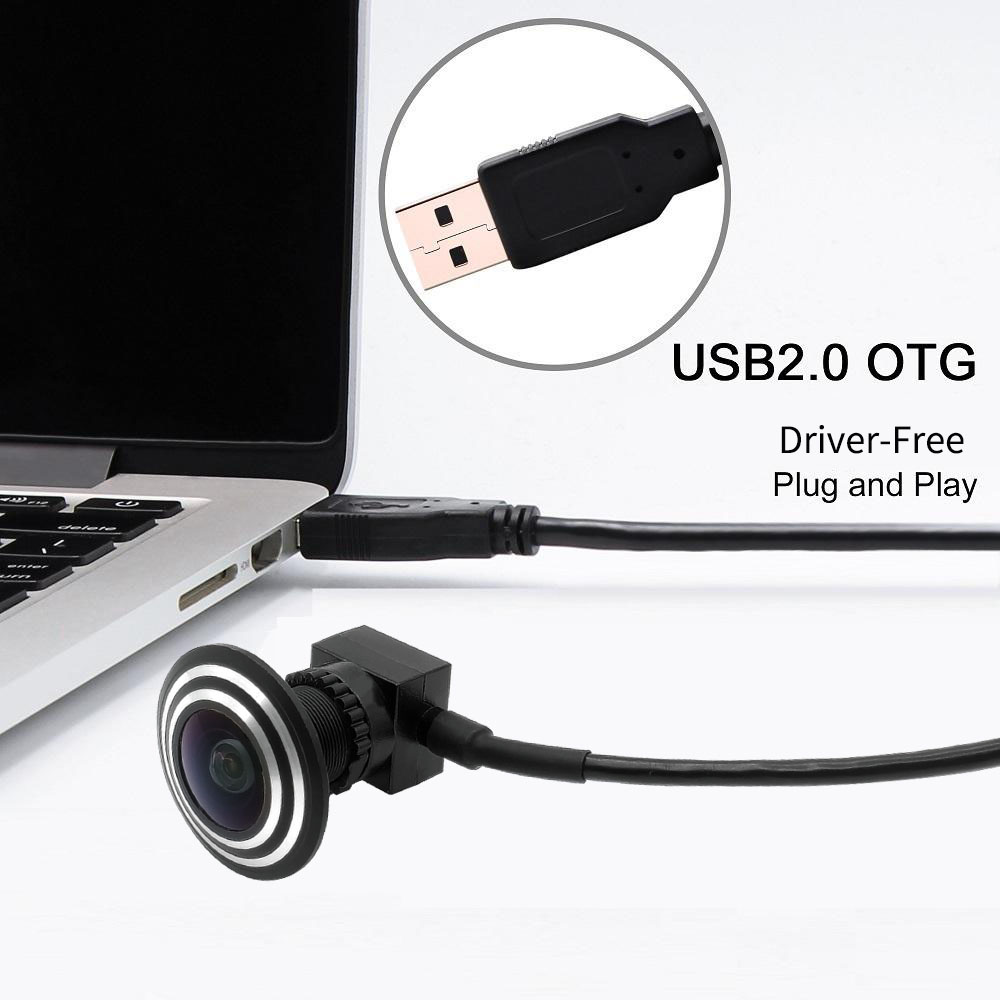

USB Plug and Play (UVC Compliant): This module offers USB 2.0 / USB-A / USB-C interfaces and adopts the industry-standard UVC protocol, allowing for seamless integration without driver installation on embedded platforms such as Windows, Linux, Android, macOS, and industrial PCs.
Excellent low-light performance: Even in low-light conditions of 0.01 Lux, this camera provides stable imaging, making it suitable for surveillance, machine vision, and facial recognition terminals.
OEM/ODM customization support: Customization is available for lenses, cable lengths, housing designs, field of view, and packaging logos.
Applications
- Kiosk systems / payment terminals
- Smart doorbells / cat-eye door viewer
- Industrial robot navigation
- Attendance & access control systems
- Machine vision inspection
- Wide-angle indoor monitoring
- ATM and banking systems
- Medical equipment and hospital systems
- Industrial automation (SMT, welding, robotics)
- Flame monitoring in power plants
