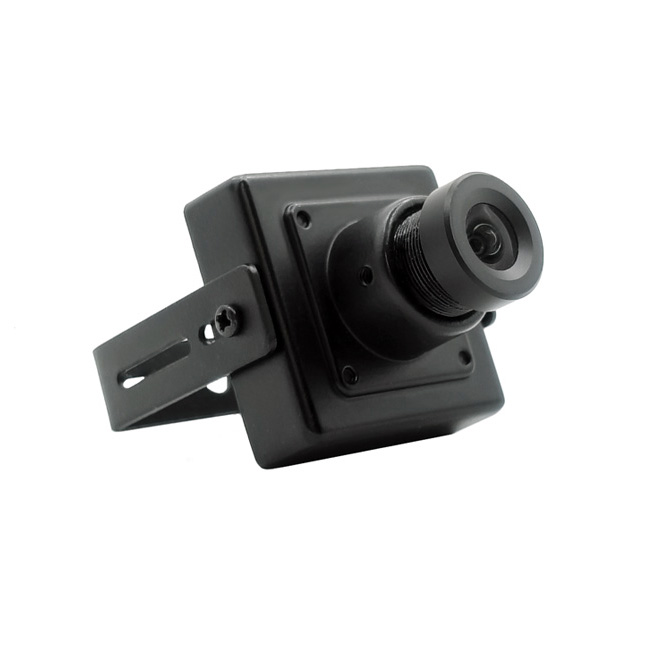

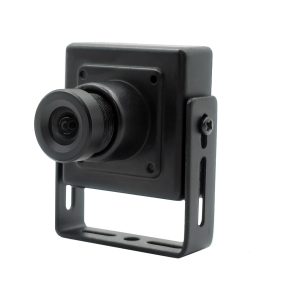

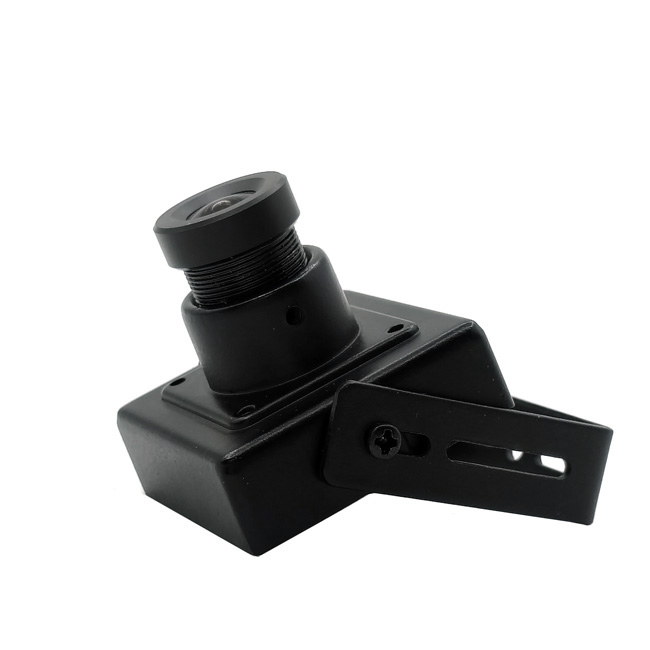

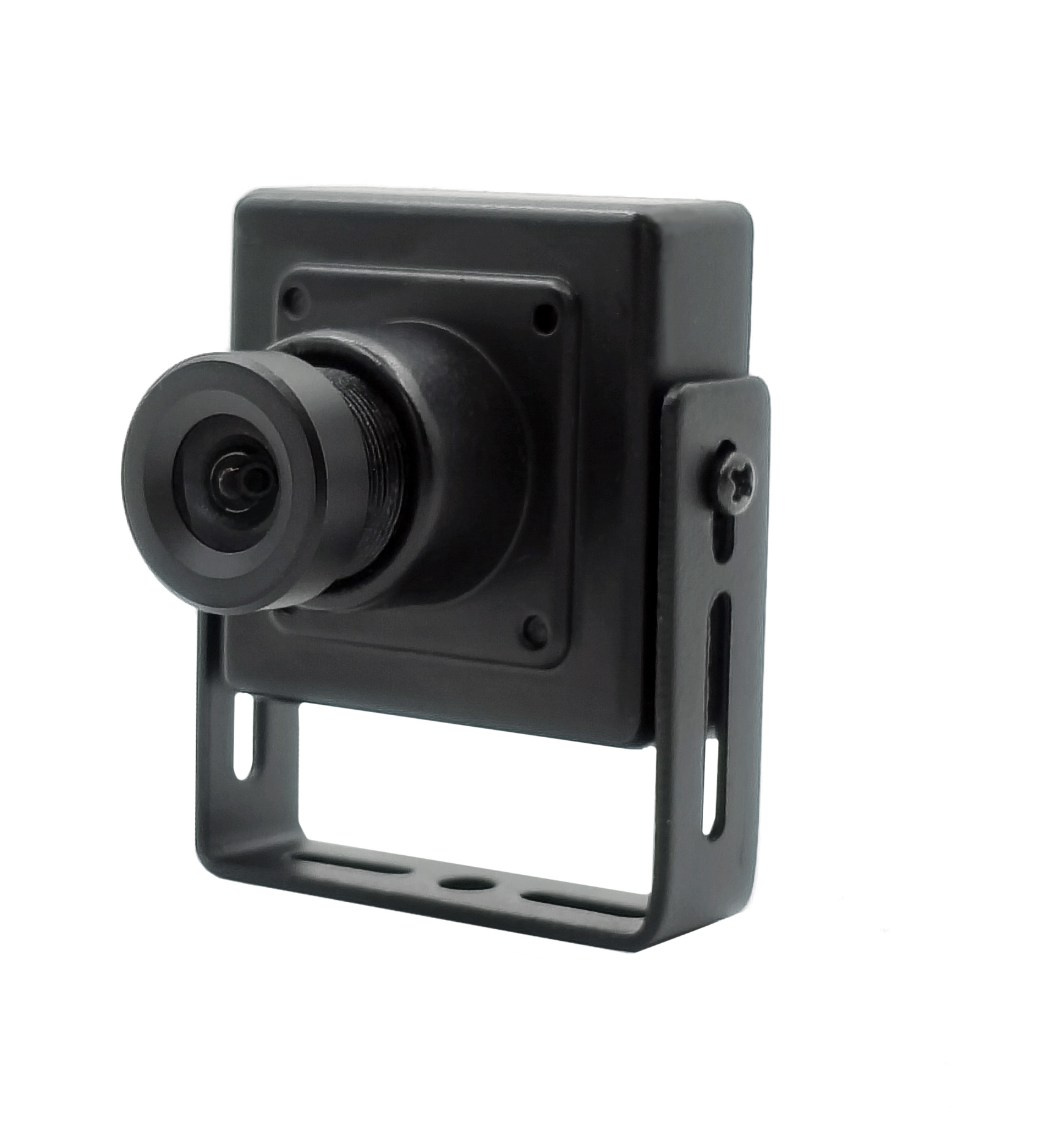

Name: 1/3" CCD 700TVL Black And White CCD Mini Square Camera
Brand: HCVSIGHT
SKU: 4109
Availability: InStock

1/3″ CCD 700TVL Black And White CCD Mini Square Camera

$28.39

This professional grade black and white CCD mini camera is designed specifically for ATMs, self-service kiosks, and other financial self-service devices. Using a 1/3-inch high-performance CCD sensor, it provides 700TVL ultra-high resolution black and white image output, which can present clear and delicate monitoring images even in extremely low light environments. The product adopts a compact square design of 30 × 30mm, equipped with a professional BNC video interface and a 3.6mm lens, which can be directly integrated into the limited space of various financial devices. The CCD sensor optimized for black and white imaging has removed the infrared filter and combined with automatic gain control and digital noise reduction technology to ensure optimal imaging results under various lighting conditions.

Technical Specifications

Sensor	1/3″CCD
Resolution	0.3MP
Signal Type	CVBS
Frame Rate	537X597 50fps
Power	DC 12v, 0.25w consumption

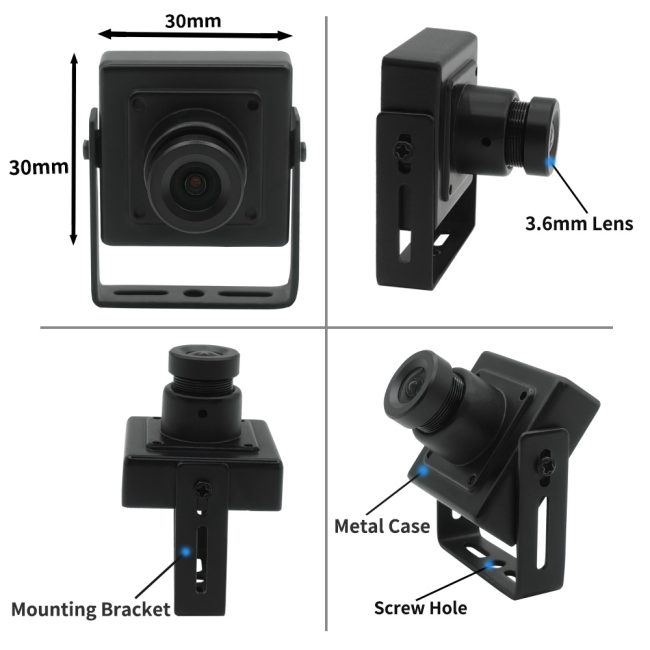

Dimensions	30mm×30mm
Operating Temp	<70°C
Lens	3.6mm
Viewing Angle	90°

Key Features

High resolution output: 700TVL horizontal resolution, providing far superior detail expression than ordinary cameras.
Professional CCD sensor: 1/3-inch black and white CCD, highly sensitive to infrared light, no color filter light loss.
Automatic gain control: Intelligent AGC function automatically adjusts signal strength to optimize image quality under different lighting conditions.
Compact metal shell: 30 × 30mm square design, all metal structure provides good heat dissipation.

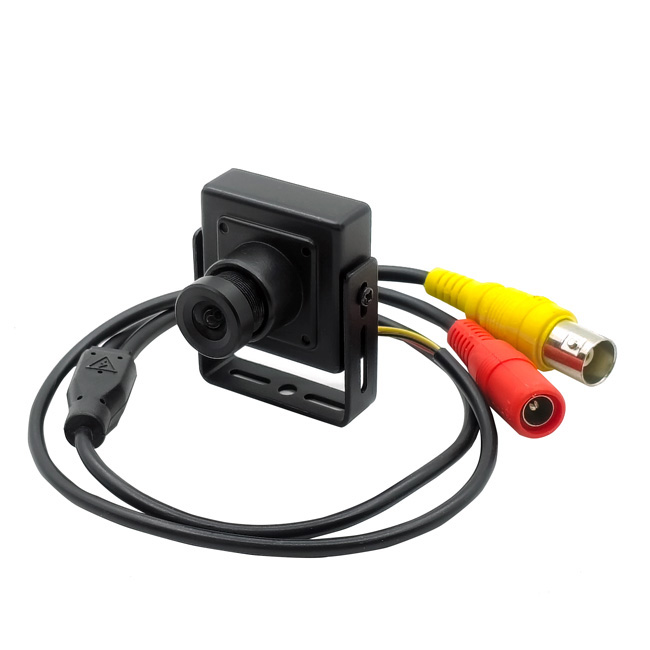

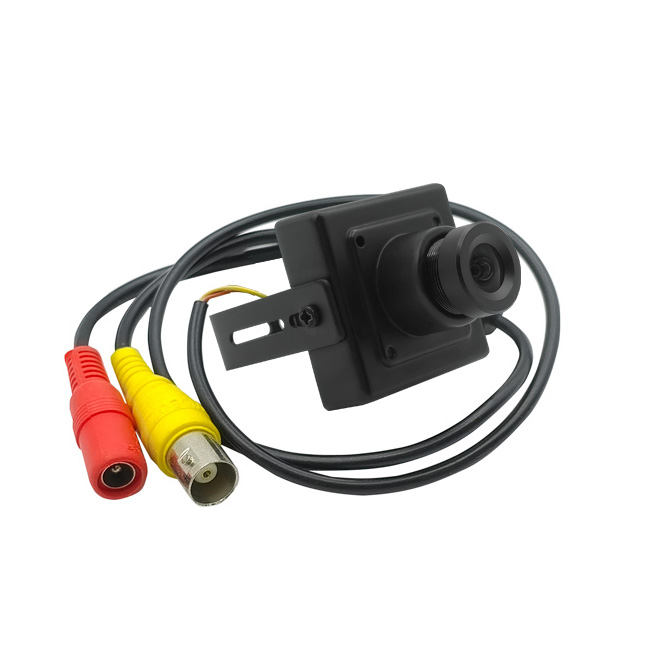

Professional video interface: BNC interface ensures stable transmission of video signals and strong anti-interference ability.
Wide voltage adaptation: DC12V wide voltage input, suitable for various power supply environments.
Anti vibration design: specifically optimized for ATM machine vibration environment to ensure long-term stable operation.

Application Scenarios

Ideal for machine vision and equipment monitoring including:

ATM machines and banking equipment
Medical diagnostic and queuing systems
Vending machines and digital signage
Industrial automation (welding, robotics, etc.)
Security surveillance and flame monitoring

Customization

We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.

1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type (such as USB and Android).
4. Pixel customization: Different resolution and frame rate models are available.
