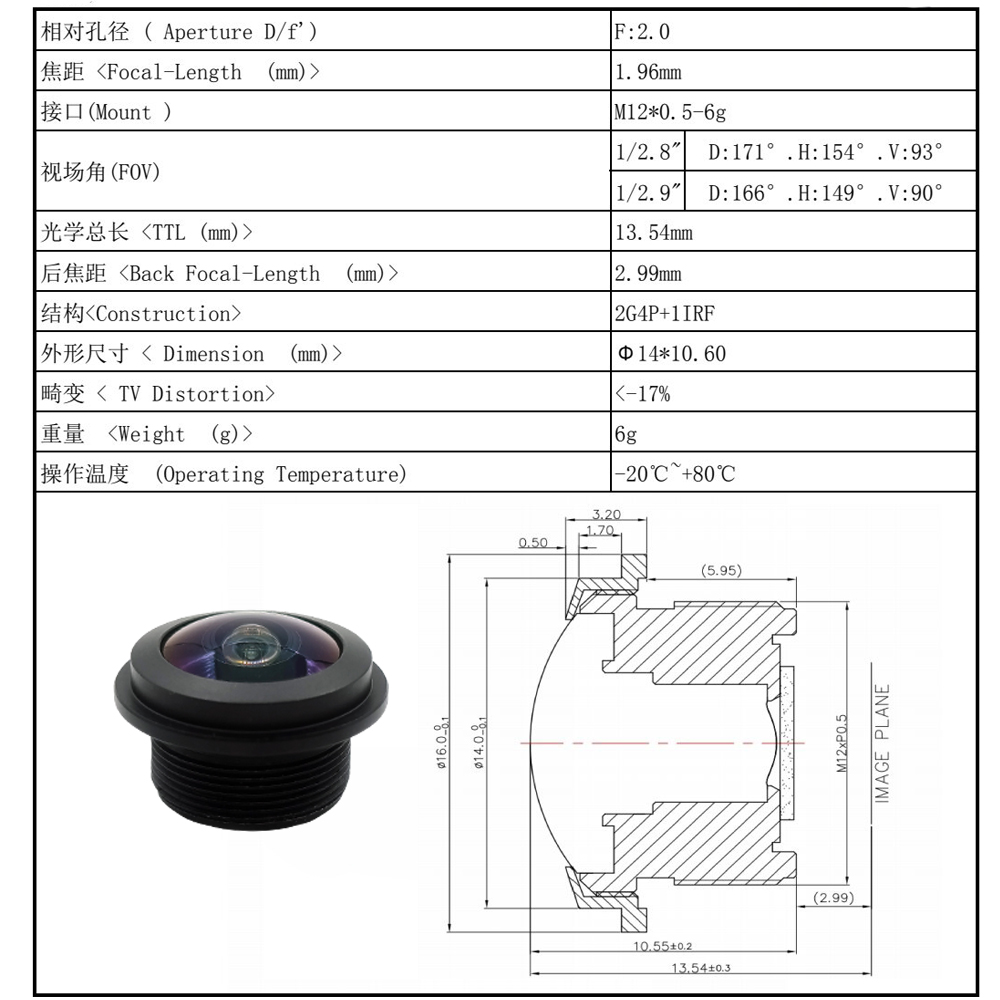

| Parameter | Value |
|---|---|
| TTL | 13.54 |
| EFL | 1.96mm |
| F/NO | 2.0 |
| BFL | 2.99mm |
| Dimension | 14×10.60mm |
| MAX IMAGE CIRCLE | 6.1 |
| MAX FOV | 170° |
| Construction | 2G4P+1IRF |
| Sensor size | 1/2.8″ |
| Distortion | <-17% |
| Viewing Angle | 150° |
| Operation temperature | -20℃~+80℃ |
| Thread Size | M12XP0.5 |

$3.39

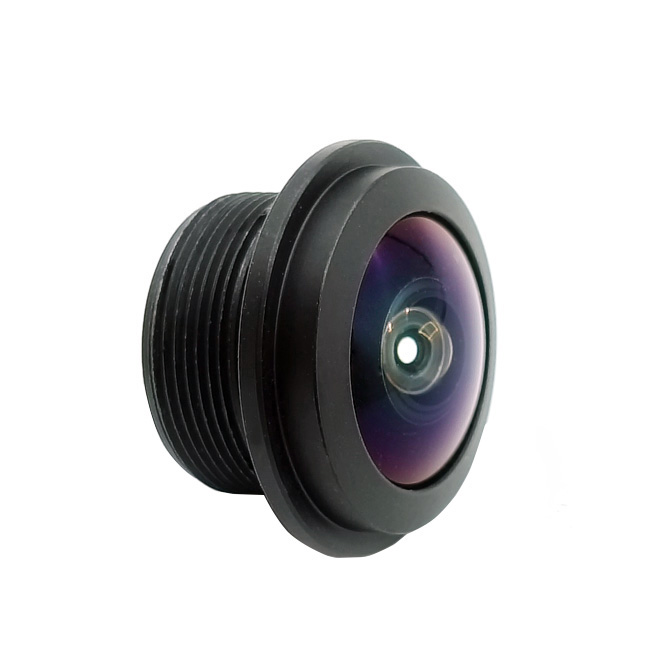

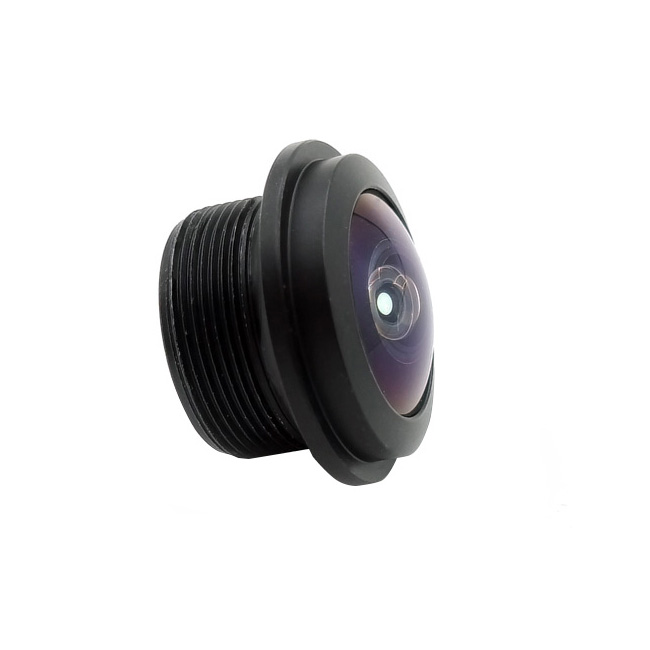

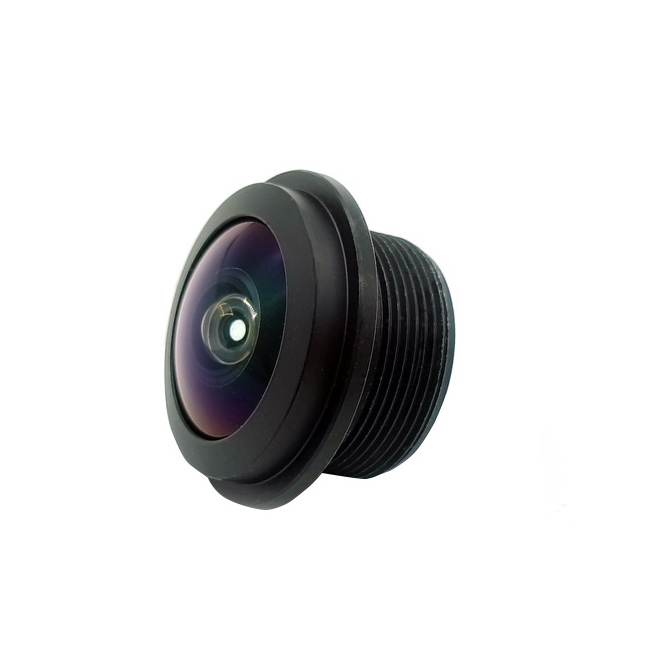

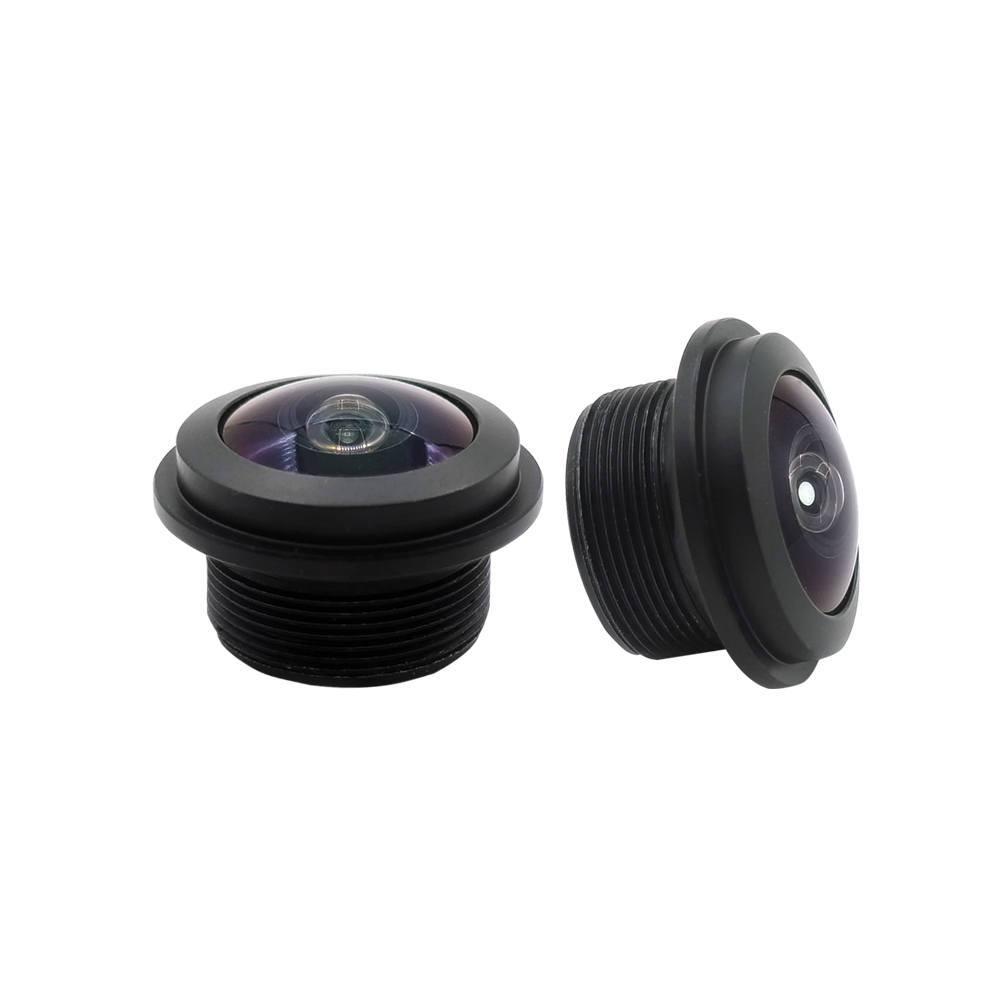

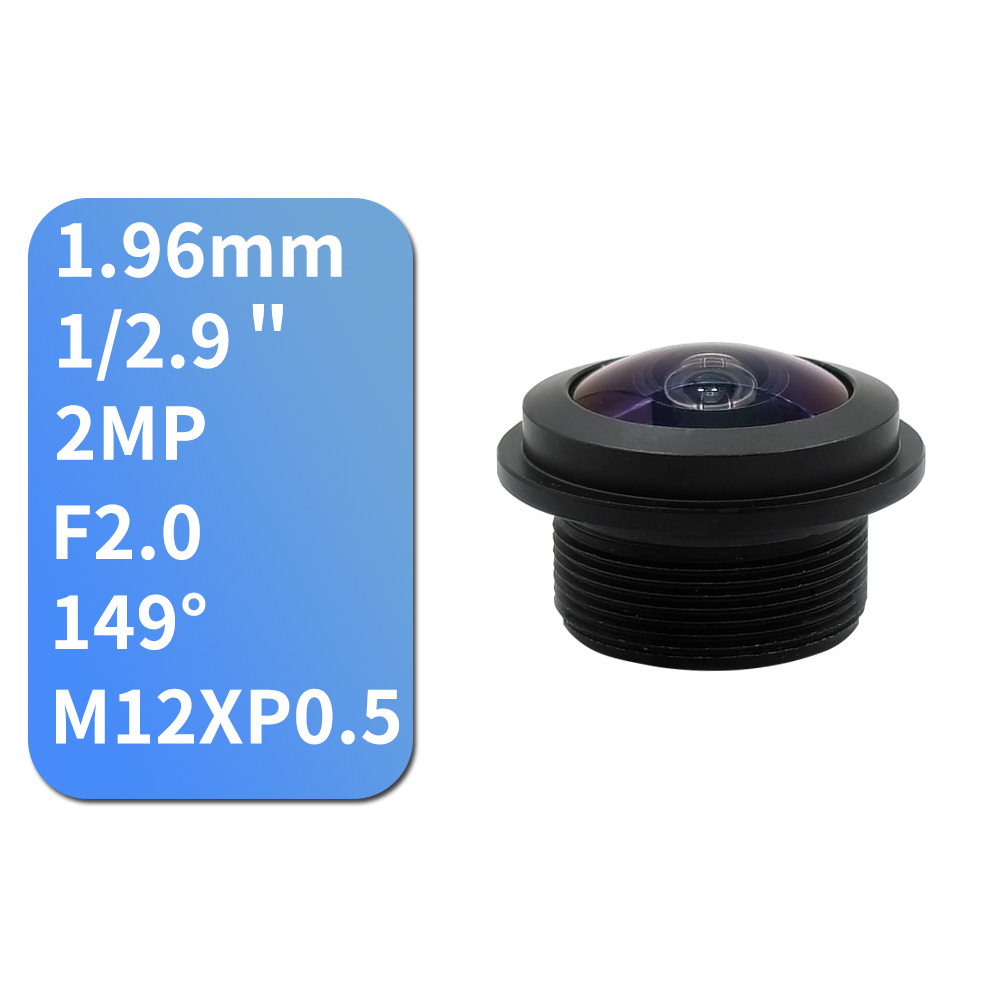

This 2-megapixel high-definition waterproof fisheye lens camera is a professional level security monitoring device, equipped with an advanced 1/2.8-inch CMOS image sensor, a 150 ° ultra wide angle M12 fisheye lens, and an IP67 waterproof housing. The product supports 1080P full HD video output and provides panoramic monitoring coverage capability. A single device can replace the traditional combination of multiple cameras, greatly reducing the complexity and cost of the monitoring system. The ultra wide viewing angle is particularly suitable for places that require large-scale monitoring. The built-in fisheye correction algorithm can provide multiple viewing angle modes to meet the monitoring needs of different scenes.
| Parameter | Value |
|---|---|
| TTL | 13.54 |
| EFL | 1.96mm |
| F/NO | 2.0 |
| BFL | 2.99mm |
| Dimension | 14×10.60mm |
| MAX IMAGE CIRCLE | 6.1 |
| MAX FOV | 170° |
| Construction | 2G4P+1IRF |
| Sensor size | 1/2.8″ |
| Distortion | <-17% |
| Viewing Angle | 150° |
| Operation temperature | -20℃~+80℃ |
| Thread Size | M12XP0.5 |
